Grinder definition

A grinder is a machine tool that processes the surface of a workpiece using a tool (called a lapping plate or grinding wheel) coated or embedded with abrasive material. Its primary purpose is to achieve high-precision machining of flat surfaces, internal and external cylindrical surfaces, conical surfaces, spherical surfaces, threaded surfaces, and other complex profiles, enabling the single-sided grinding and polishing of materials to achieve exceptional dimensional accuracy, geometric shape perfection, and surface smoothness.

Core Functionality: Precision Through Abrasion
The fundamental operation of a grinder revolves around its core function: utilizing the mechanical action of abrasives to remove material. This is achieved through a high-speed rotating grinding wheel, abrasive belt, or a lapping plate embedded with abrasive particles. As these abrasive tools make contact with the workpiece (typically made of metal, stone, ceramics, glass, or certain plastics), they perform several critical tasks:

• Cutting: The sharp edges of the abrasive grains act like microscopic cutting tools, shearing away tiny chips of material. This is essential for shaping the workpiece to precise dimensions and forms.
• Grinding: This involves a combination of cutting and ploughing actions by the abrasives, progressively removing material to refine the surface and achieve the required geometry. It’s the primary process for dimensional accuracy.
• Polishing: As the abrasive grains become finer or the process continues, the cutting action diminishes, and a smoothing or polishing action dominates. This significantly reduces surface roughness, creating a smooth, often reflective finish by leveling microscopic peaks and valleys.
• Material Removal & Refinement: Beyond surface finishing, grinders are crucial for reducing the size of bulk materials (like ores or pigments) or refining powders to specific particle sizes through crushing and attrition.

The combined effect of these actions allows grinders to produce surfaces with tolerances measured in microns (millionths of a meter) and surface finishes that are extremely smooth, far exceeding what is typically achievable with conventional machining processes like milling or turning. This precision machining capability is indispensable in industries where component performance, fit, longevity, or appearance are critical.

Widespread Applications Across Industries
Grinders are not confined to a single sector; their ability to deliver precision and surface refinement makes them vital across a diverse range of fields:

1. Industrial Manufacturing & Metalworking: This is the most extensive application area. Grinders are fundamental for:
   • Precision Component Finishing: Achieving the exact dimensions and ultra-smooth surfaces required for critical parts like engine blocks, cylinder heads, transmission gears, ball and roller bearings, shafts, hydraulic components, and precision molds. This ensures proper fit, reduces friction, minimizes wear, and prevents premature failure.
   • Surface Preparation: Removing rust, scale, weld seams, burrs (sharp edges left from cutting), and old coatings from metal structures before painting, coating, or further assembly. This creates a clean, uniform surface essential for adhesion and corrosion protection.
   • Tool Sharpening & Regrinding: Restoring the cutting edges of drills, milling cutters, lathe tools, inserts, and blades to maintain their effectiveness and prolong tool life.
2. Materials Processing & Chemical Industries:
   • Pigment & Paint Dispersion: High-shear grinders (like bead mills or three-roll mills) are essential for breaking down pigment agglomerates and dispersing them uniformly throughout paint, ink, and coating vehicles. This ensures consistent color strength, gloss, stability, and application properties.
   • Ceramic & Powder Metallurgy: Grinding raw materials to precise particle sizes is crucial for controlling the sintering behavior, density, strength, and final properties of ceramic components and powdered metal parts.
   • Plastic & Polymer Processing: Size reduction of plastic pellets or regrind material for recycling, or fine grinding for specific applications.
3. Precision Engineering & Optics:
   • Optical Components: Producing lenses, prisms, mirrors, optical flats, laser crystals (like LED sapphire substrates), and glass wafers requires grinders capable of achieving near-perfect flatness, surface figure (shape), and nanometer-level surface smoothness. This is critical for minimizing light scattering and distortion.
   • Semiconductor Manufacturing: Grinding silicon wafers to precise thicknesses and achieving ultra-flat surfaces is a key step in chip production. Quartz crystal oscillators also undergo precision grinding.
   • Gauge Blocks & Precision Surfaces: Manufacturing and calibrating the extremely flat and parallel surfaces of precision measurement tools like gauge blocks.
4. Automotive & Aerospace: Demanding high-precision and reliable components. Grinders are used extensively for engine parts (crankshafts, camshafts), transmission gears, turbine blades, landing gear components, and various critical bearings and shafts, ensuring they meet strict tolerances for performance, safety, and longevity.
5. Medical Device Manufacturing: Requires extreme precision and biocompatibility. Grinders polish surgical instruments (scalpels, forceps, implants) to ultra-smooth finishes to minimize tissue trauma, prevent bacterial adhesion, and ensure sterility. They are also used for precision machining of implant components.
6. Cosmetics & Pharmaceuticals: Fine grinding is crucial for:
   • Cosmetics: Reducing raw materials (pigments, minerals, actives) to very fine particle sizes enhances product feel (texture), spreadability, opacity, color payoff, and crucially, can improve the bioavailability of active ingredients when applied to the skin.
   • Pharmaceuticals: Milling active pharmaceutical ingredients (APIs) and excipients to controlled particle sizes is vital for ensuring consistent drug dosage, dissolution rate (how quickly the drug releases), bioavailability when ingested, and the manufacturability of tablets and capsules.

Diverse Types for Specific Tasks
The broad term “grinder” encompasses various specialized machines designed for different materials, precision levels, and part geometries:

1. Surface Grinders: Primarily for flat surfaces. The workpiece is typically held on a magnetic chuck, and a rotating grinding wheel moves across it horizontally (reciprocating or rotary table types). Essential for creating precise, parallel flat surfaces on machine parts, tools, and molds.
2. Cylindrical Grinders: Used for external and internal cylindrical surfaces. The workpiece rotates between centers or in a chuck, while the grinding wheel rotates in the opposite direction, traversing along the workpiece length. Subtypes include:
   • External Cylindrical Grinders: For grinding the outside diameter (OD) of shafts, pins, rollers.
   • Internal Cylindrical Grinders: For grinding the inside diameter (ID) of holes, bores, bearings.
   • Centerless Grinders: Grind cylindrical parts without using centers or chucks. The workpiece rests on a work rest blade and is rotated between a grinding wheel and a regulating wheel. Excellent for high-volume production of pins, rods, and bearing races.
3. Tool & Cutter Grinders: Highly versatile machines designed specifically for sharpening and manufacturing complex cutting tools like milling cutters, drills, reamers, hobs, and broaches. They feature multiple axes of movement to grind intricate profiles and angles.
4. Jig Grinders: Extremely precise machines (often CNC) used for grinding complex shapes and holes where the highest levels of accuracy and finish are required, typically in die and mold making. They use small high-speed grinding heads.

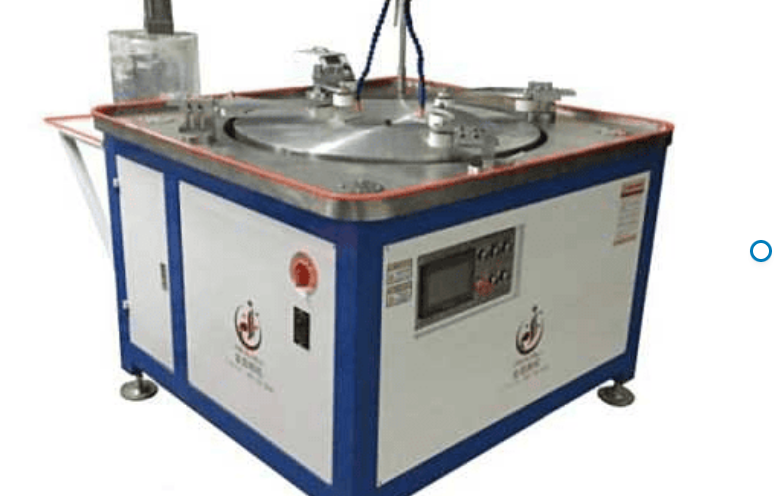

5. Lapping Machines: Focus on achieving ultimate flatness, surface finish, and dimensional accuracy through loose abrasive slurry (free abrasive) rather than a bonded wheel. Involves a rotating lapping plate (usually cast iron) and the workpiece held in a carrier. Common for optical components, valve seats, gauge blocks, and sealing surfaces.
6. Polishing Machines: Similar to lapping but often use softer pads (cloth, felt, polyurethane) with fine abrasive compounds to produce a high-gloss, reflective finish. Used on metals, stones, and optics.
7. Specialized Grinders:
   • Three-Roll Mills: Used for high-viscosity materials like paints, inks, cosmetics, chocolate, and soap. Material is fed between three horizontally positioned rolls rotating at different speeds, creating high shear forces to disperse and refine particles.
   • Bead Mills / Agitator Mills: For wet grinding and dispersion of particles down to the sub-micron range. Use grinding media (small beads) agitated by an impeller within a chamber. Common in paints, inks, ceramics, and pharmaceuticals.
   • Magnetic Grinders: Use a magnetic field to manipulate ferromagnetic abrasive media to deburr and polish complex internal and external surfaces of small metal parts, especially effective for hard-to-reach areas.
   • Laboratory Grinders: Bench-top units for small-scale sample preparation, testing, and research, including pulverizers, ball mills, and mortar grinders.

Fundamental Working Principles
Regardless of type, grinders rely on the relative motion between the abrasive tool and the workpiece to achieve material removal or surface refinement. The key principles are:

1. Abrasive Action: The core mechanism is the physical interaction between hard, sharp abrasive particles (like aluminum oxide, silicon carbide, diamond, or cubic boron nitride – CBN) and the workpiece material. These particles act as innumerable microscopic cutting tools.
2. Material Removal Mechanisms: As an abrasive grain contacts the workpiece surface, several things can happen:
   • Cutting: The grain cleanly shears a small chip of material (ideal, efficient removal).
   • Ploughing: The grain pushes material aside, creating ridges without significant chip formation (less efficient, increases friction and heat).
   • Rubbing: The worn grain simply slides over the surface, causing friction and heat generation but little material removal (inefficient, leads to thermal damage).
3. Source of Abrasive:
   • Bonded Abrasives (Grinding Wheels): Abrasive grains are held together by a bonding material (vitrified – ceramic, resin, rubber, metal). The wheel’s structure, abrasive type, grain size, bond type, and grade (hardness) are precisely engineered for the task. As grains dull, they fracture or are released, exposing fresh sharp grains (self-sharpening).
   • Loose Abrasives (Lapping/Polishing): Fine abrasive particles are suspended in a liquid (slurry) and introduced between the workpiece and a relatively soft lapping plate (e.g., cast iron). The rolling and sliding action of the free abrasives between the surfaces causes micro-chipping and smoothing.
   • Fixed Abrasives (Lapping Plates/Superfinishing Stones): Abrasive grains are embedded or bonded directly onto a plate or stone surface. This provides more controlled, predictable removal than loose abrasives.
4. Process Parameters: The effectiveness and outcome are heavily influenced by:
   • Speed: Rotational speed of the grinding wheel or lapping plate (Surface speed – SFPM).
   • Feed Rate: How fast the workpiece or wheel moves laterally.
   • Depth of Cut: How much material is removed per pass (usually very small in precision grinding).
   • Coolant/Lubricant: Essential for:
     • Removing heat generated by friction to prevent workpiece thermal damage (burning, cracking, metallurgical changes) and wheel damage.
     • Flushing away grinding swarf (chips) to prevent wheel loading (clogging) and surface scratches.
     • Lubricating the cutting action to reduce friction and power consumption.
     • Providing corrosion protection.
   • Dressing & Truing: Grinding wheels wear and become loaded or lose their shape. Dressing removes dull grains and swarf from the wheel face to expose fresh abrasives and restore cutting ability. Truing shapes the wheel to run true and have the correct profile.
5. The Grinding Process (Example – Surface Grinder):
   • The workpiece is securely mounted (often magnetically) to the machine table.
   • The rotating grinding wheel is brought into controlled contact with the workpiece surface.
   • The table moves the workpiece back and forth (or rotates) under the wheel.
   • After each pass, the wheel is fed down a small increment (depth of cut).
   • Coolant is continuously applied to the grinding zone.
   • The process repeats until the final dimensions and surface finish are achieved.

In essence, the grinder is a master of precision subtraction. By harnessing the controlled abrasion of countless microscopic cutting points, it transforms rough stock or pre-machined parts into components with exact dimensions, perfect geometric forms, and surfaces so smooth they can be measured in millionths of an inch or nanometers. From the massive gears in industrial machinery to the delicate lenses in microscopes and the pigments in your lipstick, the grinder’s ability to refine and perfect materials underpins countless technologies and products in our modern world.

Food Producing Process Flow:

Ultrafine grinding is one of the very key procedure in whole production line. It depends how many mesh that customer need to produce. That’s to say this machine can decide what kind of material will get finally before mxing.

Coarse Crusher Machine —>Grinding Machine —> Vibrating Table Sifter Machine—>Mixing Machine—>Packing Machine —> (Printed Packaging Film Roll or bags ) —> Filling, sealing machine, capping and Labeling Machine —>Pack into Box.
