Fluid Bed Granulator

  • Material: wet, dry materials;
  • Capacity: 1-250kg/h;
  • Total Power: 4.5~25KW;
  • Application: Pharmaceuticals, Nutraceuticals, Food Products, Chemicals, Fertilizer, Stucco, Clay, Potting Soils.
  • Notice: This is just an example. Please contact with our sales for choosing the right model.
  • Price: $805~15,300.

What is a Fluid Bed Granulator?

Fluid Bed Granulator is a machine mainly used for pharmaceutical granulation and coating, characterized by safe operation and high degree of automation.

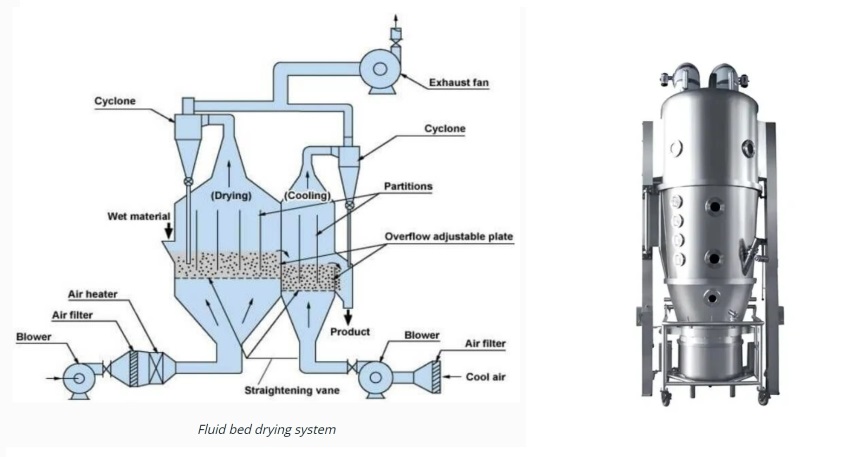

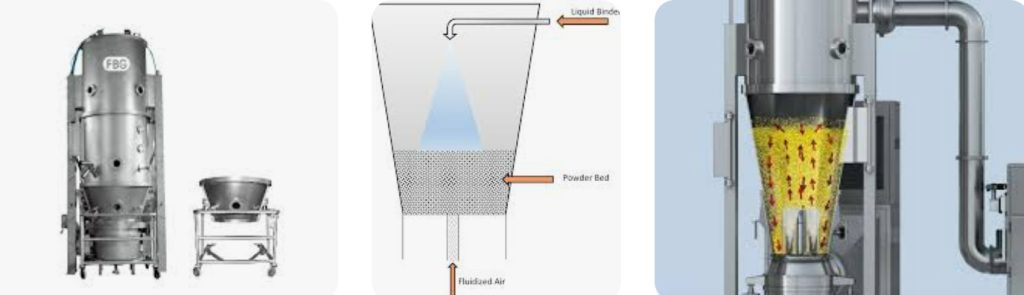

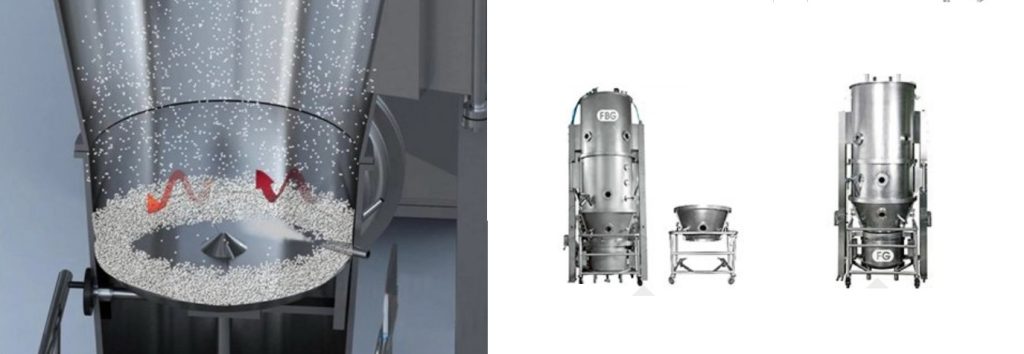

Fluid Bed Granulator Working Principle

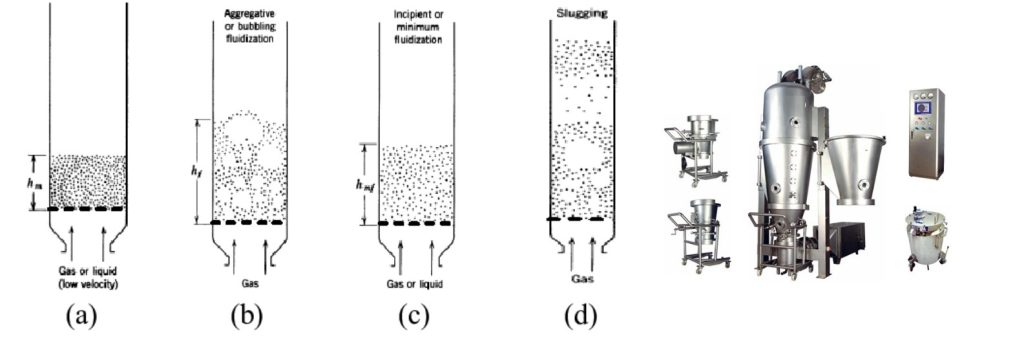

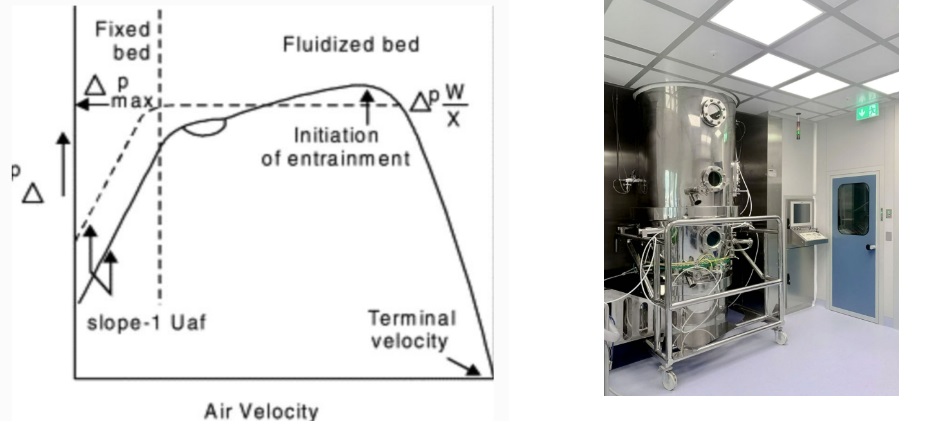

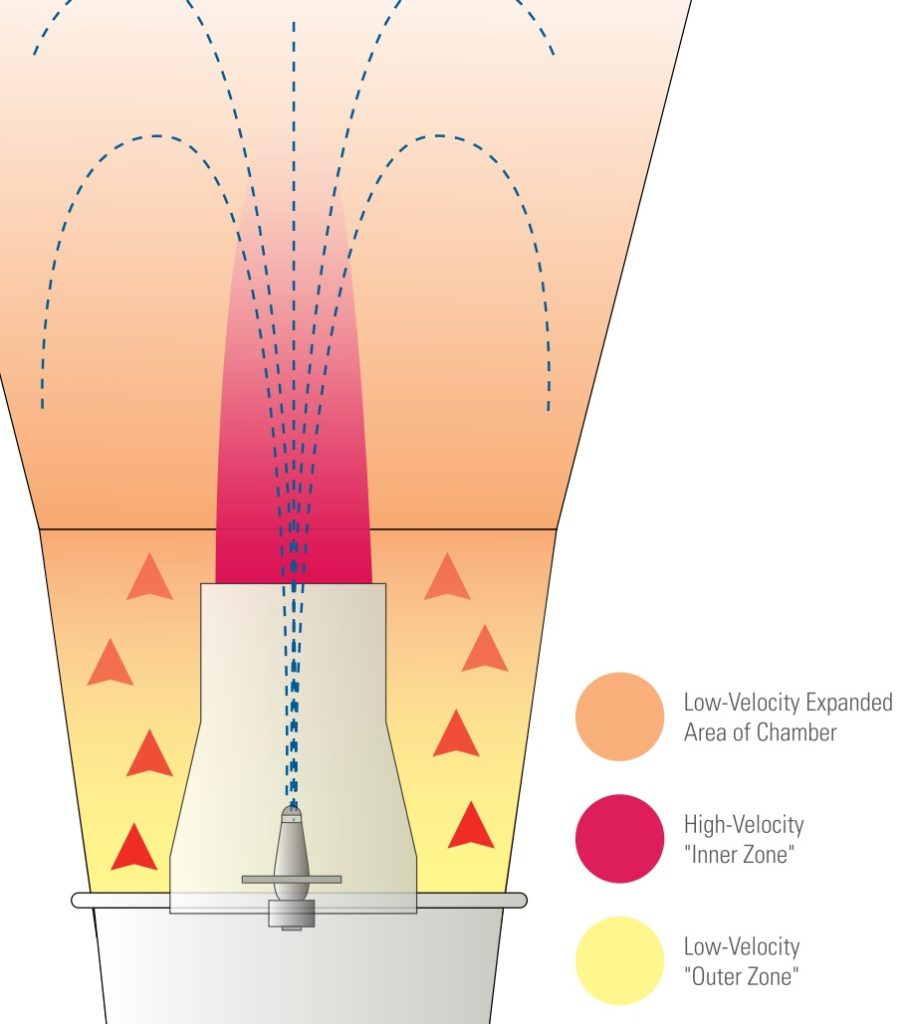

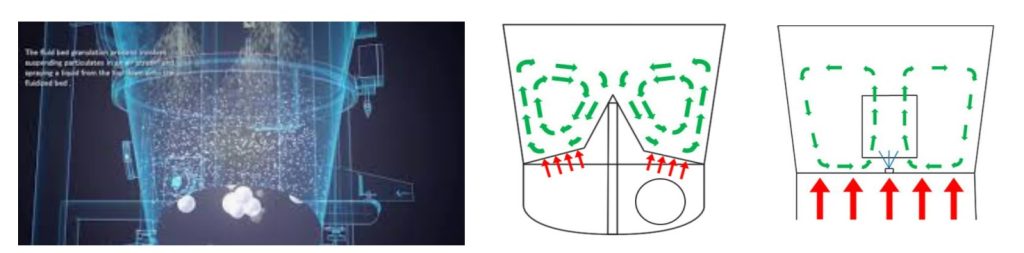

The powder material is placed into the closed container of the hopper. Due to the action of the hot airflow, the powder is suspended in a fluid circulation flow, achieving uniform mixing. Simultaneously, the mist binder is sprayed onto the powder in the container to moisten it, allowing the powder to condense into loose small particles. The ideal, uniform, multi-microporous spherical particles are formed, and the three processes of mixing, granulation, and drying are completed in the container simultaneously.

The water content and disintegration time of the solid preparation were investigated using a t-test. Results showed a significant difference between the boiling drying method and the traditional drying method (p < 0.01). The powder material is placed into the closed container of the hopper. Due to the action of the hot airflow, the powder is suspended in a fluid circulation flow, achieving uniform mixing. Simultaneously, the mist binder is sprayed onto the powder in the container to moisten it, allowing the powder to condense into loose small particles. The ideal, uniform, multi-microporous spherical particles are formed, and the three processes of mixing, granulation, and drying are completed in the container simultaneously.

The water content and disintegration time of the solid preparation were investigated using a t-test. Results showed a significant difference between the boiling drying method and the traditional drying method (p < 0.01).

Granulator for Sale Review :

Dry-granulating-machine

Dry Granulating Machine

What is a Dry granulating machine? A dry granulating machine uses dry roller press technology to compress or form blocks from powder materials with a water content of ≤5%. The…
grinding-and-granulating-machine

BJB Grinding and Granulating Machine

What is a granulating machine? A granulating machine is an industrial device used to shape powdered or granular raw materials through the application of pressure and friction to form uniform…
Swing-Granulator

BJB Swing Granulator

Swing Granulator Parameter: A Swing Granulator is a machine for making pellets from dry material. The Swing Granulator will be wet powder or block dry material developed into the required…
Rotary-Granulator

Rotary Granulator

Rotary Granulator Parameter: Model Capacity(KG/H) Granulator diameter(mm) Dimension(mm L*W*H) Weight(KG) Motor Power(KW) Knife Size(MM) BJB-250 100-200 1.0-3 750*540*1400 350 3/4 250 BJB-350 150-350 1.0-3 800*650*1400 400 5.5/7/5 300 Rotary Granulator…
wet-granulator-2

BHLSG Wet Granulator

Wet Granulator Parameter: Model Volume(L) Max Loading(KG) Cutter Speed(rpm) Rotating Speed(RPM) Mixing Power(KW) Granulation Power(KW) BHLSG-50 50 30 50-3000 100-400 5.1 3 BHLSG-100 100 40 50-3000 80-270 11 4 BHLSG-200…
super-granulator

BSG Super Granulator

Super Granulation Definition & Meaning: A Super Granulator is also called “pelletizer”. It is an industrial device used to shape powdered or granular raw materials through the action of pressure…

Application of Fluid Bed Granulator:

FG Series Fluid-Bed Dryer is one of the main process equipments in the solid dosage production procedure in the pharmaceutical industry. It is also widely used in the chemical and food industries. This equipment is equipped with both mixing and drying functions. Main application: tablet granules, powder granules, and capsule granules. Coating: granule coating, pill protective layers, prepared colors for slow release, film coating, and enteric coating. Food granulation and coating include sugar, coffee, cocoa powder, cream powder juice, amino acids, seasonings, and puffed foods. Additionally, granulation of pesticides, pigments, and dyes. Drying of powder, granules, and block materials.

Advantages of Fluid Bed Granulator:

Because the drying process uses fluidization, the heat transfer of the medium is fast. Since the operation is conducted under sealed conditions, there is no dust. By using antistatic material as a filter, the operation is safe. The equipment has no dead corners, making it easy to clean thoroughly and preventing cross-contamination. It complies with GMP requirements.

Functions of Fluid Bed Granulator:

Powder granulation improves fluidity and reduces dust dispersion. Granulation also enhances the solubility of the powder. Mixing, granulation, and drying are all done in one machine. The use of antistatic filter cloth ensures safe operation. Pressure relief holes are installed to protect personnel from harm in case of an explosion. The equipment has no dead angles, making the loading and unloading of materials light and quick, and washing is convenient, meeting GMP standards. The equipment offers a high degree of automation, with options such as program control and analog screen displays for users to choose from.

Feature of Fluid Bed Granulator:

This equipment has been successfully designed based on extensive research, absorption, and digestion of advanced foreign models. It features a reasonable structure with stable performance and easy operation. The whole machine has no dead angles or protruding screws. PLC ensures fully automatic control, with all operations completed automatically according to the customer’s set parameters. Additionally, process parameters can be printed, and records of original data are completely accurate and reliable. The FZ Series Fluid-Bed Granulators fully comply with GMP requirements for medicine production.

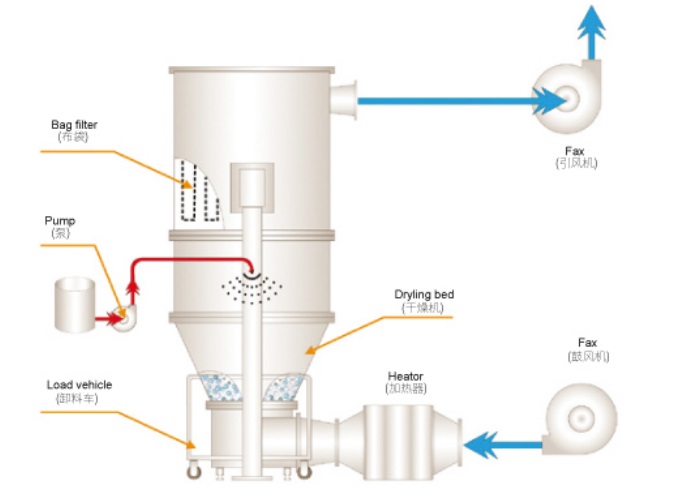

What is the process of Fluid Bed Granulator?

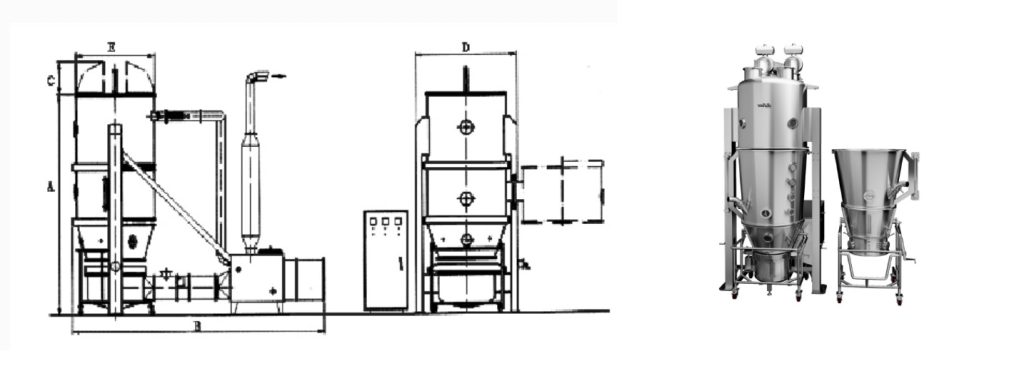

1, skip 2, control valve 3, primary effect filter 4, subhigh efficiency filter 5, heater 6, feed liquid pump 7, induced draft fan 8, silencer

Dry granulating machine Parameter:

ModelCapacity(KG/H)Roller Dimensions(mm)Total Power(KW)Coarse Grain Speed(RPM)Overall Size(mm)Weight(KG)
BJB-301-10130*304.5900*1000*1000650
BJB-6010-40160*60830-1201100*1150*13001300
BJB-8020-60240*8012.530-1201380*1550*18001600
BJB-10030-80240*1001430-1201380*1550*18001900
BJB-12040-120240*1201630-1501420*1580*18402500
BJB-15050-180240*1502030-1501550*1690*19503100
BJB-20080-250240*2002530-1501690*1820*20203800
Dry granulating machine - parameter

Fluid Bed Granulator Price:

The BJB Grinding and Granulating Machine according to different model is around $580~$12,000. For more price information Please click.

Fluid Bed Granulator Factory Information

Business Type:Manufacturer/FactoryMain Products:Mill, grinder, granulator, mixer, Crushing Equipment
Number of Employees:100Year of Establishment:2014.05
Production Capacity

5000 Set/YearAfter-sales Service:Technical Support; on-line teach lessons
R&D Capacity:


ODM, OEMAnnual Output Value:US$5 Million – US$10 Million
No. of R&D Staff:5No. of Production Lines:6

LK Mixer is a professional manufacturer for grinder, mixer and pulverizer, granulator. These machines are widely used in pharmaceutical, cosmetic, health care products and chemical industries. Our main product including granulating machine, grinder, mixer, dryer, etc. All mechanical products in accordance with the China GMP design requirements. And also we have other certifications such as CE, UL for motors.

Business Philosophy

“Quality is the main policy of sales” and “integrity is the principle of success” are the business philosophy of our people.  We carry out one-year warranty, lifelong maintenance service, with technical consultation, with material test machine and other services, and long-term supply of equipment. Welcome new and old customers to negotiate cooperation!

Certifications:

Industrial Pepper Grinder Diagram of Design

Industrial Pepper Grinder diagram

Electric Cabinet with UL Certification

Cyclone Processor and Motors:

Spare Parts:

Small Machine Packing:

Small machine packed with export fumigation-free wooden cases, goes with bulk shipment or in container.

Large Machine Packing:

Shipment Show Case: Small grinder machine ship for Masala,  Pakistan, Kenya, Nepal, India…

About LKMixer

LKMixer is a professional manufacturer for fertilizer production line, grinder, mixer and granulator, shredder. These machines are widely used in food, pharmaceutical, cosmetic, health care products and chemical industries. The Food materials like Peanut, mushroom, seeds, potato, bean, tobacco, salt, cannabis, tea, Sugar, corn, Coffee, rice, pepper, grain as so on. Grinders have many types such as Pulse Dust Grinder which suitable for zero pollution environment, Turbine Mill  which is suitable for coffee bean, 12-120mesh all can meet, Ultrafine Grinding Mill covers 80-200mesh, and also Winnowing Dust Grinder or other grinding machines like SF Hammer. Welcome to contact us for details. Contact us for more information. Proposal, catalog, quotation. Mobile/WhatsApp: +86 18019763531 Tel: +86 21 66037855 Email: sales@lkmixer.com

Contact Us

References:

  1. https://www.semanticscholar.org/paper/Spray-granulation-for-drug-formulation-Loh-Er/660a2663e7115e42c8f91969385554b6a8d198bd

FAQ(Click and See More)

Why Choose Us?

We have 20 years manufacturing experiences; 15600 cubic meters factory area; 5000sets annual capacity; 55 professional engineers;

What’s your main market?

South America: Brazil, Colombia, Peru, Bolivia, Uruguay, Paraguay ;Romania;
USA with UL Certification
Middle East: Saudi, Arabia, Oman, Turkey
Europe: Russia, Australia, Belarus, Ukraine, Poland

Can you support OEM?

– Yes, OEM or ODM. Machine can be customized according to customer detail requirement, including capacity and voltages, motor certifications.
– Drawing and raw materials also can be customized.

 What after-sale services?

– 7*24 customer service online;
– 7*24 engineers online services;
– 12 months warranty services.

WHAT kind of MACHINE YOUR COMPANY HAVE?

We majorly produce CRUSHER, GRINDER, MIXER, and also have auxiliary machines like DRYER, GRANULATOR, VIBRATING SIFTER, CONVEYOR, etc.
We can customize whole production line according to your capacity, material, output sizes of mesh and mm of granule and powder.


CAN YOU GIVE ME GUIDE ON OTHER MACHINE ? TO FULL MY PRODUCTION LINE

YES ! Our f have factory build more than 20 years now, we can design and customize whole line, besides of the grinding machine, mixing machine, we can also fully support to provide the washing machine, cutting machine, drying machine, packing machine, filling machine. Though we are not producing these machine, but our brother companies co-work together for over 20 years, we have rich experience in providing you a full effective production line, fully automatically or semi-automatically.

HOW TO VISIT YOUR COMPANY?

Our Factory located in Jiangsu Province, very near to Shanghai, you can fly to Shanghai Pudong Airport, we pick you up and take you by car 2 hours ride, can reach our factory, welcome your visit.

WHAT’S YOUR BEFORE & AFTER SERVICE ?

1) Before your purchasing, we need to know your detail request, such as what kind of material you want to grind and mixing, what final product powder or granule you want to reach. Because different material and powder sizes request of different machine to do. We can provide professional advice and rich experience help to choose machine. Most of the products we have already did before for other customer, trail test or run mass production, so we knows which machine is best in performance of grinding and mixing. This is of very importance in helping you choose the right model. We also wish this can help our customer a lot. Even the material we didn’t do before, we will prepare the same material and to do the trail test and send video to you for your reference.
2) One Year guarantee of machine quality. If the machine have problem within one year, we will send you the spare parts to you for replacement, but this not including the damage caused by human causes. We also have 24 hours on line guide for customer, if you have operation difficulty, we will guide by video and on line communication with our engineer for your emergency debug.
3) For small machine, we sell with whole machine, it’s no need to install, and easy to operation, no problems for operation. While for large machine, its’s also not difficult to install with video guideline, but if you need, we can assign our technicians to go abroad, the round ticket, food and residents will be paid by customer.

HOW ABOUT YOUR PAYMENT TERM?

Our payment term is T/T. 50% payment in advance, rest of 50% payment finish before the goods shipped. When we finish the machine production we will do trail test and run the machine take videos for your green light. You pay the rest of 50% payment then.

What are the different types of granulators?

In terms of processing, pelletizer can be divided into two types: wet pelletizer, which uses liquid in the processing process, and dry pelletizer, which does not use liquid. Wet granulation involves a lot of water and detergent, and the purpose is to clean the contaminated material and also to cool the machine.

The difference between wet granulator and dry granulator:

First, Dry Granulator
Dry granulators use dry powder to produce granular material. The mixture is fed into the equipment through the hopper, where it forms particles through rotational and vibrational motion and is then sifted out through a screen with a predetermined particle size at the discharge port. Dry granulators are typically used to manufacture fertilizers, pigments, pesticides, plastic particles, and so on.
Advantages:
Dry granulators have high operating efficiency.
They have relatively low requirements for the raw materials used and do not require extensive pretreatment.
Dry granulators are relatively simple and easy to learn.
Cons:
Dry granulators can produce more dust, requiring thorough cleaning and maintenance.
Since the dry method cannot use additional lubricants during particle manufacturing, there may be deficiencies in some areas, making the wet granulator a more suitable option.
Second, Wet Granulator
Wet granulators operate with liquids or suspensions. The mixture enters the device through a hopper, forms particles inside the device, and is eventually discharged through a screen. Wet granulators are typically used to manufacture boiler fuel particles, cosmetics, and food products.
Advantages:
Wet granulators do not produce dust.
The high humidity in wet granulators helps increase the adhesion between particles, resulting in higher particle quality.
Wet granulators support the use of additional lubricants, which can make particles more suitable for certain applications.
Cons:
Wet granulators are more complex and relatively difficult to operate.
In some cases, the pretreatment process required to produce wet particles may be more complex.
The production efficiency of wet granulators is not as high as that of dry granulators, taking longer manufacturing time.
In summary, although dry granulators and wet granulators are both pellet manufacturing equipment, their working principles, application fields, and advantages and disadvantages differ. Enterprises should choose the appropriate method based on their needs and the comparison of advantages and disadvantages described in this article.”

Dry Granulating Machine uses in pharmaceutical industry:

The pharmaceutical industry is closely related to human health and life safety, and every aspect of its production process requires strict control. In pharmaceutical manufacturing, granulation is a crucial step that directly affects the quality, stability, and efficacy of drugs. As an advanced granulation method, dry granulation plays an important role in the pharmaceutical industry. This article will explain the importance of dry granulation in the pharmaceutical industry from the following perspectives.
First, dry granulation can improve the stability of drugs. In the pharmaceutical process, the size, shape, and surface condition of the particles significantly influence drug stability. Dry granulation ensures that the drug and auxiliary materials are evenly mixed through the high-speed rotating granulator, resulting in drug particles with a more regular shape and smoother surface, thereby enhancing the stability of the drug. Additionally, the dry granulator can adjust pressure, temperature, and other parameters during the granulation process according to the characteristics of the drug, enabling the drug to maintain good stability under different conditions.
Secondly, dry granulation can enhance the dissolution rate of drugs. The dissolution rate of a drug in the body directly impacts its efficacy. By precisely controlling pressure, temperature, and other parameters during the granulation process, the dry granulator ensures that the drug particles have higher porosity and better fluidity, which improves the dissolution rate of the drug in the body. This is especially important for medicines requiring rapid action, such as emergency drugs and antibiotics.
Thirdly, dry granulation can improve the bio-availability of drugs. Bio-availability refers to the extent to which a drug is absorbed in the body and becomes active. By optimizing the granulation process, drug particles achieve good fluidity and high dissolution rates, thereby increasing the bio-availability of drugs in the body. This is particularly significant for oral drugs, as their bio-availability directly affects drug efficacy.
In addition, dry granulation offers the advantages of simple operation, high production efficiency, and low energy consumption. Unlike traditional wet granulation, dry granulation does not require the addition of solvents, which reduces environmental pollution and production costs. Furthermore, the high level of automation in dry granulation allows for continuous production, significantly increasing production efficiency
