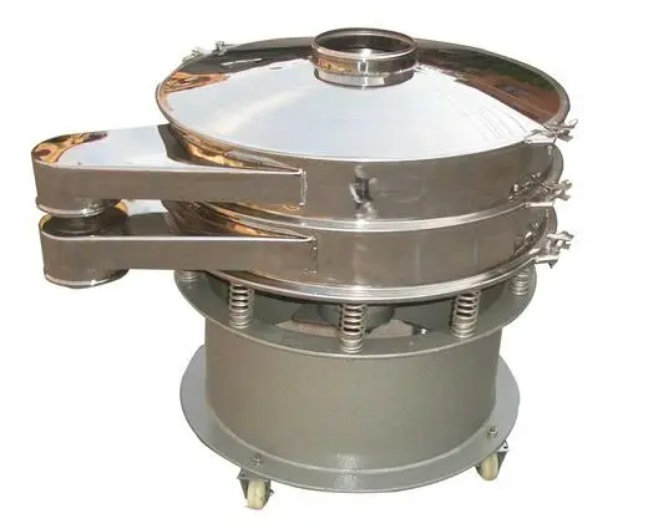

Powder Sifter Machine

  • Effective Area: 0.2375~2.3523 m²
  • Power: 0.55-3kw;
  • Layer: 3 layer
  • Application: diggings, metallurgy, abrasive tools, building materials; Pharmaceuticals, Nutraceuticals, Food Products, Chemicals, Fertilizer, Stucco, Clay, Potting Soils.
  • Notice: This is just an example. Please contact with our sales for choosing the right model.
  • Price: $805~15,300.

Powder Sifter Machine for Sale:

Powder Sifter Machine is a common used machine after the grinding process, it helps to screen and sorting out the right size of powder and granule high effectively. It can connect with the grinding machine directly to the outlet of grinder and can also used separately.

ultrasonic-screen

Ultrasonic Screen

Ultrasonic Screen Machine for Sale: Ultrasonic Screen is a common used machine after the grinding process, it helps to screen and sorting out the right size of powder and granule…
Rotary-Sifter

Rotary Sifter

Rotary Sifter Machine for Sale: Rotary Sifter is a common used machine after the rice grinding process, it helps to screen and sorting out the right size of rice powder…
Rice-Sifter-Machine

Rice Sifter Machine

Rice Sifter Machine for Sale: Rice Sifter Machine is a common used machine after the rice grinding process, it helps to screen and sorting out the right size of rice…
sifter-machine

Commercial Sifter Machine

Commercial Sifter Machine Different Types of Screen: : Videos of Commercial Sifter Machine: Product Information Production Line Customization Solution: LINKER is a manufacturer of grinding and mixing machine. We can…
Flour-sifter-machine

Flour Sifter Machine

Flour Sifter Machine for Sale: Customization Flour Sifter Machine According to your Capacity: Videos of Flour Sifter Machine: Product Information Production Line Customization Solution: LINKER is a manufacturer of grinding…
Linear-Vibrating-Screen

Linear Vibrating Screen

Videos of Linear Vibrating Screen What is Linear Vibrating Screen? The linear screen (linear vibrating screen) uses a vibration motor to provide the vibration source. This makes the material to…

Customization Powder Sifter Machine According to your Capacity:

Powder Sifter Machine

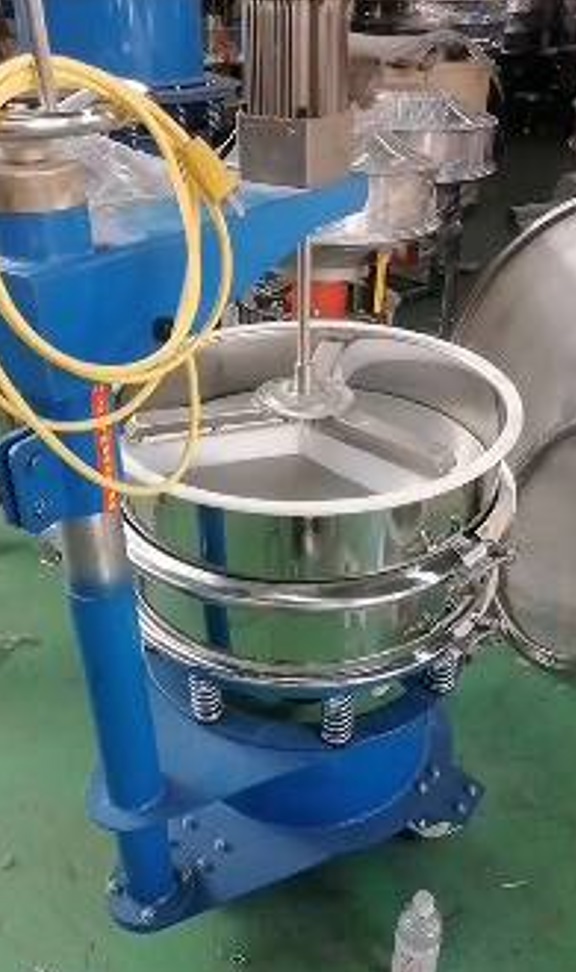

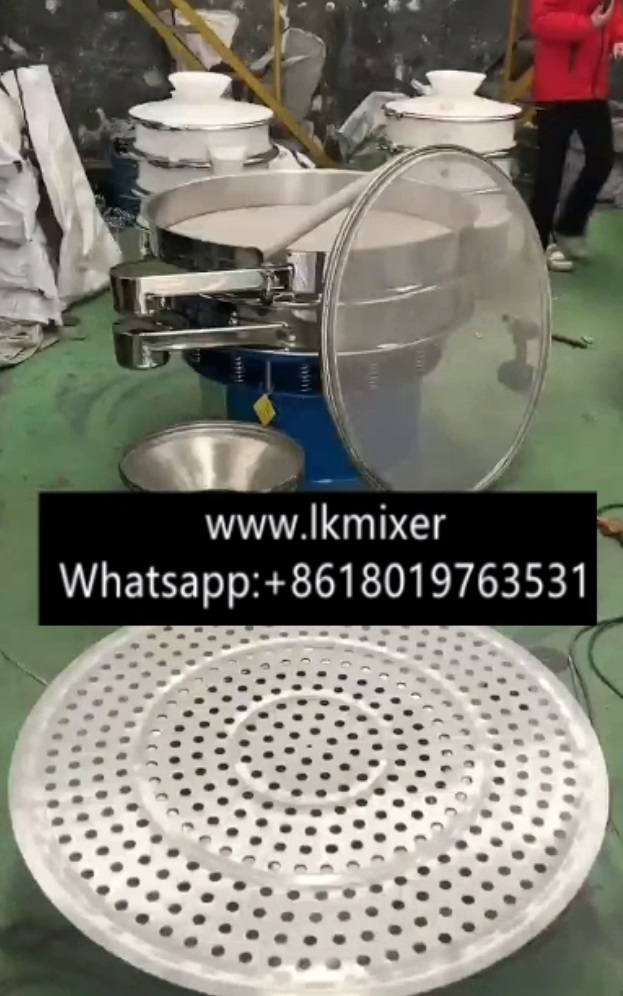

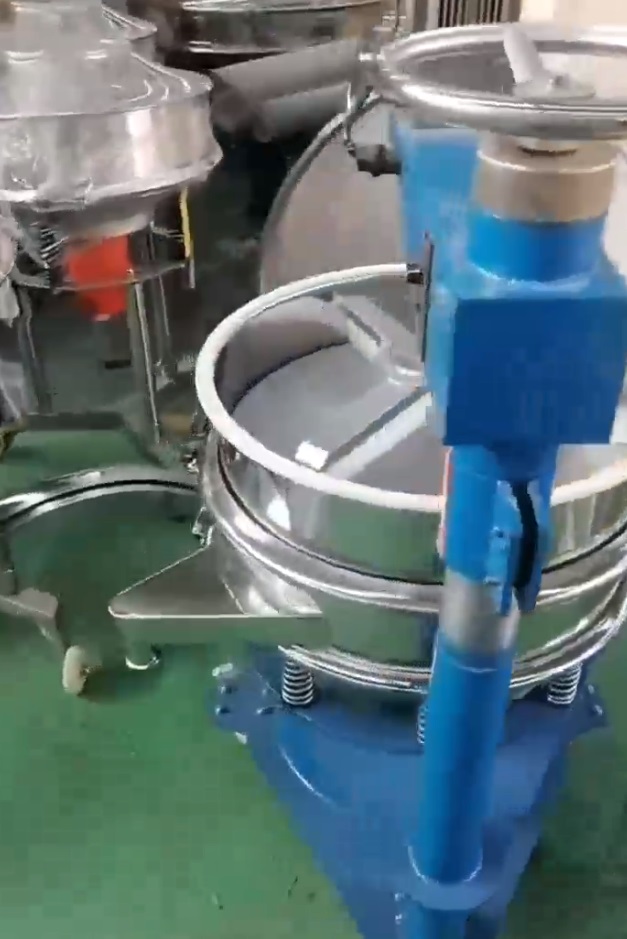

Videos of Powder Sifter Machine:

Product Information

What is Powder Sifter Machine?

The Powder Sifter Machine can classified into eccentric ring moving screen, inertia vibrating screen and resonance screen, etc., The common feature of Powder Sifter Machine is that the screen surface is made of high frequency and small amplitude vibration. As a result that the material on the screen surface is separated. The feature of this machine are: the screen is not easy to plug, the screening efficiency is high, the structure is simple, the weight is light, and the power consumption is less.

Technical parameters of Powder Sifter Machine:

ModelSingle Layer HeightDouble Layers HeightThree layers Height
LKXC-6007508601060
LKXC-8008409801120
LKXC-10008409801120
LKXC-1200101011501290
LKXC-1500106012201380
LKXC-1800122013901560
ModelPower(KW)DiameterEffective Area(m²)Layer
LKXC-6007505600.23751-3
LKXC-8008407600.44161-3
LKXC-10008409300.67801-3
LKXC-1200101011301.0381-3
LKXC-1500106014301.601-3
LKXC-1800122017302.351-3

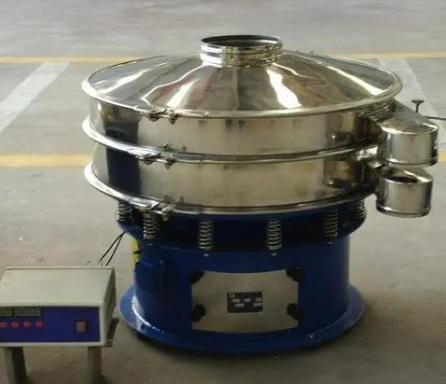

Pictures of Powder Sifter Machine:

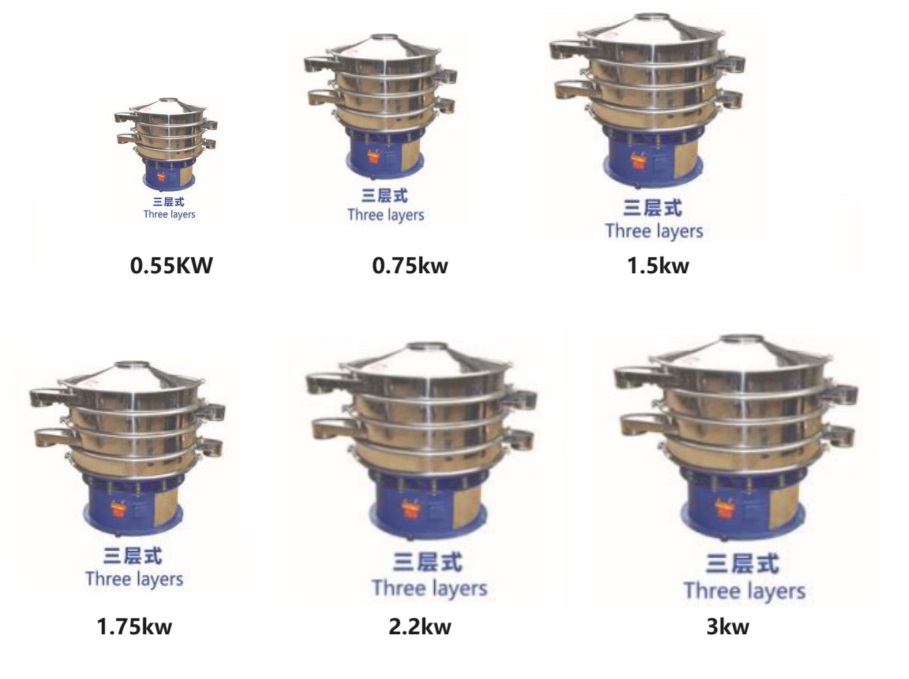

Multiple Screen Sizes:

Feature and Benefits of Powder Sifter Machine

The widest range of screening:

Powder Sifter Machine is applicable to all kinds of particles, powder, and slurry screening and separation. And it is suitable for screening particle size reaching 500-600 mesh, and filter particle size can reaching 5 microns.

The mesh screen not easy to be blocked by material:

Powder Sifter Machine is specially designed with several cleaning device for screen. And this design reduced the probability of clogging the mesh screen.

Single layer and multi-layer sorting:

For the single LKXC Powder Sifter Machine, customer can choose 1-5 layers screen, and can carry out the sorting of 2-6 grades. Single layer filtration, once to achieve the several requirements.

Easy to change the screen:

LKXC Powder Sifter Machine has many kinds of grid structure according to different customer requirements; the time of changing screen is shortened to 3-5 minutes, which saves 30-60 minutes comparing to other types; the advantages of this machines are no deformation of the mesh screen, long service life of screen, high efficiency.

Application of Powder Sifter Machine:

  • Chemical Industry: Chemical fertilizer, resin, paint, medicine, industrial chemicals, rubber, filler, grease, plastic, and more.
  • Abrasives: Glass, ceramic industry, silica sand, alumina, abrasive, and glass powder.
  • Food Industry: Sugar, salt, MSG, soy milk, fruit juice, starch, yeast powder, milk powder, and food products.
  • Smelting Industry: Quartz sand, ore, iron oxide, zinc oxide, and other materials.
  • Paper Industry: White mud, coated starch, black liquor, filler liquid, pulp waste, wastewater, and so on.
  • Hardware: Environmental protection materials, sand, cemented carbide, electromagnetic materials, aluminum, metal particles, sewage, industrial wastewater, and more.
  • Other Industries: Carbon black, solvent, activated carbon, pearls, and other materials.

Working Principle of Powder Sifter Machine:

This LKSC Type Powder Sifter Machine is used for sifting the powder. By vibrating the weight (unbalanced weight) installed on the upper and lower ends of the motor, the rotational motion force of the motor is converted into horizontal. It is make the vertical and inclined three-dimensional motion (three-dimensional motion), and then the motion is transmitted to the screen surface. Changing the phase Angle of the upper and lower weights can change the movement path of the material on the screen surface. LKSC is also a kind of rotary sifter machine, by the unbalanced weights installed at the upper and lower ends of the vibration motor, the rotating motion force of the motor is converted into horizontal, vertical, and inclined three-dimensional motion. And then the motion is transferred to the screen surface. Changing the phase angle of the upper and lower weights can change the movement track of the material on the screen surface.

Production Line Customization Solution:

Drying Machine + Grinding Machine + Sifter Machine + Mixing Machine + Packing Machine:

Production Line Customization Videos(See More Videos):

Fertilizer Production Line

Blending Production Line

Wheat Flour Production Line

Factory Information

Factory Information

Business Type:Manufacturer/FactoryMain Products:Mill, grinder, granulator, mixer, Crushing Equipment
Number of Employees:100Year of Establishment:2014.05
Production Capacity

5000 Set/YearAfter-sales Service:Technical Support; on-line teach lessons
R&D Capacity:


ODM, OEMAnnual Output Value:US$5 Million – US$10 Million
No. of R&D Staff:5No. of Production Lines:6

LK Mixer is a professional manufacturer for grinder, mixer and pulverizer, granulator. These machines are widely used in pharmaceutical, cosmetic, health care products and chemical industries. Our main product including granulating machine, grinder, mixer, dryer, etc. All mechanical products in accordance with the China GMP design requirements. And also we have other certifications such as CE, UL for motors.

Business Philosophy: “Quality is the main policy of sales” and “integrity is the principle of success” are the business philosophy of our people.  We carry out one-year warranty, lifelong maintenance service, with technical consultation, with material test machine and other services, and long-term supply of equipment. Welcome new and old customers to negotiate cooperation!

Certifications:

Small Machine Packing:

Small machine packed with export fumigation-free wooden cases, goes with bulk shipment or in container.

Large Machine Packing:

Shipment Show Case: Small grinder machine ship for Masala,  Pakistan, Kenya, Nepal, India…

Normal Problems that May Meet:

Motor instruction

This series of motors can continuously output rated exciting force when the following conditions are met.

  • vibration acceleration: not more than 7g (g: acceleration of gravity)
  • ambient temperature: not more than 40℃
  • altitude: not more than 1000m
  • Power frequency: 50Hz
  • Voltage: 380V or customization
  • temperature rise: less than 80K (resistance method)
  • Preparation before installation: 1, check whether the motor sign is in line with the requirements; 2, with 500 volts megohm meter to measure the insulation resistance, its value should be dried stator winding, drying temperature can not exceed 120℃; 3, check the fasteners of the motor, beware of loosening; 4, check the motor surface for damage and deformation; 5, check whether the rotation is flexible, if there is an anomaly, should be excluded; 6, check the power supply, whether there is a lack of phase, and no-load operation for 5 minutes.

Installation and adjustment

  • The motor should be fastened on the mounting surface, and the mounting surface must be smooth and flat; 2, the motor can be installed horizontally; 3, the motor lead adopts four-core rubber cable YZ-500V, the lead cable is not allowed to have a sharp break when connecting the power supply, and is reliably fixed with the vibrating body; 4, the motor should have reliable grounding, the motor has a grounding device, the lead end is marked, and the solid bolt can also be used to ground.
  • Adjustment of exciting force.
  • Try to start two vibration motors, which require the two vibration motors to run at equal speed in reverse. If it runs in the same direction, replace any two-phase power supply wiring of one of the vibration motors.
  • the trial operation time of the vibrating screen shall not be less than 8 hours, and the trial operation can be tested by naked eye observation and instrument detection. The vibrating screen should start smoothly, quickly, work vibration is stable and reliable, no special noise, the various technical performance parameters of the vibrating screen meet the requirements of the drawing, and the vibrating screen box shall not produce lateral swing.
    Use and maintenance
  • The machine shall be equipped with electrical protection device.
  • In the early stage of operation, check the anchor bolt at least once a day to prevent loosening.
  • when the motor rotation direction does not meet the requirements, adjust the phase sequence of the power supply.
  • the motor should ensure good lubrication, every two weeks or so to add lithium grease (ZL-3) once, refueling, through the oil cup to add an appropriate amount of lithium grease. When sealed bearings are used, the motor is not equipped with oil cups.
  • the machine has been running for 1500 hours, should check the bearing, if there is serious damage should be replaced immediately.
  • When the machine is used again after being stopped for a long time, the insulation resistance should be measured for 500 volt megohm meter measurement, which should be greater than 0.5 megohm.
    Daily maintenance
  • Before starting:
    (1) Check the coarse mesh and fine mesh for damage
    (2) Whether each group of bunches is locked
  • When starting:
    (1) Pay attention to any abnormal noise
    (2) Whether the current is stable
    (3) There is no difference in vibration
  • after use: clean up after each use.
  • Regular maintenance: Check the coarse mesh, fine mesh and spring regularly for fatigue and damage, whether the parts of the fuselage are damaged due to vibration, and the parts that need to add lubricating oil must be lubricated.

Warranty of Machine:

We provide one year warranty for all our machine, but not including the man-made damage. We can provide free spare parts if damage in one year in normal operation. 24hours stand by to solve urgent problems. 3 days of spare parts provide by express. Please specially notice for the motor connection. it should be connect in right way to prevent the motor burnt, take special notice of running machine safely. Machine need to be clean and maintained frequently.
