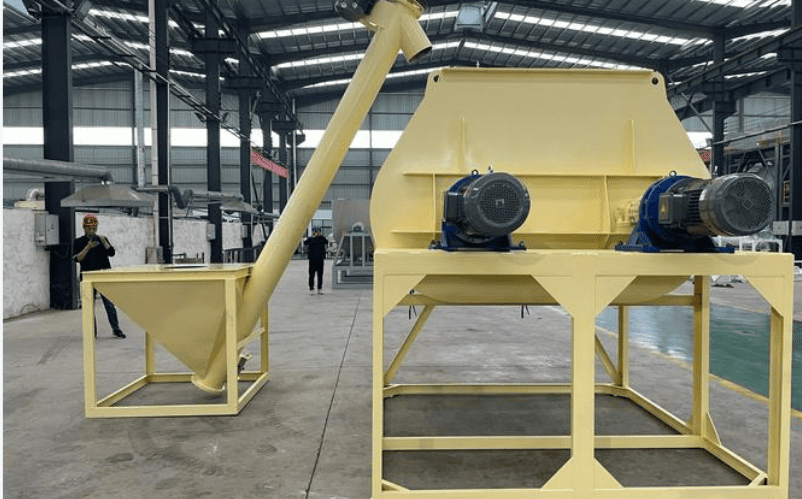

How to Make a Ribbon Blender: Design, Build & Operation Guide

Making a ribbon blender involves combining mechanical design, building a drive system, and assembling the structure, with the core principle being the continuous movement of a conveyor belt to achieve material mixing. The following details the key steps and considerations for building a small-scale or simple experimental ribbon blender:

I. Designing Core Parameters and Planning the Structure

The foundation of building a functional ribbon blender lies in meticulous planning. Start by clearly defining its intended use and the materials it will process. Different materials – whether powders, granules, or pastes – significantly influence design choices. For instance, fine powders might require enclosed designs to prevent dusting, while sticky pastes need non-adhesive surfaces. Based on the material type and desired batch size or processing rate, determine the essential parameters: the conveyor belt width (typically 30-100 cm for small units), its length (dictated by required mixing time, often 1-3 meters to allow sufficient residence time), and the belt speed (adjustable, usually between 0.5 to 5 meters per minute). Simultaneously, decide on the mixing mechanism. The most common approach for this design is using an overhead agitator suspended above the belt. This can consist of rotating paddles (like propeller blades or pitched blades) or static elements like ploughs or deflector plates mounted directly over the belt path. The mixing action occurs as the material is carried along by the belt and interacts with these elements; rotating paddles actively shear and move the material, while static ploughs lift and tumble it, promoting homogenization through collision and intermingling. With these fundamentals established, plan the overall structure, which will primarily consist of five integrated systems: the conveyor belt system (the heart of transport), the mixing mechanism (providing agitation), the frame (structural support), the drive system (power transmission), and the feed/discharge arrangements (material handling).

II. Selecting and Fabricating Core Components

The performance and durability of your ribbon blender hinge on choosing and building the right components. For the conveyor belt system, the belt material is paramount. Select it based on the processed material: food-grade silicone or polyurethane (PU) belts are essential for edible products, heavy-duty rubber belts offer excellent abrasion resistance for harsh minerals or aggregates, while Teflon-coated belts handle high-temperature applications. Belt thickness usually ranges from 1 to 3 mm, and its width should be slightly wider than the intended mixing zone on the frame. The belt runs on rollers: a drive roller (connected to the motor) at one end and an idler roller (primarily for tensioning) at the other. These rollers should be made from smooth materials like stainless steel or carbon steel (possibly coated) to minimize belt wear. Their diameter should be proportional to the belt width; a 50 cm wide belt typically requires rollers between 5 to 10 cm in diameter. Crucially, incorporate a tensioning device, usually a simple bolt-adjustable mechanism at the idler roller end, to maintain proper belt tension, preventing slippage and ensuring consistent movement.

The mixing mechanism needs careful design. The central shaft, supporting the mixing elements, should be robust, made from round steel bar (like 45# carbon steel) or corrosion-resistant stainless steel, with a length slightly less than the belt’s width to avoid interference with the frame. The choice of paddles or ploughs attached to this shaft depends entirely on the mixing action required. For gentle powder blending, simple angled paddle blades (pitched at 30°-60°) work well. To break up lumps or agglomerates, rake-like or harrow-style paddles are more effective. For very gentle homogenization of fragile materials, flat blades might suffice. The clearance between the bottom of these mixing elements and the conveyor belt surface is critical; it’s typically adjustable between 5 to 20 mm. Too little clearance risks damaging the belt or creating excessive friction, while too much reduces mixing effectiveness. This entire mixing assembly needs a sturdy mounting solution. Use bearing blocks fixed to a rigid overhead crossbeam on the main frame. The height of this crossbeam, and consequently the mixing element clearance, should be adjustable, achieved via bolted connections or sliding mounts on vertical supports.

The frame and support structure provides the backbone. Construct it primarily from welded angle iron (e.g., 30×30 mm) or square tubing, ensuring sufficient rigidity to prevent vibrations during operation, which can affect mixing and component life. Leveling feet or lockable casters attached to the base legs are highly recommended for easy mobility and stable positioning. To contain the material on the belt during mixing, install vertical side skirts or side plates along both edges of the conveyor path. These plates, typically 10 to 30 cm high, prevent spillage and can be made from sheet metal (steel, stainless) or durable plastic (like UHMWPE) depending on material compatibility and cost.

The drive system provides the necessary power and control. Select a suitable geared motor as the power source. For small experimental blenders, a 220V AC motor with an integrated gear reducer is common. Motor power (typically 0.5 kW to 2.2 kW) must be adequate for the load – consider the weight of material, friction from the belt and bearings, and the resistance from the mixing action. The gear reducer is essential to step down the motor’s high rotational speed to the much lower speeds required for both the conveyor belt and the mixing shaft (the belt generally moves much slower than the mixing shaft rotates). Power transmission involves connecting the motor output to the conveyor drive roller, usually via a chain and sprockets or a belt and pulley system. Driving the mixing shaft can be done either by a separate, smaller motor (offering independent speed control) or by tapping power from the main motor using a secondary output shaft or a split drive arrangement. If using a single motor for both, incorporate a separate speed controller (like a variable frequency drive for the motor or a secondary gearbox/reducer) or a clutch mechanism specifically for the mixing shaft to allow independent adjustment of its speed relative to the belt speed.

Finally, integrate feed and discharge systems for efficient material handling. The feed point is located above the start (infeed end) of the conveyor belt. A simple funnel or hopper suffices, ideally equipped with a slide gate or butterfly valve to regulate the flow rate of material onto the belt. Adding a small deflector plate or chute inside the hopper can help distribute the incoming material more evenly across the belt’s width. At the opposite end (discharge end), position a collection chute, trough, or even a connecting pipe beneath the belt’s tail pulley to catch and direct the mixed material into containers or the next processing stage.

III. Assembly and Commissioning

With components ready, systematic assembly is key. Begin with the frame assembly. Whether welding or bolting the frame sections together, ensure the entire structure is level and square. Use a spirit level during assembly; an uneven frame can cause material to shift to one side during operation or lead to belt tracking issues. Next, install the conveyor belt system. Securely mount the drive and idler rollers at each end of the frame. Slide the conveyor belt onto the rollers. Engage the tensioning device on the idler roller end – tighten it sufficiently so the belt is taut with no visible sagging, but avoid over-tensioning which stresses the belt and bearings. Manually rotate the drive roller to check if the belt tracks centrally. If it drifts (“tracks”) to one side consistently, this usually indicates the rollers are not perfectly parallel; carefully adjust the mounting angle of the idler roller (sometimes the drive roller) until the belt runs straight. Now, install the mixing mechanism. Mount the bearing blocks securely onto the overhead crossbeam. Insert the mixing shaft with its attached paddles/ploughs. Carefully adjust the height of the entire assembly (or individual elements) so the clearance between the mixing elements and the belt surface is uniform along the entire length and width. Double-check that no part of the agitator touches the belt, even during potential flexing. Connect the drive system. Install the motor(s) and connect them to the conveyor drive roller and the mixing shaft using the chosen chain/sprocket or belt/pulley system. Ensure all rotating drive components (chains, belts, pulleys, shafts) are equipped with proper safety guards before proceeding. Connect the electrical wiring according to the motor specifications and local electrical codes, ensuring all connections are insulated. Momentarily power the motors to verify their rotational direction. Crucially, ensure the conveyor belt moves forward (towards the discharge end) and the mixing paddles rotate in a direction that effectively moves the material (e.g., typically pushing material downwards or towards the center, not throwing it off the belt).

Thorough testing and debugging follows assembly. First, conduct an empty run (no material). Power on the blender and observe all components. Listen for any unusual noises (grinding, knocking) indicating misalignment, insufficient lubrication, or loose parts. Watch the conveyor belt closely – it should run smoothly and stay centered. Check the mixing shaft rotates steadily without wobble. Run it for 10-15 minutes, monitoring bearing temperatures (should only get slightly warm). If any issues are found, shut down, identify the cause (e.g., tighten bolts, realign components, lubricate bearings), and retest. Once the empty run is satisfactory, proceed to a loaded test. Start with a small batch of material (e.g., 10-25% of intended capacity). Observe the mixing process: How well is the material being lifted and dispersed? Are there dead spots or segregation? Does material build up excessively on paddles or sides? Check the discharged material for uniformity. Based on observations, begin fine-tuning: Adjust the conveyor belt speed (faster for shorter residence time, slower for longer mixing). Adjust the mixing shaft speed (faster for more intense shear, slower for gentler blending). You might also need to slightly alter paddle angles or clearances. Continue testing with small batches, making incremental adjustments, until the desired mixing homogeneity and efficiency are achieved for your specific material.

IV. Critical Considerations

Safety must be paramount throughout design, construction, and operation. Safety guarding is non-negotiable. All rotating parts pose entanglement hazards – this includes the mixing shaft, any exposed couplings, drive chains, belts, and pulleys. Robust metal mesh or solid sheet metal guards must enclose these areas completely. Electrical wiring for motors must be properly insulated, grounded, and protected from physical damage and moisture. Material compatibility is essential for longevity and product integrity. Every component contacting the material – the conveyor belt, mixing paddles/shaft, feed hopper, discharge chute, and side skirts – must be chemically resistant to the material being processed. This means selecting materials like stainless steel (e.g., 304 or 316 for corrosion resistance), food-grade silicones or plastics, or specialized coatings (like Teflon) that won’t degrade, contaminate the product, or be corroded by it. Consider wear resistance for abrasive materials. Design for maintenance from the outset. Blenders experience wear, especially on the conveyor belt, bearings, and potentially paddles. Ensure there is sufficient space around these components to allow for inspection, lubrication (for bearings and drive chains), and relatively straightforward replacement. Use standard bearing sizes where possible. Implement a regular maintenance schedule including lubrication and inspection of tension, alignment, and component wear.

Moving Beyond the Prototype: While this guide focuses on a small-scale or experimental ribbon blender, scaling up for industrial production introduces significant complexities. Industrial units require rigorous engineering analysis, such as Finite Element Analysis (FEA), to optimize the frame and component strength under heavy, dynamic loads, ensuring safety and preventing fatigue failures. Efficiency and consistency demand automated control systems. A Programmable Logic Controller (PLC) can precisely manage feed rates (via automated valves or feeders), independently control conveyor and mixing speeds, monitor motor loads, potentially integrate load cells for batching, and record process data. Dust control systems become critical for powders, and hygienic design with easy-clean surfaces (e.g., fully welded frames, polished finishes, CIP systems) is mandatory for food or pharmaceutical applications. Industrial blenders also require compliance with stringent machinery safety standards (like CE, UL) and often need specific certifications (e.g., USDA, FDA, ATEX for explosive atmospheres). Building a robust, efficient, and safe industrial ribbon blender is a significant engineering undertaking far beyond the scope of a simple build, but understanding the core principles from a smaller project provides a valuable foundation.

Food Producing Process Flow:

Ultrafine grinding is one of the very key procedure in whole production line. It depends how many mesh that customer need to produce. That’s to say this machine can decide what kind of material will get finally before mxing.

Coarse Crusher Machine —>Grinding Machine —> Vibrating Table Sifter Machine—>Mixing Machine—>Packing Machine —> (Printed Packaging Film Roll or bags ) —> Filling, sealing machine, capping and Labeling Machine —>Pack into Box.
