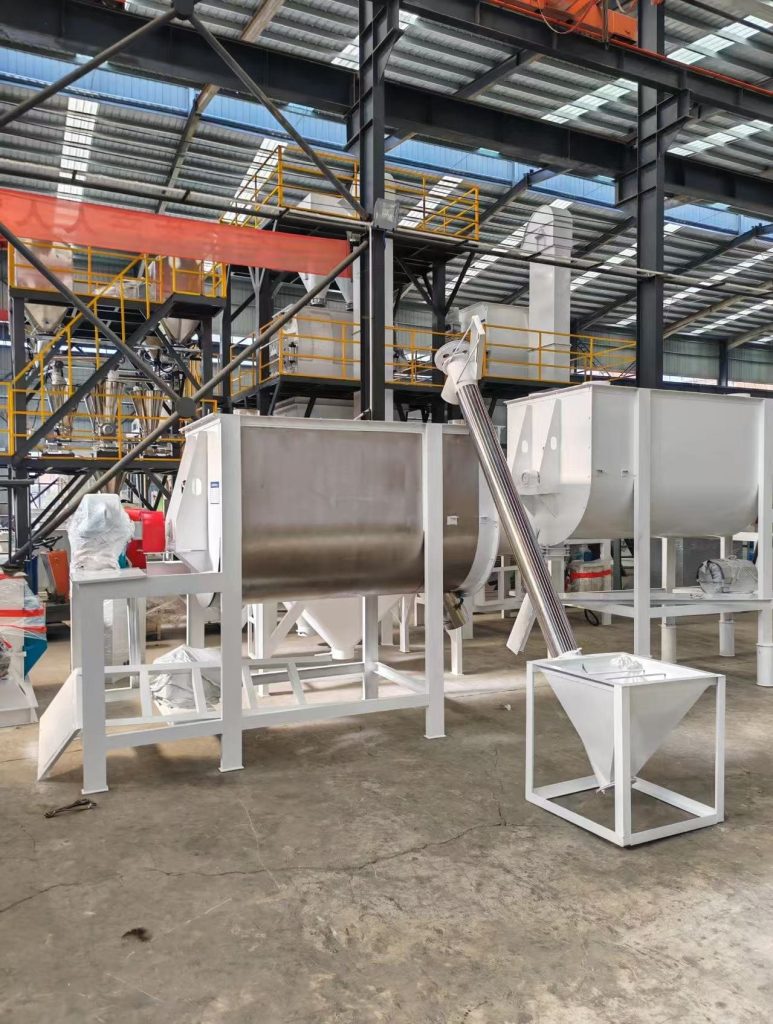

Ribbon blender are used to mix which of the following？

Ribbon blenders are primarily used to mix cohesive (sticky) powders and granules, and are especially valuable in situations where liquids or pastes need to be thoroughly blended into these dry materials. This core capability makes them indispensable workhorses across a wide range of industries where achieving a uniform blend of challenging materials is critical to product quality and performance. Their unique design tackles the difficulties of mixing materials that naturally want to clump together or resist incorporating added wet ingredients.

Where Ribbon Blenders Shine: Core Applications

The ability of ribbon blenders to handle cohesive solids and incorporate liquids effectively translates into dominance across several key sectors:

• Chemicals: This is a major playground for ribbon blenders. They excel at mixing fine, often cohesive powders like pigments and dyes, ensuring consistent color distribution. They are vital for producing developer powders used in photography and printing, blending plastic additives (like fillers, stabilizers, and colorants) uniformly into polymer bases, and mixing complex formulations for detergents, cleaning agents, and water treatment chemicals. The thoroughness of the ribbon action breaks up agglomerates and ensures every particle interacts.
• Pharmaceuticals: Precision and uniformity are non-negotiable in pharma. Ribbon blenders are trusted for blending active pharmaceutical ingredients (APIs) like aspirin or penicillin powders with excipients (inactive carriers) to create uniform tablet or capsule formulations. They also handle the mixing of powdered precursors and intermediate compounds where consistency is paramount for downstream processing and final drug efficacy.
• Food Processing: The food industry relies on ribbon blenders for consistent blending of dry additives and ingredients. This includes thoroughly mixing vitamins, minerals, and flow agents into base powders like flour or starch, creating uniform spice blends, ensuring even distribution of leavening agents in baking mixes, and blending powdered milk or protein supplements. They are also used for incorporating oils or viscous flavorings into dry mixes.
• Animal Feed: Producing nutritionally balanced feed is essential. Ribbon blenders homogeneously mix various grains (like corn or wheat), protein meals (like soybean or fish meal), vitamins, minerals, and powdered supplements. This ensures every bite of feed or pet food provides the intended nutritional profile, preventing selective eating and promoting animal health. They can also handle the addition of liquid fats or molasses for palatability and energy content.
• Building Materials & Paints: Ribbon blenders handle the mixing of dry cementitious powders, plasters, and grouts with additives. They are particularly adept at blending fine powders like pigments and fillers into base materials for paints and coatings, and are essential for producing uniform dry-mix mortars. Their capability to incorporate measured amounts of liquids or low-viscosity resins is crucial here.
• Other Industries: Their versatility extends to mixing powdered metal components for metallurgy, blending ceramic powders and glazes, formulating dry pesticides and fertilizers, and combining battery electrode materials. Essentially, any process requiring a thorough, gentle-yet-effective blend of powders, potentially with liquid addition, is a candidate for a ribbon blender.

What Exactly Can They Mix? Material Compatibility

Ribbon blenders are designed for specific material characteristics. They excel with:

1. Powder-to-Powder Mixing: This is their fundamental strength. Whether it’s blending different pigments for paint, combining flour and baking soda, mixing vitamins into a protein powder base, or combining various chemical powders like dyes and fillers, the ribbon blender’s action promotes excellent intermingling. The rotating ribbons lift material from the bottom and move it towards the center, while simultaneously moving material from the ends towards the center. This complex convective flow pattern ensures particles constantly change position relative to each other, leading to high uniformity, even with cohesive materials that resist mixing.
2. Powder + Low-Viscosity Liquid/Paste Mixing: Ribbon blenders truly shine here. Adding liquids like water, oils, solvents, or low-viscosity resins, syrups, or pastes to a powder base is a common challenge. The blender’s action continuously folds the wet material into the dry bulk. As the ribbons rotate, they create a “turning over” motion. Dry powder cascades over the wetter mass underneath, while the ribbons scrape the walls and bottom, preventing dead zones where unmixed material could accumulate. This constant folding and kneading action gradually and uniformly disperses the liquid phase throughout the powder. Examples include adding water to mortar mix, blending oils into breadcrumb coatings, incorporating liquid binders into ceramic powders, or adding liquid flavors to dry snack seasonings.
3. Mixing Viscous Materials: Ribbon blenders are surprisingly capable with thicker pastes, putties, and dough-like materials (e.g., wall putty/plaster, metal powder pastes for sintering, thick ointments or cosmetic creams, some food doughs). While not as powerful as specialized kneaders for extremely heavy doughs, the continuous folding and stretching action generated by the ribbons provides effective mixing for moderately viscous materials. The close clearance between the ribbon tips and the trough wall ensures thorough scraping and prevents material buildup, crucial for uniform mixing in viscous blends.
4. Solid-Slurry Mixing: This involves blending free-flowing powders with thicker slurries or wet granules. Ribbon blenders handle this effectively by combining the convective powder mixing action with the kneading action needed for the slurry. Examples include mixing dry powders into pre-made paste bases for adhesives or coatings, combining dry ceramic materials with a clay slip, or formulating pesticide granules where active ingredients in paste form are coated onto carrier particles.

Understanding Their Limits: What They Don’t Mix Well

While versatile, ribbon blenders aren’t universal mixers. Key limitations include:

• High-Fiber Materials: Materials like long wood fibers, shredded paper, or certain plant fibers tend to tangle and wrap around the ribbon shaft. This can impede mixing, damage the agitator, or even stall the motor. The gentle convective flow isn’t designed to disentangle fibers effectively.
• Materials with Extreme Density Differences: If the components in a mix have vastly different weights (e.g., lead shot mixed with plastic flakes or very fine talc mixed with large plastic pellets), the mixing action might struggle to prevent segregation. During mixing, gravity can cause heavier particles to sink, while lighter particles float, counteracting the blender’s homogenizing efforts. While ribbon blenders are generally better than some mixers at handling moderate density differences, extremes are problematic.
• Very Friable Materials: Extremely fragile particles that break easily under shear (e.g., certain delicate crystals or flakes) might be damaged by the constant movement and mild shear within the blender, altering the desired particle size distribution.
• Continuous Mixing: Ribbon blenders are inherently batch processors. They load a fixed volume, mix it, discharge it, and then repeat. They are not designed for continuous feeding and discharge of material streams.
• Cleaning Challenges: Their design, with fixed ribbons inside a U-trough, makes thorough cleaning between batches more difficult than simpler mixers like tumble blenders. Residue can cling to ribbons and the trough walls. This makes them less ideal for facilities producing many different products in small batches unless equipped with specialized cleaning systems. They excel in high-volume, dedicated production lines running the same or similar materials.

The Ribbon Blender Design: How It Achieves Its Mixing Magic

The effectiveness of the ribbon blender stems directly from its robust and relatively simple design:

• U-Shaped Horizontal Trough: This is the main vessel, typically constructed from robust steel. The U-shape provides efficient volume utilization and promotes the characteristic convective flow pattern. The trough often has a double-wall jacket surrounding it.
• Dual Helical Ribbon Agitator: Mounted horizontally along the length of the trough is a shaft carrying two distinct helical ribbons:
  • Outer Ribbon: Positioned close to the trough wall (small clearance), with a helix designed to move material longitudinally towards one end (usually the discharge end) as it rotates.
  • Inner Ribbon: Smaller in diameter, with a helix pitched in the opposite direction. It moves material towards the other end.
• The Mixing Mechanism: When the shaft rotates (typically driven by an electric motor via a gear reducer), the opposing ribbons create powerful, counter-current flows within the trough.
  • The outer ribbon scoops material near the wall and moves it towards one end.
  • The inner ribbon moves material near the center towards the opposite end.
  • This sets up a continuous convection current: Material is constantly being lifted from the bottom, moved radially inward or outward, and transported longitudinally along the length. Particles travel in complex, overlapping paths, ensuring every particle repeatedly encounters particles from all other parts of the batch. This gentle tumbling and folding action minimizes heat generation and particle damage while maximizing uniformity.
• Heating/Cooling Capability: The double-wall jacket is a key feature. Heating fluids (like hot oil or steam) or cooling fluids (like chilled water) can be circulated through this jacket. This allows precise temperature control of the mixture during blending – crucial for reactions, melting components, preventing heat-sensitive material degradation, or setting/curing processes. The close contact between the jacket and the trough material ensures efficient heat transfer.
• Discharge: Efficient emptying is vital. Ribbon blenders typically feature large discharge ports at the bottom of the trough, centered along its length. These are sealed during mixing by either:
  • Large Pneumatic Slide Gate: A flat valve that slides open horizontally, offering a full-width opening for rapid, complete discharge, minimizing residue. This is the most common and efficient type.
  • Manual or Pneumatic Butterfly Valve: A rotating disc valve. While simpler, it can leave more residue than a full-width slide gate, especially with cohesive materials.

Why Choose a Ribbon Blender? Key Advantages

• High Mixing Uniformity: The convective flow pattern achieves excellent homogeneity, often exceeding 95% uniformity, even with challenging cohesive powders and liquid additions.
• Gentle Yet Effective Handling: Minimizes particle degradation or damage to fragile components due to the lack of high-speed impact or intense shear zones found in some other mixers.
• Efficient Liquid/Paste Incorporation: The folding and kneading action is exceptionally well-suited for uniformly dispersing liquids and pastes into dry powders.
• Short Mixing Cycles: The efficient convective flow typically achieves homogeneity within 5 to 15 minutes per batch, making them productive.
• Temperature Control: The jacketed design allows for heating or cooling during the mixing process, enabling reactions, melting, or temperature-sensitive processing within the same vessel.
• Robust Construction: Built for industrial environments, handling abrasive materials with proper wear protection (liners, hardened ribbons).
• Simple Operation & Maintenance: Relatively straightforward mechanical design (motor, gearbox, shaft, ribbons) translates to easier maintenance compared to more complex mixers. Direct-drive systems further simplify the design.

In conclusion, the ribbon blender’s mastery lies in its unique ability to conquer the challenges of mixing sticky powders and incorporating liquids or pastes. Its robust U-trough design, powered by counter-rotating helical ribbons, creates a powerful yet gentle convective flow that ensures exceptional uniformity. While not suited for everything – particularly fibrous materials or extreme density differences – its versatility, efficiency, and capability for temperature-controlled mixing solidify its position as an essential piece of equipment in industries ranging from chemicals, pharmaceuticals, and food to feed, building materials, and beyond, wherever consistent blending of cohesive solids and wet additions is paramount.

Food Producing Process Flow:

Ultrafine grinding is one of the very key procedure in whole production line. It depends how many mesh that customer need to produce. That’s to say this machine can decide what kind of material will get finally before mxing.

Coarse Crusher Machine —>Grinding Machine —> Vibrating Table Sifter Machine—>Mixing Machine—>Packing Machine —> (Printed Packaging Film Roll or bags ) —> Filling, sealing machine, capping and Labeling Machine —>Pack into Box.
