Ribbon blender for powder mixing.

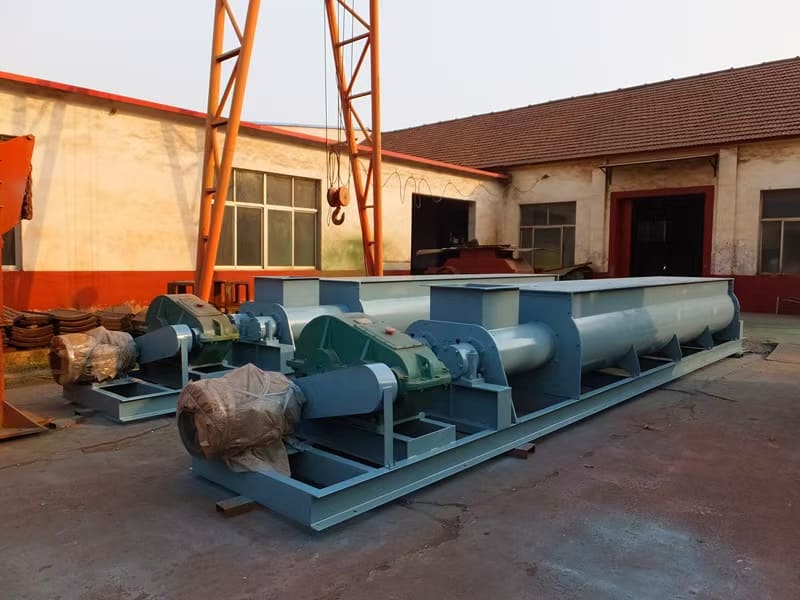

What is a ribbon blender for powder mixing?

In the field of powder material processing, the ribbon blender (also known as a ribbon mixer or paddle mixer) stands out as a highly efficient and versatile piece of equipment, widely used in industries such as chemicals, food, pharmaceuticals, building materials, and metallurgy. Its core strengths lie in its ability to handle powders with varying flow properties, significant density differences, or those containing trace additives. The unique structural design and working principle of the ribbon blender make it indispensable for large-scale powder mixing operations. Below, we delve into its structure, working mechanism, performance characteristics, applications, and operational considerations.

I. Structural Composition: Modular Design Centered on “Ribbon Mixing”

The structure of a ribbon blender typically consists of the mixing vessel, the drive system, the ribbon mixing assembly, the feeding and discharge mechanisms, and auxiliary systems (such as heating/cooling jackets and dust collection units). These components work together to achieve uniform powder blending.

The mixing vessel is usually a horizontal cylindrical container (with some specialized models featuring U-shaped or conical designs). Material selection for the vessel is critical and depends on the powder being processed. Common choices include carbon steel for non-corrosive materials, stainless steel (especially AISI 304 or 316L) for food, pharmaceutical, and corrosive applications, and plastic- or ceramic-lined vessels for highly aggressive materials. The vessel has end caps at both ends. The top typically features inlet ports, inspection windows, and dust extraction ports. The bottom is designed with an inclined or slide-gate discharge outlet, enabling rapid, complete material evacuation and minimizing residue.

The ribbon mixing assembly is the heart of the machine. It comprises a central shaft onto which ribbon-like blades (or paddles) are welded. The shape, pitch (distance between turns), and number of ribbons are crucial factors influencing mixing efficiency. Most blenders employ a dual-ribbon configuration: an outer ribbon, usually left-handed (counter-clockwise spiral), and an inner ribbon, usually right-handed (clockwise spiral) – or vice versa. Critically, the outer ribbon is often slightly longer than the inner one. This design ensures simultaneous axial (lengthwise) and radial (crosswise) movement of the powder. Larger units or those handling highly viscous or easily agglomerated powders may feature three or even more ribbon layers. The clearance between the ribbon tips and the vessel wall is minimal, typically maintained between 5-10mm. This tight tolerance prevents material buildup on the walls, significantly enhancing blend uniformity.

The drive system provides the necessary power to rotate the mixing assembly. It consists of an electric motor, a gear reducer, and a coupling. Motor power is selected based on vessel capacity and the density of the materials being processed. Variable Frequency Drive (VFD) motors are commonly used, allowing operators to adjust the mixing intensity by varying the rotational speed (typically between 5 to 50 RPM). The gear reducer transforms the motor’s high-speed rotation into the low-speed, high-torque motion required by the ribbons, ensuring stable operation even under heavy loads.

Auxiliary systems are added based on specific process requirements. For heat-sensitive powders (e.g., food additives, certain pharmaceuticals), a jacketed heating/cooling system can be installed. This jacket circulates hot water, steam, or coolant to precisely control the temperature within the vessel. When handling powders prone to dusting (e.g., cement, talc, pigments), dust collection systems like pulse-jet baghouses or cartridge filters are essential. These systems create negative pressure to capture airborne particles at source points (like the inlet and inspection ports), minimizing environmental contamination and ensuring operator safety.

II. Working Principle: The “Convection-Shear-Diffusion” Mechanism Driven by Multi-Dimensional Movement

The mixing process in a ribbon blender relies on the multi-dimensional material movement generated by the rotating ribbons, enabling highly efficient powder homogenization. The core principle involves the synergistic action of “axial convection, radial shear, and diffusion mixing.”

As the ribbons rotate with the central shaft, the outer ribbon pushes material near the vessel wall axially towards one end. Simultaneously, the inner ribbon drives material in the central core region axially in the opposite direction. This counter-current flow creates a powerful axial convection loop, continuously circulating material along the length of the blender. Concurrently, because the inner and outer ribbons rotate at the same speed but have different radii (the outer ribbon has a larger diameter), the linear speed of the outer ribbon is significantly higher than the inner one. This speed difference generates intense radial shear forces within the powder bed. These forces effectively break apart agglomerates, de-lump particles, and promote intimate contact between different components. Furthermore, under the combined influence of convection and shear, particles of varying densities, sizes, and shapes constantly intermingle and diffuse throughout the entire volume. This diffusion process occurs at both the macro and micro levels, ultimately leading to a homogeneous mixture.

This sophisticated motion mechanism allows ribbon blenders to handle a remarkably wide range of materials: from free-flowing, lightweight powders like flour or milk powder, to dense, poorly flowing powders like metal powders or mineral ores. They can even successfully mix powders containing small amounts of liquid binders or form pastes, although slight modifications to ribbon design (e.g., heavier paddles, reduced clearance) might be necessary for optimal results with very sticky materials.

III. Performance Characteristics: Advantages in Efficiency, Uniformity, and Flexibility

Compared to other powder mixing technologies like drum tumblers or vertical screw mixers, ribbon blenders offer distinct performance advantages:

High Mixing Efficiency and Superior Uniformity: The forced convective action of the ribbons ensures long, complex particle trajectories with virtually no dead zones within the vessel. Typical mixing times range from just 5 to 30 minutes (adjustable based on material properties), significantly faster than slower diffusive methods like tumbling. Blend uniformity, measured by the Coefficient of Variation (CV), can consistently be controlled below 3%. High-precision models can achieve CV values under 1%, meeting the stringent requirements of the pharmaceutical and electronics industries for critical powder blends.

Exceptional Versatility and Broad Processing Range: Ribbon blenders accommodate particle sizes ranging from microns (e.g., nano-powders) up to several millimeters (granules). They can effectively mix components with density ratios as high as 1:10 (e.g., blending lightweight calcium carbonate with iron powder). They also tolerate a certain percentage of fibrous or flaky materials (e.g., adding short fibers to plastic powders). Their tolerance for moisture is notable; powders containing 5%-10% moisture (provided they haven’t formed hard lumps) can often be mixed successfully without significant issues.

Low Residuals and Easy Cleaning: The minimal clearance between ribbons and vessel wall drastically reduces material hang-up. Combined with the inclined or full-discharge bottom design, residual material left in the blender after discharge is typically below 0.1% of the batch weight. For applications requiring frequent product changes (common in food or pharmaceutical multi-product facilities), blenders constructed from polished stainless steel can be integrated with Clean-in-Place (CIP) systems. These systems use strategically placed spray balls to automatically clean the interior with cleaning solutions, rinses, and sanitizers, ensuring no cross-contamination between batches.

Robust Operation and High Scalability: Ribbon blenders operate with low vibration and noise levels (generally ≤85 dB), making them suitable for continuous operation in industrial settings. Their modular design allows for extensive integration with automation: load cells for precise ingredient addition, automated inlet and discharge valves, and Programmable Logic Controller (PLC) systems. PLCs can control mixing time, ribbon speed, discharge sequences, and even record batch data. This automation facilitates integration into larger production line control systems, significantly boosting overall process efficiency and repeatability.

IV. Application Scenarios: Covering Basic Blending to Specialized Processes

Ribbon blenders find application in virtually every industry requiring powder mixing, excelling particularly in these areas:

• Chemical Industry: Essential for blending pigments, dyes, plastic additives (like stabilizers, fillers, colorants), catalysts, and detergent powders. For instance, achieving consistent color distribution requires thorough mixing of different pigment powders with fillers like talc.
• Food & Pharmaceutical Industries: In food processing, they blend flour, starches, spices (like chili powder), flavorings, dry soup mixes, and nutritional powders (protein, vitamin premixes). In pharmaceuticals, they ensure uniform distribution of active pharmaceutical ingredients (APIs) with excipients (like lactose, microcrystalline cellulose) for tablets and capsules, where content uniformity is paramount for efficacy and safety.
• Building Materials & Metallurgy: Used in building materials for homogenizing cement, gypsum, dry mortar additives (e.g., plasticizers, air-entrainers), and plaster compounds. In metallurgy, they prepare blends of metal powders (iron, copper, tungsten) with binders and lubricants before pressing and sintering to form metal parts.
• Environmental Applications: Employed for mixing industrial waste streams (like fly ash, slag) with solidification/stabilization agents (e.g., cement, lime) for safe disposal or resource recovery.

V. Operation and Maintenance: Keys to Long-Term Reliability

Critical Operating Procedures: Before starting the blender, always check the clearance between the ribbons and vessel wall to prevent friction due to misalignment or damage. Ensure feed and discharge ports are clear. The optimal loading sequence is to first add the bulk powder, then gradually introduce minor components or additives (like micro-doses of pigments or active ingredients). This prevents the additives from clumping together prematurely. During mixing, monitor the material state through the inspection window. If agglomeration (“balling”) is observed, a slight increase in ribbon speed or a longer mixing time may be needed. When discharging, keep the ribbons rotating until the vessel is completely empty to minimize residue clinging to the moving parts.

Essential Maintenance Practices: Regular lubrication is vital. Check oil levels in gear reducers according to the manufacturer’s schedule and change the oil typically every 3-6 months. After processing hygroscopic (moisture-absorbing) or corrosive powders, thoroughly clean residue from the vessel interior and ribbon surfaces. Periodically inspect the weld points where ribbons attach to the central shaft for any signs of cracking or loosening. If ribbons become bent or deformed, they must be repaired or replaced promptly, as damage significantly impacts mixing efficiency and uniformity.

Conclusion

The ribbon blender, with its core design principle of “ribbon-induced forced convection,” delivers an unparalleled combination of efficiency, uniformity, and adaptability in powder mixing. It meets the high-throughput demands of large-scale industrial production while simultaneously satisfying the rigorous quality standards of precision industries like pharmaceuticals. Its modular construction allows seamless integration with heating/cooling, dust control, and advanced automation systems, making it exceptionally flexible for diverse material properties and complex process requirements. Whether handling simple dry powder blends or complex mixtures involving multiple components with different physical forms, the ribbon blender, through careful optimization of ribbon geometry and operating parameters, consistently provides a robust and reliable mixing solution, cementing its status as a cornerstone technology in powder processing.

Food Producing Process Flow:

Ultrafine grinding is one of the very key procedure in whole production line. It depends how many mesh that customer need to produce. That’s to say this machine can decide what kind of material will get finally before mxing.

Coarse Crusher Machine —>Grinding Machine —> Vibrating Table Sifter Machine—>Mixing Machine—>Packing Machine —> (Printed Packaging Film Roll or bags ) —> Filling, sealing machine, capping and Labeling Machine —>Pack into Box.
