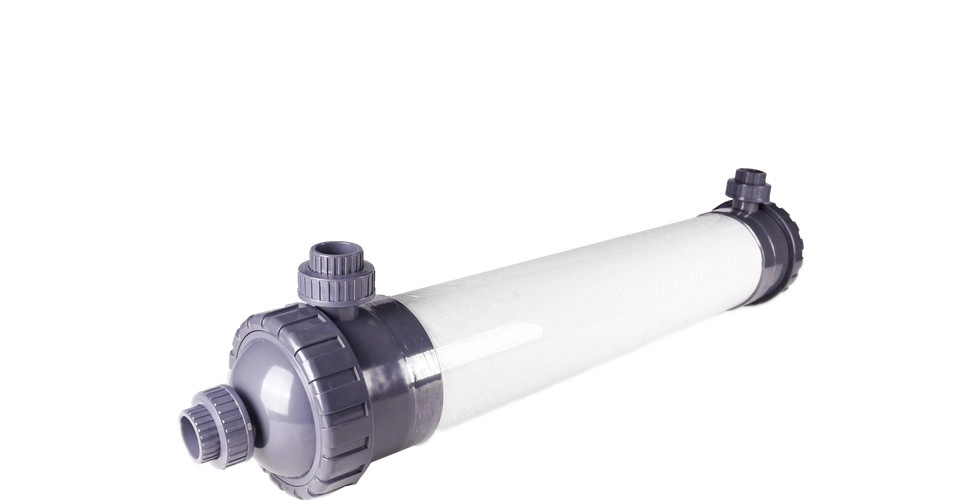

What is an ultrafine filter?

What is an ultrafine filter? Designed to capture microscopic particles, colloids, and suspended contaminants in liquids or gases at the micron (µm) and sub-micron (<1 µm) scale, an ultrafine filter is a high-precision filtration device that far outperforms conventional coarse or fine filters. These systems, which act as the last line of defense against minuscule contaminants, are essential for safeguarding delicate machinery, guaranteeing the purity of process fluids, and fulfilling strict hygiene requirements in sectors ranging from pharmaceuticals to precision manufacturing. Let’s examine their purpose, architecture, and practical effects.

Core Function: The Invisible Shield for Critical Systems

Ultrafine filters operate as microscopic gatekeepers, performing three vital roles:

1. Guardian of Precision Machinery: In high-tolerance systems like CNC spindle bearings (clearances of 5–10 µm) or hydraulic servo valves, even sub-10 µm metal shards or sludge from a grinding machine can cause catastrophic wear or jamming. Ultrafine filters trap these particles, extending component lifespan by 200–400% in documented cases.
2. Fluid Integrity Manager: They maintain the physicochemical stability of process fluids. For instance, in metalworking, unfiltered coolant accumulates abrasive swarf (often <15 µm), degrading lubricity and causing surface defects on precision-machined parts. Ultrafine filtration preserves fluid viscosity, pH, and thermal conductivity.
3. Enabler of Ultra-Clean Processes: Semiconductor fabrication demands ultrapure water with <5 particles/mL larger than 0.1 µm. Similarly, medical device coating requires contaminant-free solvents. Ultrafine filters achieve this by removing bacteria, endotoxins, and nanoparticles that evade conventional filters.

Anatomy of an Ultrafine Filter: Precision Engineered for Microscopic Warfare

Liquid ultrafine filters integrate robust construction with advanced media:

1. Filter Housing: The Pressure Vessel

• Material Science: Stainless steel (SS 316L for corrosive fluids) handles 1–40 MPa pressures in hydraulic systems. Engineering thermoplastics like PVDF resist acids/alkalis in chemical processing.
• Sealing: Dual O-rings (e.g., FKM fluorocarbon for oils, EPDM for water) prevent fluid bypass – a critical failure mode where unfiltered liquid shortcuts the element.

2. Filter Media: The Capture Engine

Performance hinges on media selection:

Example: A “graded density” design combines coarse glass fiber (trapping 10 µm debris from a coolant grinding machine) with a PTFE membrane terminal layer (catching 0.2 µm silica particles).

3. Support & Auxiliary Systems

• End Caps/Support Tubes: Reinforced polypropylene cores prevent media collapse at 30+ bar differential pressure.
• Anti-Drain Valves: Prevent dry starts in lube systems.
• Differential Pressure Gauges: Signal clogging (∆P > 1.5 bar triggers maintenance).

Key Technical Specifications: The Selection Blueprint

Selecting an ultrafine filter requires matching specs to operational demands:

1. Absolute Rating (βₓ≥200): The gold standard. A “β₁₀₀=500” rating means 99.8% of 1 µm particles are captured. Avoid nominal ratings – they’re marketing terms with inconsistent capture rates.
2. Flow Rate vs. Viscosity: A 10 µm filter flows 100 L/min @ 32 cSt (hydraulic oil), but only 40 L/min @ 220 cSt (gear oil). Undersizing causes flow starvation; oversizing reduces capture efficiency.
3. Dirt Holding Capacity (DHC): Measured in grams. A high-DHC cellulose depth filter (50g) lasts 6x longer than a membrane (8g) in dirty hydraulic systems but sacrifices precision.
4. Pressure/Temperature Limits: Hydraulic filters withstand 420 bar surges; steam filters tolerate 150°C. Exceeding limits risks housing rupture or media delamination.
5. Material Compatibility: NBR seals swell in biodiesel; cellulose media degrades in water-glycol. ASTM D471 compatibility testing is non-negotiable.

Industrial Applications: Where Microscopic Filtration Delivers Macro Value

1. Hydraulic Systems: Preventing $50,000 Valve Failures

• Problem: ISO 4406 16/14/11 cleanliness (common in mobile hydraulics) allows 8,000 particles/mL >4 µm. Servo valves fail at >5,000 particles/mL >5 µm.
• Solution: 3 µm absolute return-line filters reduce contamination to ISO 14/12/9 (<1,600 particles/mL >4 µm). Result: 90% reduction in pump/valve replacements.

2. Precision Machining: Enabling Mirror Finishes

• Scenario: A cylindrical grinding machine producing bearing races (Ra 0.1 µm) recirculates coolant. Unfiltered, aluminum oxide abrasives (1–20 µm) scratch surfaces.
• Fix: Multi-pass 5 µm bag filter → 1 µm polypropylene depth filter. Outcome: Surface defect rate drops from 12% to <0.5%.

3. Compressed Air: Protecting Pneumatic Robotics

• Contaminants: Aerosolized oil (0.3–1 µm), pipe scale, moisture.
• Filtration Stack:
• Coalescing filter (removes liquids) →
• Activated carbon (vapor removal) →
• 0.01 µm membrane (bacteria/particulates)
• Impact: Prevents sticky valve stems in automotive assembly robots.

4. Energy & Transportation: Extending Service Life

• EV Battery Cooling: 0.5 µm filters prevent glycol degradation from carbon fines, maintaining thermal efficiency.
• Turbine Lube Oil: 3 µm absolute filters capture fatigue spall (10–30 µm) from bearings, avoiding $1M+ turbine rebuilds.

The “Charger” Connection: Smart Filtration Systems

Modern ultrafine filters integrate electronics for predictive maintenance:

• Wireless ∆P Sensors: Transmit real-time clogging data to plant SCADA.
• Auto-Regeneration: Backflush sequences triggered when ∆P exceeds 2 bar (e.g., sintered metal filters).
• Battery Backup: Critical in safety systems; a charger maintains backup power for ∆P alarms during outages.

The Cost of Neglect: Real-World Consequences

Case Study: A gearbox manufacturer skipped ultrafine filtration (citing cost). Result:

• 40 µm particles scored bearings within 200 operating hours.
• Unplanned downtime: $18,000/hour × 32 hours = $576,000.
• Filter retrofit cost: $24,000.
  Lesson: Ultrafine filtration isn’t an expense – it’s insurance against 6-figure failures.

Conclusion: The Unseen Enabler of Precision

Ultrafine filters are the unsung heroes of industrial reliability. From capturing tungsten carbide dust in a grinding machine coolant to ensuring sterility in vaccine production, their sub-micron efficiency safeguards both equipment and product quality. Success hinges on:

• Selecting media based on absolute rating and DHC
• Matching materials to fluid chemistry
• Integrating sensors for proactive maintenance
  As tolerances tighten and purity demands escalate, these microscopic defenders will only grow more critical – proving that sometimes, the smallest components deliver the largest impact.
