What is an ultrafine grinder?

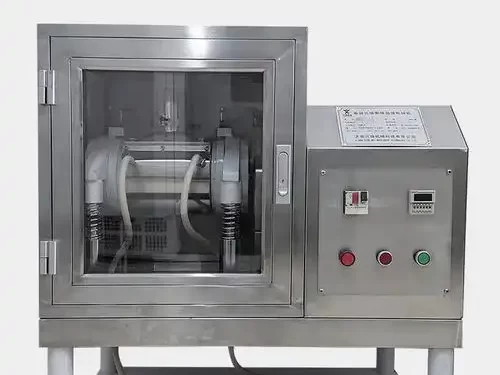

What is an ultrafine grinder? An ultrafine grinder is a specialized grinding device that produces much finer results than traditional crushers or mills by reducing solid materials into particles that range from 1 to 100 micrometers (µm) down to sub-micron levels (<1 µm).** From the production of pharmaceuticals to the aerospace industry, this high-precision size reduction opens up revolutionary material properties. Ultrafine systems use increased mechanical, fluid, or thermal energy to overcome molecular cohesion, allowing for improvements in product performance, reactivity, and process efficiency. This is in contrast to standard grinders, which usually produce particles larger than 100 µm.

Core Functions and Industrial Value: Beyond Size Reduction

Ultrafine grinding transcends mere particle shrinkage; it fundamentally alters material behavior to solve industrial challenges. When materials like metals, ceramics, or polymers are micronized, their surface area exponentially increases—a 1 mm particle ground to 1 µm sees a 1,000× surface expansion. This triggers three key value drivers:

1. Enhanced Reactivity and Functional Performance: Larger surface areas accelerate chemical reactions, dissolution rates, and adsorption capacity. For example, micronized metal powders (e.g., stainless steel at D50=5 µm) sinter more densely in 3D printing or powder metallurgy, strengthening final parts like gear components or bearing rings. In batteries, nano-grinded electrode materials boost energy storage and charging speed due to improved ion mobility.
2. Precision Manufacturing Enablement: Consistent sub-10 µm particle distributions ensure uniformity in downstream processes. Coatings for industrial tools (e.g., tungsten carbide on tunnel-boring machinery) adhere more uniformly when hard-phase particles are refined to 5–20 µm, preventing defects like pitting or delamination. Similarly, ceramic powders for seals or balls require ≤1 µm fineness to achieve fracture-resistant density during firing.
3. Processing “Uncrushable” Materials: Brittle ceramics, elastic rubbers, or heat-sensitive polymers defy conventional grinding. Ultrafine grinders overcome this via specialized designs: cryogenic systems embrittle rubber at -196°C using liquid nitrogen, while inert-gas air jets in fluidized-bed mills prevent thermal degradation of antibiotics during micronization.

Mechanisms and Machine Types: Precision Engineering for Diverse Demands

Ultrafine grinders deploy distinct technologies tailored to material properties. Key designs include:

1. Jet Mills (Pneumatic Grinding): For Brittle, Heat-Sensitive Materials

• Structure & Workflow: A closed-loop system with nozzles, a grinding chamber, an air compressor, and a classifier wheel. The air compressor (often linked to a high-power charger) generates 6–10 bar pressure, accelerating gas to supersonic speeds. Particles collide violently inside the chamber—against walls or each other—before a spinning classifier ejects oversized fragments back for re-grinding.
• Advantages: Zero contamination (no moving parts touch material), sub-5 µm output, and intrinsic cooling from gas expansion. Ideal for ceramics like alumina or heat-sensitive APIs.
• Limitations: High energy use (≈3× conventional mills); struggles with sticky or fibrous materials.

2. Mechanical Grinders: For Medium-Hard or Slightly Viscous Materials

• Colloid Mills (Wet Grinding): Shear-based systems with a rotor-stator gap as narrow as 0.01 mm. At 5,000–15,000 RPM, they emulsify slurries like lubricating greases or metal pastes into 1–20 µm particles.
• Agitated Media Mills: Use grinding beads (0.03–2 mm ceramic or steel balls) stirred by rotors. Vertical roller variants like the LUM series achieve 400–1,500 mesh (38–5 µm) for calcium carbonate, leveraging large-scale efficiency at 8–18 t/h.
• Wear Management: Critical for longevity. Tungsten carbide-lined chambers or zirconia beads resist abrasion from hard minerals, while sealed bearings prevent dust ingress.

3. Cryogenic Grinders: For Elastomers, Plastics, or Biologicals

• Process: Materials like nylon fibers or rubber scraps are pre-cooled with liquid nitrogen (-196°C), fed into an impact mill or jet stream, and shattered while brittle. Temperature sensors ensure sustained cold throughout grinding.
• Applications: Recycles tire rubber into 50 µm powder for new composites or preserves volatile compounds in spices without thermal degradation.

Critical Specifications: Selecting the Right Grinder

When investing in ultrafine grinding technology, manufacturers prioritize five metrics:

1. Fineness & Particle Distribution:
   D90 (90% of particles below this size) defines usable yield—e.g., D90≤5 µm for inhalable drugs. Tight distribution (D90/D50 < 2) prevents coarse “tail” particles from ruining coatings or alloys.
2. Throughput vs. Energy Efficiency:
   Jet mills may process 50 kg/h of silica but consume 30 kW·h/ton. Media mills offer better efficiency for soft materials (e.g., 10 kW·h/ton for limestone to 10 µm) but require larger footprints.
3. Material Versatility:
   • Hardness: Alumina (Mohs 9) demands diamond-coated mills or zirconia media.
   • Heat Sensitivity: Temperature-controlled chambers or cryogenic support prevent degradation.
   • Stickiness: Anti-adhesion coatings or liquid-nitrogen chilling avoid clogging.
4. Durability and Maintenance:
   Wear-resistant builds (e.g., sintered metal components in ANCA’s Ultra Range grinders) extend service life. Quick-disassembly designs simplify cleaning between material batches.
5. Contamination Control:
   Ceramic or polymer internals ensure metal-free outputs for battery materials or pharmaceuticals. HEPA filters capture airborne nanoparticles during discharge.

Industry Applications: Where Ultrafine Grinding Creates Value

• Metal Powder Production: Gas-atomized steel or titanium powders (D50=5–20 µm) enable complex 3D-printed aerospace parts with near-zero porosity.
• Advanced Ceramics: Alumina/zirconia ground to ≤1 µm form seals and bearings 30% tougher than coarse-grain equivalents.
• Battery Tech: Cathode materials like NMC (nickel-manganese-cobalt) achieve uniform 10 µm particles via wet media milling, boosting EV battery cycle life by 20%.
• Recycling: Cryogenic grinding converts discarded tires into 100–200 µm rubber powder for asphalt or playground surfaces, diverting waste from landfills.

The Future: Smarter, Efficient, and Integrated Systems

Emerging trends focus on sustainability and intelligence:

• AI Optimization: Sensors track particle size in real-time, adjusting mill speed or gas flow via closed-loop control—reducing waste 15–30%.
• Energy Recovery: Regenerative braking in motor drives (like those in ANCA’s Ultra grinders) feeds power back to the charger, cutting net consumption.
• Hybrid Systems: Combined jet-mechanical mills (e.g., fluidized-bed opposed jets) now achieve nano-ranges at lower pressures, slashing energy use 40%.

Conclusion: The Silent Engine of Advanced Manufacturing

By turning waste plastic into building materials, metal scraps into rocket components, and raw ore into life-saving medications, ultrafine grinders are innovators. These devices unlock latent properties in even the most recalcitrant materials by mastering the sub-micron realm. Cryo-grinding makes it possible to recycle rubber, but it is more expensive. A jet mill works well for brittle minerals, but it struggles with gummed polymers. These precision grinding machines will continue to be essential as industries strive for nanoscales and zero-waste cycles, demonstrating that the unthinkably small can hold enormous power.

Food Producing Process Flow:

Ultrafine grinding is one of the very key procedure in whole production line. It depends how many mesh that customer need to produce. That’s to say this machine can decide what kind of material will get finally before mxing.

Coarse Crusher Machine —>Grinding Machine —> Vibrating Table Sifter Machine—>Mixing Machine—>Packing Machine —> (Printed Packaging Film Roll or bags ) —> Filling, sealing machine, capping and Labeling Machine —>Pack into Box.
