Ribbon blender maintenance manual?

Following a systematic maintenance program is essential for maximizing the performance, lifespan, and safety of your ribbon blender. Neglecting regular care leads to premature wear, unplanned downtime, costly repairs, and potential safety hazards. This detailed manual provides clear, step-by-step instructions for all critical maintenance and operational aspects.

I. Daily Equipment Inspection: Your First Line of Defense

A thorough daily inspection is the cornerstone of preventing unexpected breakdowns. Before starting operations, visually and physically examine the entire blender. Check the ribbon agitators (inner and outer helices) for signs of bending, cracking, or excessive wear, especially on the leading edges. Inspect all bearings (typically located at the drive end and sometimes the opposite end) for unusual noises, heat, or visible grease leakage. Examine shaft seals meticulously for any powder leakage, which indicates wear and potential contamination risks. Physically verify that all fasteners – bolts, nuts, clamps securing the motor, gearbox, end covers, and access doors – are tight and secure; loose hardware causes vibration, misalignment, and component failure. Perform a brief operational check: Listen attentively for unusual grinding, knocking, or screeching sounds during startup and run. Observe the motor and gearbox for smooth operation without excessive vibration. Test safety interlocks (if equipped on access doors) to ensure they function correctly, immediately cutting power if opened during operation. Documenting these checks helps identify developing trends.

II. Rigorous Cleaning Procedures: Preventing Buildup & Contamination

Maintaining impeccable cleanliness inside and out is non-negotiable for performance, product quality, and safety. After every batch, empty the blender completely. Use appropriate manual tools (plastic scrapers, brushes with non-sparking handles) to remove residual material clinging to ribbons, shafts, and the vessel walls. Pay special attention to the dead zones near the shaft supports and discharge valve. For regular cleaning cycles, select cleaning agents compatible with both your processed materials and the blender’s construction (typically 304 or 316 stainless steel). Avoid highly abrasive cleaners or chloride-based solutions that can cause pitting corrosion. Utilize safe cleaning methods: For dry cleaning, use dedicated vacuum systems with HEPA filters. For wet cleaning (WIP), use low-pressure water or steam and approved detergents/sanitizers. Ensure thorough rinsing and drying to prevent corrosion or microbial growth. NEVER enter the blender vessel for cleaning without strict adherence to confined space entry procedures: Lockout/Tagout (LOTO) the main power, verify zero energy, use a safety harness with an attendant, and ensure adequate ventilation. Externally, wipe down the motor, gearbox, and frame regularly to prevent dust accumulation, which impedes cooling and poses a fire hazard near electrical components.

III. Precision Lubrication: The Lifeblood of Moving Parts

Correct lubrication drastically reduces friction, wear, heat generation, and energy consumption. Identify all lubrication points from the manufacturer’s manual – primarily bearings (drive end, possibly tail end), gearbox, and open gears if present. Use ONLY the specified lubricant types and grades. Gearboxes typically require specific ISO viscosity industrial gear oils (often EP – Extreme Pressure). Bearings usually require high-quality, high-temperature lithium complex or synthetic grease (e.g., NLGI #2). Using the wrong lubricant can cause seal damage or inadequate protection. Follow strict relubrication intervals. For grease-lubricated bearings, purge old grease using a manual or automated grease gun until fresh grease emerges from the purge port – this expels contaminants. Avoid over-greasing, which can blow seals and cause overheating. For gearboxes, regularly check the oil level via the sight glass or dipstick while the unit is level and stopped. Top up only with the exact specified oil. Schedule oil changes based on hours of operation or oil analysis results – typically annually or bi-annually. Drain the old oil while warm, clean magnetic plugs and any sludge from the sump, and refill precisely to the correct level. Record every lubrication action (date, point, lubricant type, quantity).

IV. Critical Safety & Maintenance Execution Protocols

Maintenance tasks demand expertise and strict safety adherence. Only trained, authorized personnel should perform maintenance, possessing knowledge of mechanical systems, electrical basics (for inspections), and crucially, Lockout/Tagout (LOTO) procedures. Before ANY maintenance inside the vessel or on drive components:

1. Shut down the blender completely using normal controls.
2. Isolate all energy sources – Electrical (main disconnect), Pneumatic/Hydraulic (isolate and bleed lines), Gravitational (secure discharge valve).
3. Apply LOTO devices to all isolation points.
4. Verify Zero Energy State – Attempt to start the blender locally (safely) to confirm power is off. Ensure potential energy (e.g., raised covers) is released.
   Use only tools specified or recommended by the manufacturer. Improvised tools can damage components or cause injury. Wear appropriate PPE – safety glasses, gloves (cut-resistant for handling ribbons), steel-toe boots, and hearing protection are minimums; respirators may be needed for dusty environments. Follow detailed procedures from the manual for specific tasks like bearing replacement or seal installation. Never bypass safety guards or interlocks; their purpose is to prevent catastrophic injury. If an interlock is faulty, repair it immediately – do not operate the machine without it.

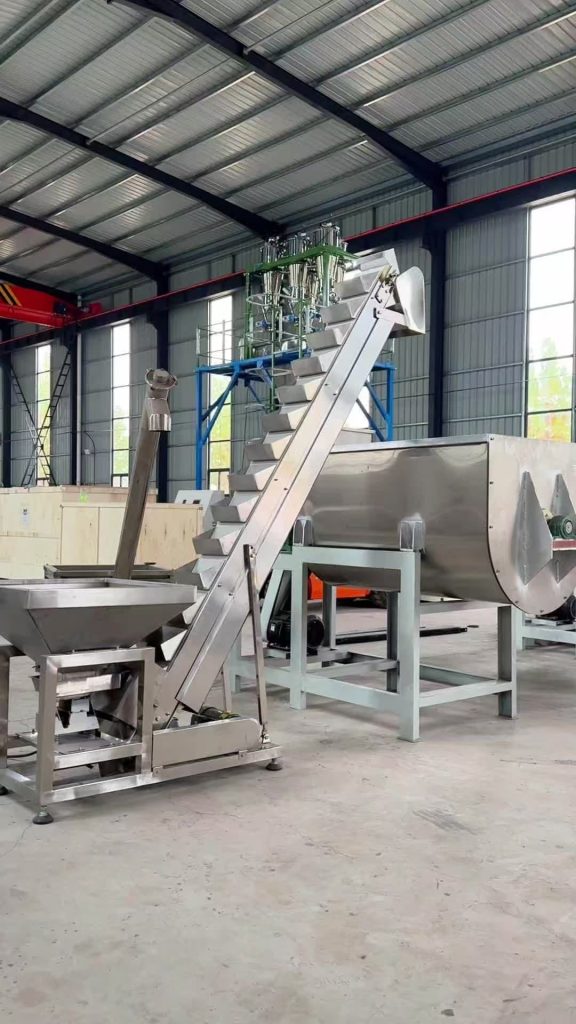

V. Foundational Knowledge: Understanding Your Blender

Effective operation and troubleshooting start with knowing the core components:

• Vessel: The U-shaped or horizontal cylindrical container holding material. Material is critical (usually stainless steel).
• Agitator Assembly: The central shaft mounted with the inner and outer ribbon helices. These counter-rotating ribbons move material radially and axially for homogeneous blending.
• Drive System: The electric motor (provides power) connected to a gear reducer (reduces speed, increases torque) via couplings or belts. The reducer output shaft drives the agitator shaft.
• Bearings & Seals: Support the agitator shaft at each end. Seals prevent product leakage along the shaft where it exits the vessel.
• Discharge Valve: Located at the vessel bottom (often a slide gate, knife gate, or butterfly valve) for controlled emptying.
• Structure & Covers: The supporting frame, end covers enclosing bearings, and access doors for loading/inspection.

VI. Essential Operational Best Practices

• Secure Placement: Ensure the blender is installed on a level, stable foundation designed to handle its dynamic load during operation. Unstable footing causes excessive vibration and component stress.
• Pre-Operation Check: Combine the daily inspection (Section I) with verifying the discharge valve is fully closed before loading.
• Loading Discipline: NEVER exceed the manufacturer’s specified maximum fill level (typically 60-70% of vessel volume for ribbon blenders). Overfilling drastically reduces mixing efficiency, strains the motor/gearbox, and risks damaging the agitator shaft or ribbons. Load materials consistently according to the recommended sequence if specified (e.g., larger components first). Pre-process large, dense, or fibrous materials as needed to prevent jamming or excessive motor load.
• Startup & Shutdown: Always start the blender empty or under its minimum load if specified. Gradually increase speed to the desired operating RPM using the VFD (if equipped) or selector switch. Avoid “jamming” the motor to full speed instantly. Before opening ANY access point (even for sampling): 1) Completely STOP the agitator. 2) WAIT until all motion ceases. 3) VERIFY LOTO if entering or extensive work is needed. Only then should doors be opened. Open discharge valves only after the agitator is fully stopped.
• Power Cord Care (if applicable): For smaller units with plugs, regularly inspect the cord for cuts, abrasion, or damage. Never yank the cord to disconnect; pull by the plug. Keep cords away from heat, oil, and sharp edges.

VII. Deep Cleaning & Sanitation Protocols

Beyond routine post-batch cleaning (Section II), schedule periodic deep cleaning and sanitation, especially when changing products, after processing sticky materials, or according to hygiene plans (e.g., food/pharma). This involves:

1. Complete Disassembly (as per manual): Safely remove the agitator shaft with ribbons (often requiring hoist support), discharge valve internals, and sometimes end covers.
2. Manual & Mechanical Cleaning: Scrub all components (ribbons, shaft, vessel interior, valve parts) using approved brushes, scrapers, and cleaning solutions. Remove all visible residue.
3. Verification & Passivation (for Stainless Steel): Inspect surfaces for cleanliness and any signs of corrosion or pitting. Perform passivation (nitric or citric acid treatment) if required to restore the protective oxide layer on stainless steel. Rinse thoroughly to neutral pH.
4. Reassembly with Care: Reassemble meticulously, ensuring proper alignment of the shaft, correct tightening sequences for bolts (use a torque wrench), and verification that seals are properly seated and lubricated (if required).

VIII. Detailed Mechanical Component Inspection & Maintenance

• Ribbon Agitator Inspection: During deep cleans or quarterly inspections, closely examine ribbon thickness, especially leading edges. Measure for wear using calipers or templates. Check for cracks, especially at welds or mounting points. Verify tightness of all bolts securing ribbons to the shaft. Significant wear (>10%) or damage necessitates repair or replacement to maintain blend quality.
• Shaft Inspection: Support the shaft properly upon removal. Check for straightness using precision levels or dial indicators along its length. Tolerances are tight (often < 0.001″ per foot). Check for wear at bearing journals and seal surfaces. Inspect keyways for wear or distortion. Seal surfaces must be smooth; scratches or grooves will cause leaks. Bent shafts or severely worn areas require professional repair or replacement.
• Bearings: When accessible, manually rotate bearings feeling for roughness, grinding, or excessive play. Listen for noise. Monitor temperature during operation (infrared gun). Replace bearings showing signs of failure immediately. Always replace seals when replacing bearings.
• Gearbox: Beyond lubrication, regularly check for leaks, unusual noise (whining, knocking), and excessive vibration or heat. Oil analysis is highly recommended for predictive maintenance.

IX. Electrical System Vigilance

• Component Inspection: Quarterly, inspect motor terminals for tightness and signs of overheating (discoloration). Check contactors and relays in the control panel for pitted contacts, proper operation, and coil integrity. Ensure overload settings are correct. Verify sensors (temperature, level if present) are functional and calibrated.
• Insulation Resistance Testing: Annually (or per OEM recommendation), perform Megger testing on the motor windings and major power cables to detect insulation breakdown before it causes failure. Follow safety procedures rigorously (LOTO!).
• Environmental Protection: Keep control cabinets tightly closed. Use compressed air (low pressure) or vacuum cleaners regularly to remove dust buildup internally. In humid environments, utilize cabinet heaters or desiccant breathers to prevent condensation and corrosion on electrical components. Ensure conduit seals are intact.

X. Proactive Monitoring & Detailed Record Keeping

• Vibration Analysis: Implement a monthly vibration monitoring program using a portable data collector. Measure vibration velocity (inches/sec or mm/sec) on bearing housings (drive end, tail end) and the gearbox in three axes (Horizontal, Vertical, Axial). Trending vibration levels helps detect imbalance, misalignment, bearing defects, or looseness long before catastrophic failure. Establish baseline readings when the blender is new or after major repairs.
• Noise Monitoring: Train operators to recognize changes in normal operating sounds. Sudden increases in noise level or new sounds (grinding, screeching) warrant immediate investigation.
• Temperature Monitoring: Regularly use an infrared thermometer to check bearing housing temperatures, gearbox oil sump temperature, and motor casing temperature. Compare readings against baseline norms. Significant increases indicate problems (overload, lubrication failure, bearing wear).
• Comprehensive Logging: Maintain meticulous records of EVERY action: Daily inspection checklists (with notes), lubrication logs (date, point, lubricant, quantity), vibration/temperature readings, maintenance work performed (parts replaced, adjustments), operational hours, and any anomalies or incidents. This historical data is invaluable for troubleshooting, predicting failures, optimizing maintenance schedules, and ensuring regulatory compliance.

Adherence to this comprehensive maintenance and operational regimen transforms your ribbon blender from a potential source of downtime into a reliable, efficient, and long-lasting asset. Consistent care prevents minor issues from escalating into major failures, ensures product quality and consistency, safeguards your personnel, and ultimately delivers significant cost savings through extended equipment life and maximized productivity. Always prioritize safety and consult your specific equipment’s OEM manual for model-specific details and tolerances.
