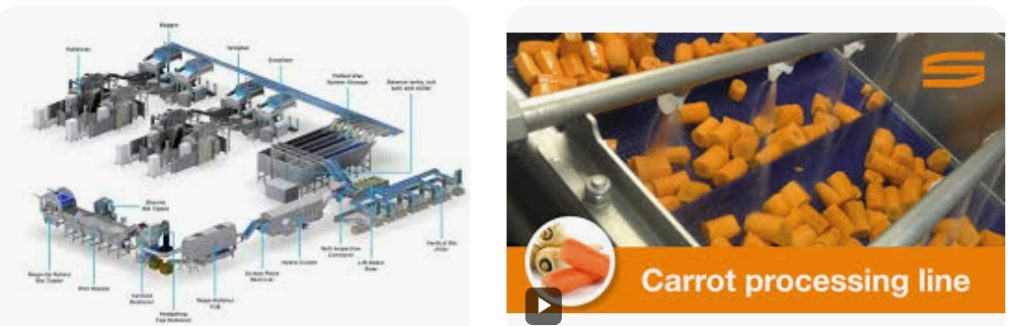

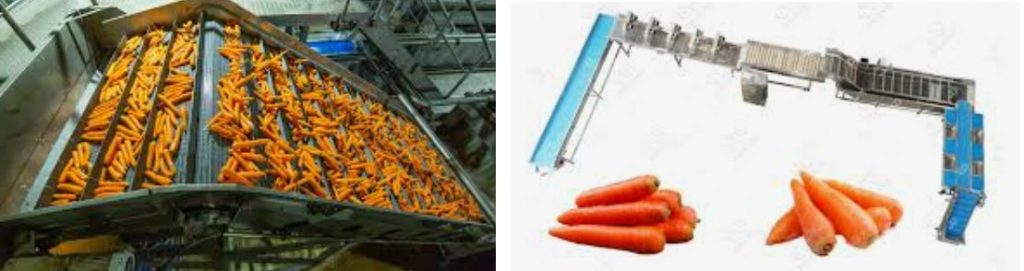

Carrot Processing Line Drying Grinding
Carrot Processing Line Process: Washing Carrot—>Cut Carrot—>Drying Machine—> Cool Down—-> Auto feeder—> Grinding Machine—> Mixing Machine—> Packing Machine.

Carrot special processing equipment wholesale price operation is simple, high output, automatic temperature control device, double insulation material, is the current domestic advanced food, vegetable blanching equipment. The equipment has the functions of cooking and brine cooking, the design is slightly modified, adding the link between the brine mixing pool and the main body of the cooking tank can realize continuous brine, cooking and other work.


Here shows a example of pepper grinding production line for customer.
I . Customer Requirements
II. Equipment List Download PDF File
Name | Dimensions(mm) | QTY | Unit Price(USD) | Price(USD) |
Bubble Washing Machine | 6500*1500*1950mm | 1 | $7890 | $7890 |
Pick Line | 4000*1000*1000mm | 1 | $2400 | $2400 |
Cutting Machine | 1230*700*1163mm | 2 | $10000 | $20000 |
Bubble Washing Machine | 6500*1500*1950mm | 1 | $7890 | $7890 |
Vibrating Screen | 2000*800*950mm | 1 | $2060 | $2060 |
Air Drying Machine | 4000*1000*1600mm | 1 | $4470 | $4470 |
Conveyor | 5400*2130*2500mm | 5 | $75000 | $375000 |
Continuous Drying Machine | 21000*5380*2300mm | 5 | ||
Conveyor | 3000*500*1000mm | 5 | $1500 | $7500 |
Total Price (USD) | 1 Set | $427210 |
1. Bubble Washing Machine

(1) Use: used for the second cleaning of peppers
(2) Features:
A. With bubble cleaning function, the material will not be damaged by water flow.
B. The water supply pipelines and control valves are all sanitary grade.
C. The water tank is equipped with a filter, which can realize the reuse of water sources.
(3) Technical parameters:
- Size: 6500*1500*1950mm, belt width 1000mm
- Conveying motor: frequency conversion
- Transmission power: 1.5kw/380V/50HZ/3 phases
- Water pump power: 3kw, air pump: 7.5KW, lift motor power: 0.37*2=0.74kw
2.Conveyor

(1) Function: Manually select bad peppers and send them to the cutting machine
(2)Features: Smooth operation, stainless steel frame structure, easy maintenance and cleaning.
(3) technical parameters:
- Dimensions:4000*1000*100mm, Work position: 6 people
- Power: 0.37kw /380v/ 50Hz
- Conveyor width:400 mm
- Drive motor: frequency variable motor
- Conveyor belt: 304sus
- Frame: 50*50*2mm rectangle 304 tube
- Served with a cutting board, and cut off the bad spots
3. Large Vegetable Cutting Machine

Machine size: 1230*700*1163MM
Slice thickness: 2-6MM
Strip size: 3*3MM or more
Cutting length: 1-60MM
Conveyor belt width: 168MM
Output: 1000-1500KG/H
Power: 1.87KW
4. Bubble Washing Machine

(1) Use: used for the second cleaning of peppers
(2) Features:
A. With bubble cleaning function, the material will not be damaged by water flow.
B. The water supply pipelines and control valves are all sanitary grade.
C. The water tank is equipped with a filter, which can realize the reuse of water sources.
(3) Technical parameters:
- Size: 6500*1800*1950mm, belt width 1000mm
- Conveying motor: frequency conversion
- Transmission power: 1.5kw/380V/50HZ/3 phases
- Water pump power: 3kw, air pump: 7.5KW, lift motor power: 0.37*2=0.74kw
5.Vibrating Screen

(1) Equipment model: LJ-2000
(2) Dimensions: 2000*800*950mm
(3) Equipment material: stainless steel
(4) Power: 0.16kw/380v/50hz
(5) Features: Cleaned chili peppers are vibrated to remove water
(6) Material configuration
Motor: vibration motor
Frame: 50*50*2mm rectangular stainless steel square tube
6.Air Dryer

(1) Function: Remove the water from the peppers before drying
(2)Model: LJC-4000
(3) Transmission power: 1.5KW, fan power: 0.75KW*8,
Mesh belt: 1000mm, size: 4000*1000*1600mm.
Driving speed: variable frequency adjustable
7.Conveyor


(1) Function: Transport the cut peppers to the dryer
(2)Dimension:5400*2130*2500mm,
Paving device power:1.5kw, 380V/50Hz
8.Continuous drying machine

Dimension:23000*5380*2300mm,Mesh belt:1800mm,
Steam: 2 tons/unit, Transmission: 2.2kw*5, Fan: 5.5kw*9, Dehumidification: 7.5kw*2
9.Conveyor

(1) use:The dried plums can be collected together and transported to a container.
(2) features: PVC belt, easy maintenance, easy cleaning, no rust.
(3) technical parameters:
- Dimension: 3000*500*1000mm
- Power: 0.55KW/380v/50Hz
- Mesh belt width: 400 mm,food grade PVC.
- Frame: 50*50*2mm rectangle stainless steel square tube.

10. Air cooler:
- Function: to cool down the material before grinding.
- Length: 4~6 meter
- Width: 1.8meter
- Fan motor: 370w,380v
- Motor power:0.55kw 380v 4P
- Capacity: 625KG per hour
11. Grinding Machine:

- Motor: 18.5KW+0.75KW+11KW
- Grinding Mesh: 10-120mesh
- Capacity: 500-1000kg/h

12. Auto Feeder
- Power(V/HZ): 380/50
- Working Pressure (Mpa):0.4-0.6Mpa
- Capacity: 500-1000kg/h
14.Vertical Packing Machine for printed roll film
Screw meter 50L

- Weighing range: within 1000 grams
- Accuracy: ≤1% (depending on packaging weight, material changes)
- Packing speed: 60-80 bags/min
- Power supply: 220V,50/60HZ,
- Machine power: 1500W
- film width 420mm,
- bag length :60-300mm,
- bag width 80-200mm,
- packaging speed 20-30 bags/min,
- power: 3.5KW
- Power supply: 1P/220V/50HZ,
- Weight: 350kg
- Including a coding machine
Sugar Powder Production Line Detail informations:
Trade Capacity
International Commercial Terms(Incoterms): | FOB, CIF, CFR | Terms of Payment: | LC, T/T, PayPal, Western Union |
Average Lead Time | 60 working days | Main Markets | North America, South America, Europe, Southeast Asia/ Mideast, East Asia(Japan/ South Korea), Australia, Domestic |
Nearest Port: | Ningbo Port; Shanghai Port | Factory Address: | JiangSu, China |
First, the concept of carrot deep processing
Carrot is a common vegetable that is rich in nutrients and has a variety of effects. In the traditional production mode, carrots are mainly processed into dried carrots, carrot powder and carrot paste products. However, with the improvement of people’s health awareness, carrot deeply processed products have received more and more people’s attention.
Carrot deep processing refers to the detailed decomposition and processing of carrots, processing them into a variety of products with different uses, such as carrot juice, carrot dry, carrot powder, carrot silk, etc. Carrot deep processing can maximize the use of carrot nutrition, improve its added value, to meet the needs of consumers. Below, introduce several common carrot deep processing equipment.
Second, carrot deep processing equipment
Carrot washer
Washing machine is the primary equipment for carrot deep processing. During harvesting and processing, carrots can pick up dirt and other impurities, affecting quality and taste. The use of a cleaning machine can remove impurities and dirt from the surface of the carrot and prepare it for subsequent processing.
Carrot slicer
A carrot slicer can precisely slice and shred carrots. This facilitates subsequent processing steps such as carrot drying and carrot grinding. The slicer can cut the carrots into different shapes and sizes to suit different deep processing needs.
Carrot dryer
The carrot dryer can dry the cut carrots. Dried carrots extend their shelf life and facilitate subsequent processing. The drying process should fully grasp the time and temperature to ensure that the quality and taste of the carrots are not affected.
Carrot crusher
Carrot crusher can crush dried carrots and make carrot powder directly. Carrot powder can be widely used in the production of food, dietary nutritional supplements, drugs, etc., with broad market prospects.
The above is the introduction of carrot deep processing equipment, which plays an important role in carrot deep processing, providing key support for the detailed processing of carrots and improving added value.
Feature:
The features of a grinder can vary depending on the specific model and brand, but some common features include:
- Durable materials: Industrial mushroom grinders are typically made from high-quality materials such as stainless steel, which are durable and resistant to wear and tear.
- High capacity: Mushroom grinders come in various sizes and capacities, ranging from small-scale grinders for home use to large industrial grinders for commercial applications.
- Adjustable settings: Many mushroom grinders offer adjustable settings for controlling the particle size and texture of the ground material, allowing for greater precision and customization.
- Efficient processing: Industrial mushroom grinders are designed to process large quantities of mushrooms quickly and efficiently, reducing processing time and increasing productivity.
- Safety features: Some mushroom grinders are equipped with safety features such as automatic shut-off mechanisms or overload protection to prevent damage to the grinder or injury to the operator.
- Easy maintenance: Many mushroom grinders are designed for easy cleaning and maintenance, with removable parts and simple cleaning procedures.
Overall, the features of a mushroom grinder are designed to facilitate efficient and safe processing of mushrooms for use in various applications in the food and pharmaceutical industries.
Customize according to your request:
- Connector with other machines can be customized.
- Capacity can be customized;
- Procedure progress can be customized;
- Voltage can be customized;
- Special functions can be customized;
- Chargers and cables length can be customized;
- Electric cabinet can be customized;
- Logos, package can be customized, OEM your brand;
- Can connect with packing Machine, sealing machine, Drying Machine, Sifter Vibrating Screen machine, or any other machines in procedure;
Business Type: | Manufacturer/Factory | Main Products: | Mill, grinder, granulator, mixer, Crushing Equipment |
Number of Employees: | 100 | Year of Establishment: | 2014.05 |
Production Capacity | 5000Set/Year | After-sales Service: | Technical Support; on-line teach lessons |
R&D Capacity: | ODM, OEM | Annual Output Value: | US$5 Million – US$10 Million |
No. of R&D Staff: | 5 | No. of Production Lines: | 6 |
LK Mixer is a professional manufacturer for grinder, mixer and pulverizer. These machines are widely used in pharmaceutical, cosmetic, health care products and chemical industries. Our main product including granulating machine, grinder, mixer, dryer, etc. All mechanical products in accordance with the China GMP design requirements. And also we have other certifications such as CE, UL for motors.
Business Philosophy
“Quality is the main policy of sales” and “integrity is the principle of success” are the business philosophy of our people. We carry out one-year warranty, lifelong maintenance service, with technical consultation, with material test machine and other services, and long-term supply of equipment. Welcome new and old customers to negotiate cooperation!
Certifications:





Electric Cabinet with UL Certification

Cyclone Processor and Motors:

Spare Parts:

Small Machine Packing:
Small machine packed with export fumigation-free wooden cases, goes with bulk shipment or in container.
When packing small machines for sea shipment, it is important to take measures to ensure that the machines are protected from damage during transit. Here are some general steps that a manufacturer may follow when packing small machines for sea shipment:
- Clean and dry the machine: Before packing, the machine should be thoroughly cleaned and dried to prevent any moisture or debris from causing damage during transit.
- Disassemble the machine: If possible, the machine should be disassembled into its component parts to reduce its overall size and make it easier to pack.
- Wrap the machine in protective material: The machine should be wrapped in a layer of protective material, such as bubble wrap or foam, to protect it from scratches and impact during transit.
- Place the machine in a sturdy box: The wrapped machine should then be placed in a sturdy box that is appropriate for the size and weight of the machine. The box should be made of durable material, such as corrugated cardboard or plywood, and should be able to withstand the rigors of sea transit.
- Add packing material: The box should be filled with packing material, such as packing peanuts or air pillows, to provide cushioning and prevent the machine from shifting during transit.
- Seal the box: The box should be securely sealed with high-quality packing tape to prevent it from opening during transit.
- Label the box: The box should be clearly labeled with the machine’s name, weight, and any other relevant information, as well as the destination address and contact information.
Overall, the goal is to pack the small machine in a way that will protect it from damage during transit and ensure that it arrives at its destination in good condition. It is important to follow proper packing procedures and use high-quality packing materials to minimize the risk of damage during sea shipment.

Large Machine Packing:
Packing a large machine for sea shipment can be a complex and challenging task. However, with careful planning and attention to detail, it is possible to pack a large machine for sea shipment in a way that will ensure that it arrives at its destination in good condition. Here are some general steps that a manufacturer may follow when packing up a large machine for sea shipment:
- Clean and prepare the machine: Before packing, the machine should be thoroughly cleaned and prepared. All fluids, such as oil or coolant, should be drained, and any loose or detachable parts should be removed.
- Disassemble the machine: If possible, the machine should be disassembled into its component parts to reduce its overall size and make it easier to pack. Each part should be carefully labeled and numbered to ensure that it can be easily reassembled at the destination.
- Protect delicate parts: Delicate or fragile parts should be wrapped in protective material, such as bubble wrap or foam, to protect them from damage during transit.
- Build a custom crate: A custom crate should be built around the machine to provide a secure and sturdy enclosure. The crate should be made of durable material, such as plywood, and should be designed to fit the machine snugly. The crate should also include braces or supports to prevent the machine from shifting during transit.
- Add cushioning material: The crate should be filled with cushioning material, such as packing peanuts or air pillows, to provide extra protection and prevent the machine from moving or shifting during transit.
- Securely fasten the machine: The machine should be securely fastened to the crate to prevent it from moving or shifting during transit. This may involve using straps, bolts, or other fasteners to hold the machine in place.
- Seal and label the crate: The crate should be securely sealed with high-quality packing tape, and should be clearly labeled with the machine’s name, weight, and any other relevant information. The destination address and contact information should also be clearly marked on the crate.
Overall, packing a large machine for sea shipment requires careful planning and attention to detail. It is important to use high-quality materials and follow proper packing procedures to ensure that the machine arrives at its destination in good condition. A professional packing and shipping company may be consulted to ensure that the machine is properly packed and prepared for sea shipment.
Customer Side Machine Groups Showcase Videos:
Dust Collector Shipment
Shipment – Packing Method
Two Large Industrial Grinder Ready to Ship
Shipment Show Case:


Operation Instruction
General Provisions
The operation instructions for a commercial grinder may vary depending on the specific model and manufacturer. However, here are some general guidelines that may apply to many high speed grinders:
- Safety precautions: Before operating the high speed grinder, it is important to review all safety precautions and warnings provided in the user manual. Safety precautions may include wearing appropriate personal protective equipment, such as eye protection and hearing protection, and avoiding loose clothing or jewelry that could become caught in the grinder.
- Preparation: The high speed grinder should be placed on a stable and level surface, and all necessary components should be assembled according to the manufacturer’s instructions. The grinder should also be connected to a power source that is appropriate for its voltage and wattage.
- Loading the grinder: The material to be ground should be loaded into the grinder according to the manufacturer’s instructions. Overloading the grinder may cause damage to the machine and result in poor grinding performance.
- Starting the grinder: The grinder should be started according to the manufacturer’s instructions. This may involve pressing a button, turning a dial, or flipping a switch. The user should ensure that their hands are clear of the grinder and that the material to be ground is positioned properly.
- Adjusting the speed and settings: The speed and other settings of the high speed grinder may be adjusted according to the material being ground and the desired outcome. The user should follow the manufacturer’s instructions for making adjustments to the grinder.
- Monitoring the grinding process: The user should monitor the grinding process to ensure that it is progressing smoothly and that the material is being ground to the desired size and consistency. Any issues or abnormalities should be addressed promptly to prevent damage to the machine.
- Shutting down the grinder: When the grinding process is complete, the grinder should be shut down according to the manufacturer’s instructions. The user should ensure that the machine is completely stopped and that all moving parts have come to a complete stop before attempting to clean or service the grinder.
Overall, the operation instructions for a commercial grinder may involve a number of steps and safety precautions. It is important to carefully review the manufacturer’s instructions and follow proper operating procedures to ensure safe and effective use of the machine.
Preparation Work
Before running a commercial grinder, there are several important preparation steps that should be taken to ensure safe and effective operation of the machine. Here are some general guidelines for preparing to run a high speed grinder:
- Read the user manual: The first step in preparing to run a high speed grinder is to carefully read the user manual provided by the manufacturer. The user manual will provide important information about the specific model of grinder being used, including its features, specifications, and safety precautions.
- Select the appropriate grinding wheel: The grinding wheel used in a high speed grinder should be selected based on the material being ground and the desired outcome. It is important to use the correct type of grinding wheel to prevent damage to the machine and ensure optimal grinding performance.
- Inspect the grinder: Before running the grinder, it is important to inspect it for any signs of damage or wear. The user should check for loose or missing components, cracks or other signs of damage to the machine’s housing or other parts, and any other issues that could affect the grinder’s operation.
- Install the grinding wheel: The grinding wheel should be installed according to the manufacturer’s instructions, making sure that it is securely fastened and aligned properly. The user should also check the wheel for any cracks or other signs of damage before installation.
- Secure the workpiece: The workpiece to be ground should be securely clamped or held in place before starting the grinder. This will help to ensure safe and effective operation and prevent the workpiece from becoming dislodged or damaged during grinding.
- Connect the power source: The high speed grinder should be connected to a power source that is appropriate for its voltage and wattage. It is important to use a properly grounded power source to ensure safe and reliable operation of the machine.
- Test run: Before beginning actual grinding operations, it may be useful to perform a test run to ensure that the grinder is functioning properly and that the grinding wheel is aligned and balanced properly. The user should follow the manufacturer’s instructions for performing a test run.
By following these preparation steps, users can ensure safe and effective operation of a high speed grinder and achieve optimal grinding results.
Treatment of inspection
Inspection of a commercial grinder is an important maintenance procedure that helps ensure safe and effective operation of the machine. Here are some general guidelines for inspecting a high speed grinder:
- Disconnect power source: Before performing any inspection or maintenance on a high speed grinder, the power source should be disconnected to prevent accidental startup.
- Check for wear and damage: The user should inspect the grinder for any signs of wear or damage, such as cracks in the housing, worn or damaged grinding wheels, or loose or missing parts. Any issues should be addressed promptly to prevent further damage to the machine.
- Check alignment and balance of grinding wheel: The grinding wheel should be inspected for proper alignment and balance, as these factors can affect the quality of the grinding operation. If the grinding wheel is not properly aligned or balanced, it should be adjusted or replaced as necessary.
- Check for proper lubrication: The high speed grinder should be inspected for proper lubrication, as inadequate lubrication can cause excessive wear and damage to the machine’s moving parts. The user should follow the manufacturer’s instructions for lubrication, and add lubricant as necessary.
- Inspect electrical components: The electrical components of the high speed grinder, including the wiring, switches, and control panel, should be inspected for any signs of wear, damage, or loose connections. Any issues should be addressed promptly to prevent electrical problems.
- Test run: After completing the inspection, it may be useful to perform a test run of the high speed grinder to ensure that it is functioning properly and that any issues have been addressed.
By following these inspection guidelines, users can help ensure safe and effective operation of a high speed grinder and minimize the risk of damage or injury during grinding operations.
Operation Attention
Running a commercial grinder can be a dangerous operation if proper precautions are not taken. Here are some general guidelines for safe operation of a high speed grinder:
- Personal protective equipment: The user should wear appropriate personal protective equipment, such as safety glasses, hearing protection, and gloves, to prevent injury from flying debris, noise, and contact with the grinding wheel.
- Secure workpiece: The workpiece being ground should be securely clamped or held in place to prevent it from becoming dislodged during grinding.
- Use proper grinding wheel: The user should select the appropriate grinding wheel for the material being ground and ensure that it is installed correctly and securely. The grinding wheel should be inspected for cracks or other damage before use.
- Adjust grinding wheel speed: The speed of the grinding wheel should be adjusted according to the manufacturer’s instructions to ensure optimal grinding performance and prevent damage to the machine or workpiece.
- Avoid excessive pressure: The user should avoid applying excessive pressure to the grinding wheel, as this can cause the wheel to overheat and wear out more quickly.
- Avoid overheating: The high speed grinder should not be operated continuously for extended periods of time, as this can cause overheating and damage to the machine.
- Monitor grinding operation: The user should closely monitor the grinding operation to ensure that the workpiece is being ground properly and that the grinding wheel is functioning correctly.
- Disconnect power source: After completing grinding operations, the power source should be disconnected to prevent accidental startup.
By following these guidelines, users can operate a high speed grinder safely and effectively, and achieve optimal grinding results. It is important to follow the manufacturer’s instructions and all applicable safety regulations when operating any type of machinery.
Installation Layout:

Application of Commercial Sugar Grinding Production line:
Commercial sugar grinders are commonly used in the food processing industry to grind granulated sugar into a fine powder for use in various food products. Some of the most common applications of commercial sugar grinders include:
- Confectionery: Sugar grinders are used in the production of confectionery products such as candies, chocolates, and chewing gum.
- Baked goods: Sugar powder is often used in the production of baked goods such as cakes, pastries, and cookies.
- Beverages: Sugar powder is commonly used as a sweetener in hot and cold beverages such as coffee, tea, and smoothies.
- Desserts: Sugar powder is used to sweeten and decorate desserts such as ice cream, pudding, and fruit salads.
- Pharmaceutical industry: Sugar grinders are also used in the pharmaceutical industry to grind sugars for use in various medications.
Overall, the commercial sugar grinder is an essential tool in the food processing industry for producing fine sugar powder for a wide variety of applications.
What Other Food Products Can an Icing Sugar Grinding Machine Work On? What are Sugar Crusher & Grinder used for?
Sugar Grinding machine are in very wide usage which is suitable for the pharmaceutical, chemical metallurgy, food and other industries. It can grind for other powders and particles.
As a matter of fact, you can also use these icing sugar grinding machines for other powders and particles. In fact, here’s a table of some of the most common applications of this type of grinding equipment.
Factory Information:
Business Type: | Manufacturer/Factory | Main Products: | Mill, grinder, granulator, mixer, Crushing Equipment |
Number of Employees: | 100 | Year of Establishment: | 2014.05 |
Production Capacity | 5000 Set/Year | After-sales Service: | Technical Support; on-line teach lessons |
R&D Capacity: | ODM, OEM | Annual Output Value: | US$5 Million – US$10 Million |
No. of R&D Staff: | 5 | No. of Production Lines: | 6 |
LK Mixer is a professional manufacturer for grinder, mixer and pulverizer, granulator. These machines are widely used in pharmaceutical, cosmetic, health care products and chemical industries. Our main product including granulating machine, grinder, mixer, dryer, etc. All mechanical products in accordance with the China GMP design requirements. And also we have other certifications such as CE, UL for motors.
Business Philosophy
“Quality is the main policy of sales” and “integrity is the principle of success” are the business philosophy of our people. We carry out one-year warranty, lifelong maintenance service, with technical consultation, with material test machine and other services, and long-term supply of equipment. Welcome new and old customers to negotiate cooperation!
Certifications:

Industrial Pepper Grinder Diagram of Design

Electric Cabinet with UL Certification

Cyclone Processor and Motors:

Spare Parts:

Small Machine Packing:
Small machine packed with export fumigation-free wooden cases, goes with bulk shipment or in container.

Large Machine Packing:
Shipment Show Case: Small grinder machine ship for Masala, Pakistan, Kenya, Nepal, India…
About LKMixer
LKMixer is a professional manufacturer for fertilizer production line, grinder, mixer and granulator, shredder. These machines are widely used in food, pharmaceutical, cosmetic, health care products and chemical industries. The Food materials like Peanut, mushroom, seeds, potato, bean, tobacco, salt, cannabis, tea, Sugar, corn, Coffee, rice, pepper, grain as so on. Grinders have many types such as Pulse Dust Grinder which suitable for zero pollution environment, Turbine Mill which is suitable for coffee bean, 12-120mesh all can meet, Ultrafine Grinding Mill covers 80-200mesh, and also Winnowing Dust Grinder or other grinding machines like SF Hammer. Welcome to contact us for details. Contact us for more information. Proposal, catalog, quotation. Mobile/WhatsApp: +86 18019763531 Tel: +86 21 66037855 Email: sales@lkmixer.com
