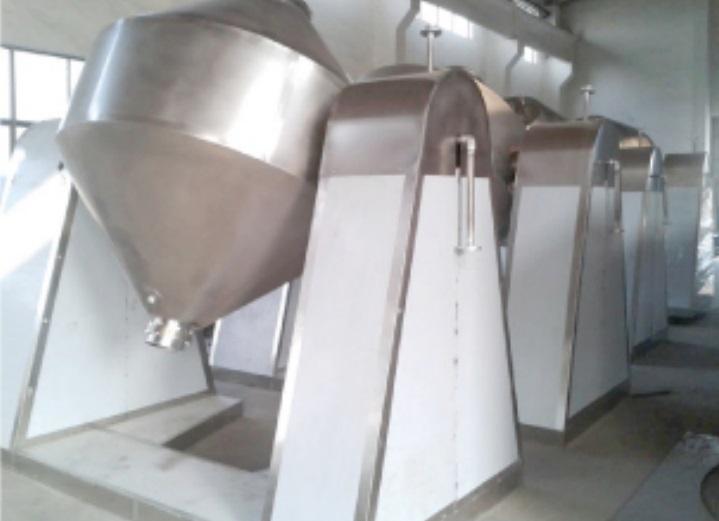

Double Cone Rotary Vacuum Dryer

  • Material: Powder or dry granule, thermal sensitive, easy oxidation material ;
  • Volume: 100~5000L;
  • Total Power: 0.75~15KW;
  • Application: Pharmaceuticals, Nutraceuticals, Food Products, Chemicals, Fertilizer, Stucco, Clay, Potting Soils.
  • Notice: This is just an example. Please contact with our sales for choosing the right model.
  • Price: $805~15,300.

I. Introduction:What is a Double Cone Rotary Vacuum Dryer?

The Double Cone Rotary Vacuum Dryer is a drying equipment that integrates mixing and vacuum drying. In the process of vacuum drying, the material to be dried is placed inside a sealed cylinder and continuously heated while the vacuum system pumps out air, creating a vacuum. This allows the water inside the material to diffuse to the surface due to pressure or concentration differences. The water molecules (or other non-condensing gases) gain enough kinetic energy on the surface of the material and diffuse into the low-pressure space of the vacuum chamber, overcoming molecular attraction. The vacuum pump removes the vapor, completing the separation from the solid.

The double-cone rotary vacuum dryer features a double-cone rotary tank body. In a vacuum state, steam or hot water is passed into the jacket for heating. Heat is transferred to the wet material through the inner wall of the tank, and the vapor evaporated after the wet material absorbs heat is pumped away through the vacuum pump and vacuum exhaust pipe. Since the tank is in a vacuum state and the rotation of the tank causes the material to constantly move up and down and inside and outside, the drying speed is accelerated, drying efficiency is improved, and uniform drying is achieved.

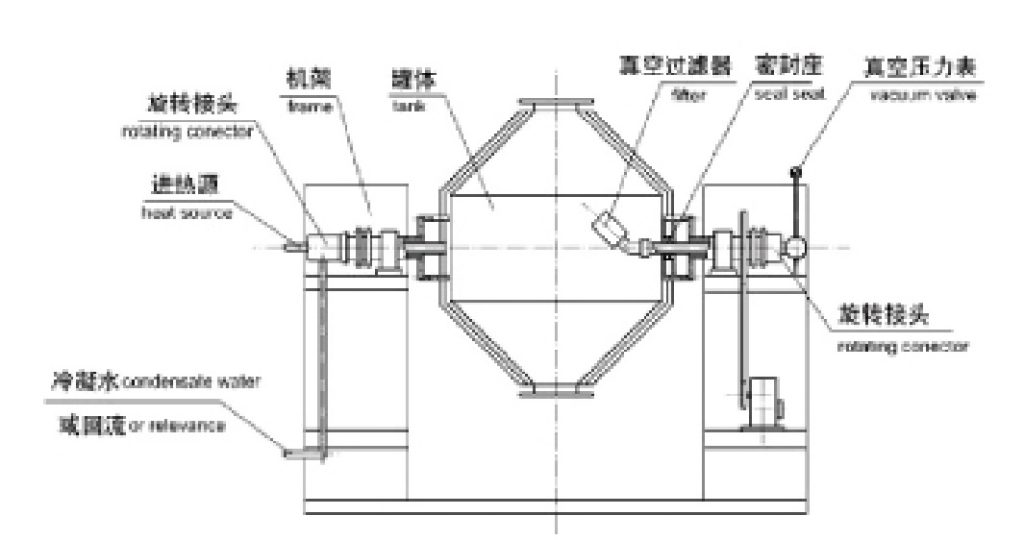

The double-cone rotary vacuum dryer system mainly consists of a double-cone rotary vacuum dryer, condenser, dust collector, vacuum pumping system, heating system, cooling system, and electric control system.

Double Cone Rotary Vacuum Dryer Working Principle

This dryer is suitable for vacuum drying powder or granular materials in the fields of medicine, food, and chemicals. It is particularly well-suited for drying materials that are heat-sensitive, prone to oxidation, or require preservation of their crystal structure. It is also ideal for drying materials that need to retain solvents for collection, as well as any materials that are hazardous or produce noxious fumes.

Double Cone Rotary Vacuum Dryer Price:

The Double Cone Rotary Vacuum Dryer according to different model is around $580~$12,000. For more price information Please click.

Advantages of Double Cone Rotary Vacuum Dryer:

  • High thermal efficiency—more than twice that of a standard oven.
  • The simplified speed can be adjusted step-less or with frequency conversion according to user needs.
  • Constant temperature control allows for temperature display via a digital display.
  • Equipped with a two-stage elastic connection using belts or chains for smooth operation.
  • Specially designed tooling ensures the left and right rotation shafts maintain excellent concentricity.
  • The heating medium and vacuum system use reliable American technology rotary joints.
  • When drying viscous materials, a special “sheet” structure can be designed inside the rotating cylinder, or balls can be included.
  • The heating system offers various menu options, allowing the thermal medium to be selected from high-temperature thermal oil, medium-temperature steam, or low-temperature hot water.

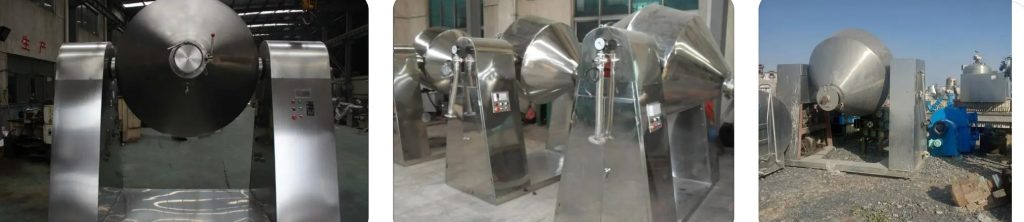

Double Cone Rotary Vacuum Dryer

How to choose the right model:

Viscosity of the material: The viscosity of the material changes with its moisture content. High viscosity can cause the material to clump together and stick to the cylinder walls, and it may also stick to the dust collector and pipe walls after drying. Pneumatic vibration and crushing devices may be used to address this issue.

Permissible temperature of the material: This refers to the maximum temperature the material can tolerate. Exceeding this temperature may cause changes in the material’s properties, decomposition, damage, or discoloration.

Bulk density of materials: The mass of materials per unit volume is called bulk density. Since the material is a mixture of dry and wet substances, the dry component is often granular, powdered, or solid, and the spaces between dry material particles vary depending on the material’s moisture content. The bulk density of raw, wet materials and those in the drying process can differ significantly, which should be considered when selecting a dryer.

Slip angle of the material: When stacking granular or powdered materials, the angle between the inclined surface and the bottom increases to a certain point, causing the side material to slide downward. This angle, known as the slip angle of the material, is influenced by material composition, moisture content, particle size, and viscosity. When selecting a double-cone dryer, the size of the cone angle can be determined by referring to the slip angle of the material .

Drying temperature: Depending on the physical properties of the material, an appropriate drying temperature can be chosen. Typically, a variable temperature drying method is used: the temperature is low initially and gradually increases to speed up the drying process. Once the material is heated above the vaporization temperature of water, the drying speed accelerates significantly. The material is heated to the vaporization temperature under the allowable temperature range and corresponding pressure. At this stage, the material’s temperature remains constant, and the heat added is used for vaporization and other heat losses. Maintaining the pressure difference between the evaporation surface and the space ensures continuous drying. As the moisture content decreases, the evaporation rate slows, and the drying rate decreases until it reaches zero.

Working vacuum: Usually, a vacuum of 10³~10⁴ Pa is used. A higher vacuum leads to a lower vaporization temperature in the wet part of the material, resulting in a faster drying speed. However, too high a vacuum can increase the cost of the pumping system and the price of the dried material, making it less economically viable.

Rotational speed: Although faster rotation speed of the double-cone rotary vacuum dryer cylinder generally results in higher drying speed, in the early stages of drying, too fast a speed can cause the material to clump together. Therefore, a lower speed is preferred during the early stages of drying, and the cylinder’s rotation speed is increased when the surface of the material is dry. During the later stages of drying, as the moisture content decreases, the rotation speed should be appropriately reduced. Increasing the speed at this point is not beneficial for improving drying speed. Therefore, staff should monitor and adjust the drying process according to the material’s condition.

II. History and Development of Industrial Mushroom Grinder

III. Components of Industrial Mushroom Grinder

IV. Types of Industrial Mushroom Grinder

.

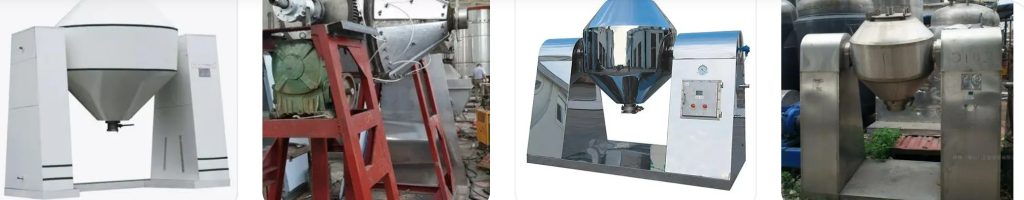

Feature of Double Cone Rotary Vacuum Dryer:

When the dryer vessel rotates, the heat-receiving surface of the target materials is continuously replaced, accelerating the drying process and ensuring even drying of the products inside. At the same time, the material is heated indirectly to avoid contamination. Other features include a design with no internal dead angles, easy operation and cleaning, optimized sealing for better performance, and very convenient maintenance.

The double-cone rotary vacuum dryer offers the following characteristics:

During the vacuum drying process, the pressure inside the cylinder remains lower than atmospheric pressure, resulting in a small number of gas molecules, low density, and low oxygen content. This allows for the drying of drugs that are prone to oxidation while reducing the risk of bacterial contamination of the materials.
Since the temperature of the wet component during vaporization is proportional to the steam pressure, vacuum drying enables the vaporization of the wet component of the material at low temperatures. This allows for low-temperature drying, making it especially suitable for producing drugs with heat-sensitive materials.
Vacuum drying can prevent the surface hardening phenomenon that can occur with atmospheric hot air drying. This is because the pressure difference between the vacuum-dried material and the surface is significant, causing water to move quickly to the surface under the pressure gradient and preventing surface hardening.
Due to the small temperature gradient between the inside and outside of the material during vacuum drying, the wet component can move and collect independently due to reverse osmosis, effectively mitigating the separation phenomenon caused by hot air drying.

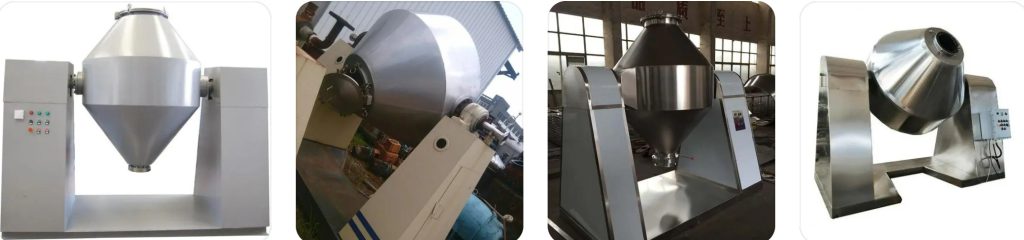

Double Cone Rotary Vacuum Dryer Parameter:

The top angle of the double-cone rotary vacuum dryer ranges from 90° to 60° (depending on the static angle of the material), and the material’s filling rate ranges from 30% to 50%. The rotation speed of the equipment is generally determined by the formula N ≤ 42.3D½ r/min (D is the maximum rotation diameter). The heat transfer coefficient U of the jacket is independent of the operating pressure. For non-bonding materials, U ranges from 116 to 140 W/(m²·K), and for bonding materials, U ranges from 80 to 93 W/(m²·K). The heat transfer area is calculated based on the area of the material contact with the cylinder body wall. The dryer cylinder is designed according to pressure vessel standards; the inner cylinder experiences external pressure, while the outer cylinder experiences internal pressure.

ModelCapacity(KG/H)Roller Dimensions(mm)Total Power(KW)Coarse Grain Speed(RPM)Overall Size(mm)Weight(KG)
BJB-301-10130*304.5900*1000*1000650
BJB-6010-40160*60830-1201100*1150*13001300
BJB-8020-60240*8012.530-1201380*1550*18001600
BJB-10030-80240*1001430-1201380*1550*18001900
BJB-12040-120240*1201630-1501420*1580*18402500
BJB-15050-180240*1502030-1501550*1690*19503100
BJB-20080-250240*2002530-1501690*1820*20203800
Dry granulating machine - parameter

Trade Capacity

International Commercial Terms(Incoterms):FOB, CIF, CFRTerms of Payment:LC, T/T, PayPal, Western Union
Average Lead Time60 working daysMain MarketsNorth America, South America, Europe, Southeast Asia/ Mideast, East Asia(Japan/ South Korea), Australia, Domestic
Nearest Port:Ningbo Port; Shanghai PortFactory Address:JiangSu, China

Business Type:Manufacturer/FactoryMain Products:Mill, grinder, granulator, mixer, Crushing Equipment
Number of Employees:100Year of Establishment:2014.05
Production Capacity

5000Set/YearAfter-sales Service:Technical Support; on-line teach lessons
R&D Capacity:


ODM, OEMAnnual Output Value:US$5 Million – US$10 Million
No. of R&D Staff:5No. of Production Lines:6

LK Mixer is a professional manufacturer for grinder, mixer and pulverizer. These machines are widely used in pharmaceutical, cosmetic, health care products and chemical industries. Our main product including granulating machine, grinder, mixer, dryer, etc. All mechanical products in accordance with the China GMP design requirements. And also we have other certifications such as CE, UL for motors.

Business Philosophy

“Quality is the main policy of sales” and “integrity is the principle of success” are the business philosophy of our people.  We carry out one-year warranty, lifelong maintenance service, with technical consultation, with material test machine and other services, and long-term supply of equipment. Welcome new and old customers to negotiate cooperation!

Certifications:

Industrial spice grinder
Industrial spice grinder

Electric Cabinet with UL Certification

Cyclone Processor and Motors:

Spare Parts:

Small Machine Packing:

Small machine packed with export fumigation-free wooden cases, goes with bulk shipment or in container.

When packing small machines for sea shipment, it is important to take measures to ensure that the machines are protected from damage during transit. Here are some general steps that a manufacturer may follow when packing small machines for sea shipment:

  1. Clean and dry the machine: Before packing, the machine should be thoroughly cleaned and dried to prevent any moisture or debris from causing damage during transit.
  2. Disassemble the machine: If possible, the machine should be disassembled into its component parts to reduce its overall size and make it easier to pack.
  3. Wrap the machine in protective material: The machine should be wrapped in a layer of protective material, such as bubble wrap or foam, to protect it from scratches and impact during transit.
  4. Place the machine in a sturdy box: The wrapped machine should then be placed in a sturdy box that is appropriate for the size and weight of the machine. The box should be made of durable material, such as corrugated cardboard or plywood, and should be able to withstand the rigors of sea transit.
  5. Add packing material: The box should be filled with packing material, such as packing peanuts or air pillows, to provide cushioning and prevent the machine from shifting during transit.
  6. Seal the box: The box should be securely sealed with high-quality packing tape to prevent it from opening during transit.
  7. Label the box: The box should be clearly labeled with the machine’s name, weight, and any other relevant information, as well as the destination address and contact information.

Overall, the goal is to pack the small machine in a way that will protect it from damage during transit and ensure that it arrives at its destination in good condition. It is important to follow proper packing procedures and use high-quality packing materials to minimize the risk of damage during sea shipment.

Large Machine Packing:

Packing a large machine for sea shipment can be a complex and challenging task. However, with careful planning and attention to detail, it is possible to pack a large machine for sea shipment in a way that will ensure that it arrives at its destination in good condition. Here are some general steps that a manufacturer may follow when packing up a large machine for sea shipment:

  1. Clean and prepare the machine: Before packing, the machine should be thoroughly cleaned and prepared. All fluids, such as oil or coolant, should be drained, and any loose or detachable parts should be removed.
  2. Disassemble the machine: If possible, the machine should be disassembled into its component parts to reduce its overall size and make it easier to pack. Each part should be carefully labeled and numbered to ensure that it can be easily reassembled at the destination.
  3. Protect delicate parts: Delicate or fragile parts should be wrapped in protective material, such as bubble wrap or foam, to protect them from damage during transit.
  4. Build a custom crate: A custom crate should be built around the machine to provide a secure and sturdy enclosure. The crate should be made of durable material, such as plywood, and should be designed to fit the machine snugly. The crate should also include braces or supports to prevent the machine from shifting during transit.
  5. Add cushioning material: The crate should be filled with cushioning material, such as packing peanuts or air pillows, to provide extra protection and prevent the machine from moving or shifting during transit.
  6. Securely fasten the machine: The machine should be securely fastened to the crate to prevent it from moving or shifting during transit. This may involve using straps, bolts, or other fasteners to hold the machine in place.
  7. Seal and label the crate: The crate should be securely sealed with high-quality packing tape, and should be clearly labeled with the machine’s name, weight, and any other relevant information. The destination address and contact information should also be clearly marked on the crate.

Overall, packing a large machine for sea shipment requires careful planning and attention to detail. It is important to use high-quality materials and follow proper packing procedures to ensure that the machine arrives at its destination in good condition. A professional packing and shipping company may be consulted to ensure that the machine is properly packed and prepared for sea shipment.

Customer Side Machine Groups Showcase Videos:

Dust Collector Shipment

Shipment – Packing Method

Two Large Industrial Grinder Ready to Ship

Domestic Shipment Show Case:

Operation Instruction

How to operate Double Cone Rotary Vacuum Dryer?

  • Check before driving:
  • Open the vacuum pump to check whether the pipe connection and stuffing box leak, whether the inlet and outlet seal is good, and whether the vacuum gauge reaction is sensitive.
  • open the cooling water valve to check the connection of the heat carrying pipe, whether the stuffing box leaks, whether the pressure gauge response is sensitive.
  • Check whether the instruments, buttons and indicators of the electric control cabinet are normal, whether the ground cable is good, whether there is leakage or short circuit.
  • fill the oil cup with grease, the starting motor is running empty, listen to the noise is normal, if not normal, should check the source of the noise, and eliminate.
  • Add the dry materials to the container (powder, fine granular and slurry materials are fed by vacuum), and then close the feed hole cover.
  • after closing the vacuum valve, open the vacuum pump, so that the drying container is negative pressure (600-755 mmHg).
  • Close the power switch, start the motor, press the working button, and the dryer begins to rotate.
  • open the heat carrier valve, let the heat carrier into the dry container interlayer, according to the process requirements test.
  • After the material is dried, close the valve of the heat carrier first, and then inject cooling water into the sandwich, and stop vacuuming after the material is cooled to room temperature. Open the vacuum valve, turn off the motor, stop the dryer rotation, open the hole cover and discharge the material.

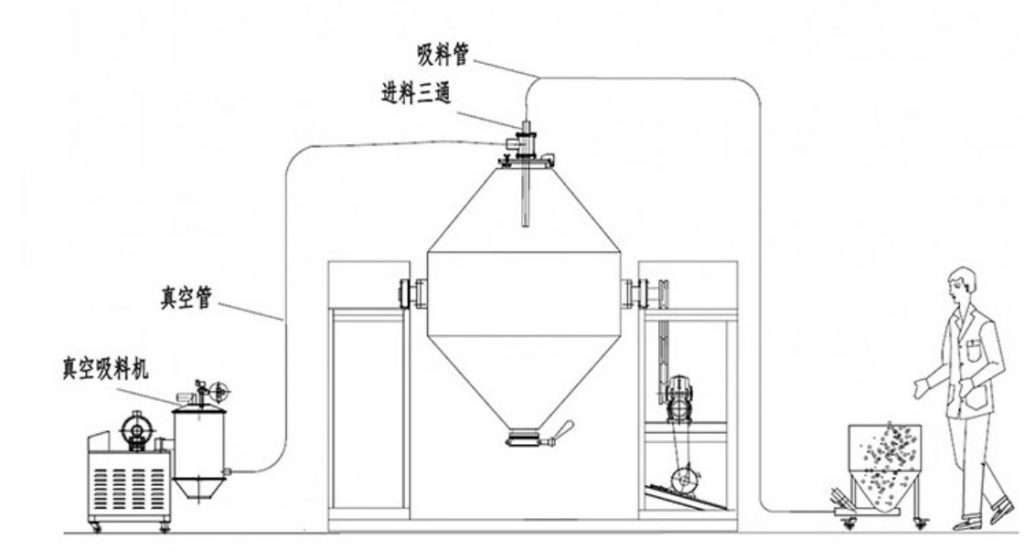

Installation Layout:

dual shaft shredder installation
dual shaft shredder installation

Application of Double Cone Rotary Vacuum Dryer:

This machine is suitable for vacuum drying and mixing of powder and granular materials in the pharmaceutical, food, chemical, and other industries. It is particularly well-suited for materials with the following requirements:

  • Heat-sensitive materials that cannot tolerate high temperatures.
  • Easily oxidized or hazardous materials.
  • Materials that require recovery of solvents and toxic gases.
  • Materials that need a very low content of residual volatile matter.
  • Materials that require thorough mixing and uniformity.

Double Cone Rotary Vacuum Dryer for Sale Review :

Fluid-Bed-Granulator

Fluid Bed Granulator

What is a Fluid Bed Granulator? Fluid Bed Granulator is a machine mainly used for pharmaceutical granulation and coating, characterized by safe operation and high degree of automation. Fluid Bed…
Dry-granulating-machine

Dry Granulating Machine

What is a Dry granulating machine? A dry granulating machine uses dry roller press technology to compress or form blocks from powder materials with a water content of ≤5%. The…
grinding-and-granulating-machine

BJB Grinding and Granulating Machine

What is a granulating machine? A granulating machine is an industrial device used to shape powdered or granular raw materials through the application of pressure and friction to form uniform…
Swing-Granulator

BJB Swing Granulator

Swing Granulator Parameter: A Swing Granulator is a machine for making pellets from dry material. The Swing Granulator will be wet powder or block dry material developed into the required…
Rotary-Granulator

Rotary Granulator

Rotary Granulator Parameter: Model Capacity(KG/H) Granulator diameter(mm) Dimension(mm L*W*H) Weight(KG) Motor Power(KW) Knife Size(MM) BJB-250 100-200 1.0-3 750*540*1400 350 3/4 250 BJB-350 150-350 1.0-3 800*650*1400 400 5.5/7/5 300 Rotary Granulator…
wet-granulator-2

BHLSG Wet Granulator

Wet Granulator Parameter: Model Volume(L) Max Loading(KG) Cutter Speed(rpm) Rotating Speed(RPM) Mixing Power(KW) Granulation Power(KW) BHLSG-50 50 30 50-3000 100-400 5.1 3 BHLSG-100 100 40 50-3000 80-270 11 4 BHLSG-200…
super-granulator

BSG Super Granulator

Super Granulation Definition & Meaning: A Super Granulator is also called “pelletizer”. It is an industrial device used to shape powdered or granular raw materials through the action of pressure…

About LKMixer

LKMixer is a professional manufacturer for fertilizer production line, grinder, mixer and granulator, shredder. These machines are widely used in food, pharmaceutical, cosmetic, health care products and chemical industries. The Food materials like Peanut, mushroom, seeds, potato, bean, tobacco, salt, cannabis, tea, Sugar, corn, Coffee, rice, pepper, grain as so on. Grinders have many types such as Pulse Dust Grinder which suitable for zero pollution environment, Turbine Mill  which is suitable for coffee bean, 12-120mesh all can meet, Ultrafine Grinding Mill covers 80-200mesh, and also Winnowing Dust Grinder or other grinding machines like SF Hammer. Welcome to contact us for details. Contact us for more information. Proposal, catalog, quotation. Mobile/WhatsApp: +86 18019763531 Tel: +86 21 66037855 Email: sales@lkmixer.com

Contact Us

FAQ(Click and See More)

Why Choose Us?

We have 20 years manufacturing experiences; 15600 cubic meters factory area; 5000sets annual capacity; 55 professional engineers;

What’s your main market?

South America: Brazil, Colombia, Peru, Bolivia, Uruguay, Paraguay ;Romania;
USA with UL Certification
Middle East: Saudi, Arabia, Oman, Turkey
Europe: Russia, Australia, Belarus, Ukraine, Poland

Can you support OEM?

– Yes, OEM or ODM. Machine can be customized according to customer detail requirement, including capacity and voltages, motor certifications.
– Drawing and raw materials also can be customized.

 What after-sale services?

– 7*24 customer service online;
– 7*24 engineers online services;
– 12 months warranty services.

WHAT kind of MACHINE YOUR COMPANY HAVE?

We majorly produce CRUSHER, GRINDER, MIXER, and also have auxiliary machines like DRYER, GRANULATOR, VIBRATING SIFTER, CONVEYOR, etc.
We can customize whole production line according to your capacity, material, output sizes of mesh and mm of granule and powder.


CAN YOU GIVE ME GUIDE ON OTHER MACHINE ? TO FULL MY PRODUCTION LINE

YES ! Our f have factory build more than 20 years now, we can design and customize whole line, besides of the grinding machine, mixing machine, we can also fully support to provide the washing machine, cutting machine, drying machine, packing machine, filling machine. Though we are not producing these machine, but our brother companies co-work together for over 20 years, we have rich experience in providing you a full effective production line, fully automatically or semi-automatically.

HOW TO VISIT YOUR COMPANY?

Our Factory located in Jiangsu Province, very near to Shanghai, you can fly to Shanghai Pudong Airport, we pick you up and take you by car 2 hours ride, can reach our factory, welcome your visit.

WHAT’S YOUR BEFORE & AFTER SERVICE ?

1) Before your purchasing, we need to know your detail request, such as what kind of material you want to grind and mixing, what final product powder or granule you want to reach. Because different material and powder sizes request of different machine to do. We can provide professional advice and rich experience help to choose machine. Most of the products we have already did before for other customer, trail test or run mass production, so we knows which machine is best in performance of grinding and mixing. This is of very importance in helping you choose the right model. We also wish this can help our customer a lot. Even the material we didn’t do before, we will prepare the same material and to do the trail test and send video to you for your reference.
2) One Year guarantee of machine quality. If the machine have problem within one year, we will send you the spare parts to you for replacement, but this not including the damage caused by human causes. We also have 24 hours on line guide for customer, if you have operation difficulty, we will guide by video and on line communication with our engineer for your emergency debug.
3) For small machine, we sell with whole machine, it’s no need to install, and easy to operation, no problems for operation. While for large machine, its’s also not difficult to install with video guideline, but if you need, we can assign our technicians to go abroad, the round ticket, food and residents will be paid by customer.

HOW ABOUT YOUR PAYMENT TERM?

Our payment term is T/T. 50% payment in advance, rest of 50% payment finish before the goods shipped. When we finish the machine production we will do trail test and run the machine take videos for your green light. You pay the rest of 50% payment then.

What are the different types of granulators?

In terms of processing, pelletizer can be divided into two types: wet pelletizer, which uses liquid in the processing process, and dry pelletizer, which does not use liquid. Wet granulation involves a lot of water and detergent, and the purpose is to clean the contaminated material and also to cool the machine.

Influencing factors of the drying effectiveness of Double Cone Rotary Vacuum Dryer:

Influencing factors: ① the condition of the material to be dried (such as the shape, size, storage method of the material), the moisture content, density, viscosity and other properties of the material itself. In addition, the vacuum drying speed can be improved if the initial temperature of the material is increased, the material is treated before vacuum filtration and the moisture content is reduced.
Bulk density of materials: Bulk density of materials refers to the mass of materials per unit volume. Since the material is a mixture of dry material and wet material, dry material is often granular or powdered, due to the different wet content in the material, the gap between dry material particles is also different. Therefore, the bulk density of raw wet materials and materials in the drying process is also very different, which should be paid attention to in the preparation of raw materials.
Allowable temperature of the material: Allowable temperature is the highest temperature that the material can withstand, exceeding the temperature will cause the material titer change, decomposition damage or discoloration. Heat-sensitive drugs can generally be used around 60℃.
The viscosity of the material: the viscosity of the material changes with the moisture content, the viscosity can make the material agglomerate into a block and stick to the cylinder wall, and it is easy to adhere to the dust collector and the pipe after drying. In order to solve this problem, the suspension type double-cone rotary vacuum dryer adopts the pneumatic vibration and crushing device.
Material slip Angle: When stacking granular or powdered materials, when the material pile inclined and the Angle between the bottom surface increases to a certain Angle, the phenomenon of side material sliding down will occur. The Angle between the slope of the material slide and the bottom is called the slip Angle of the material. The slip Angle is related to material composition, moisture content, particle size and viscosity. Therefore, when designing and selecting the double-cone rotary vacuum dryer, the Angle of the double-cone should be selected according to the slip Angle of the material.
The higher the vacuum degree, the more conducive to the evaporation of water at a lower temperature, but the higher the vacuum degree is not conducive to heat conduction, affecting the heating effect of the material. In order to improve the drying speed of the material, the vacuum degree should be considered comprehensively according to the characteristics of the material. Generally, the vacuum degree should not be less than 10⁴Pa.
