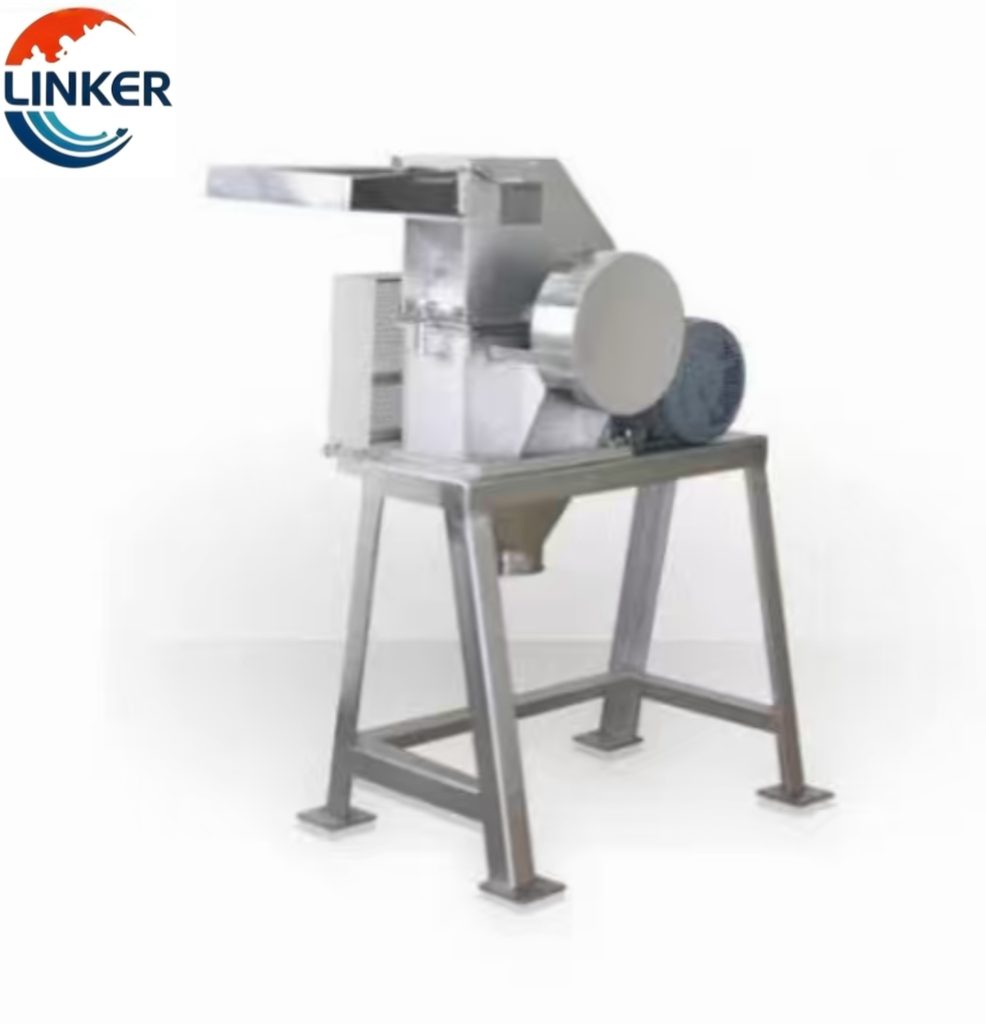

Catalyst Grinding Mill

What is a Catalyst Grinding Mill？

A catalyst grinding mill is a specialised milling system that reduces catalytic materials to micron or nanometre dimensions while safeguarding their purity, surface activity, and particle uniformity, so the resulting catalyst can deliver higher reaction efficiency and a longer working life. The central idea is that a catalyst is not simply a powder to be made finer. Its performance depends on active sites, pore channels, crystal structure, metal dispersion, and surface chemistry. Grinding can increase surface area and improve reactivity, but it can also collapse pores, damage carriers, introduce impurities, or overheat the active phase. A catalyst grinding mill therefore has to achieve fineness and preservation at the same time. The discussion below follows five main questions: why catalyst grinding is more demanding than ordinary milling, how the main grinding mechanisms work, what equipment types and configurations are used, what technical advantages these systems provide, and where they are applied and how they are kept reliable.

Why is catalyst grinding more demanding than ordinary powder milling?

Catalyst performance is closely tied to its physical and chemical structure. A catalyst usually consists of active components dispersed on a support, and its effectiveness depends on how many active sites are exposed, how easily reactants can reach those sites, and how stable the structure remains under reaction conditions. Ordinary grinding may only aim at reducing particle size. Catalyst grinding must also protect the pore network, avoid phase transformations, prevent sintering of active metals, and keep the support structure intact. If the grinding process generates too much heat, active nanoparticles can migrate and fuse together. If the mechanical force is too aggressive, pores can collapse and the catalyst can lose accessible surface area. These changes may not be visible in a simple particle size measurement, but they can seriously reduce reaction rates and selectivity.

Particle size distribution is another reason catalyst grinding is more demanding. It is not enough to achieve a low average particle size. A wide distribution containing both very fine and very coarse particles can cause uneven reactions, poor packing, inconsistent pressure drop, and unreliable performance in a reactor. Very fine particles may also clog filters or create handling problems, while coarse particles may leave part of the active material unused. A catalyst grinding mill therefore aims for a narrow particle size window. This requires not only good grinding media and rotor design but also classification, speed control, and repeatable process settings. The goal is a powder that behaves consistently from batch to batch, not merely a powder that looks fine.

Contamination is a further concern. Many catalyst systems are extremely sensitive to trace metals. If the grinding chamber, media, or rotor wear during operation, iron, chromium, nickel, or other impurities can enter the product. These impurities may poison active sites, alter selectivity, or reduce service life. This is why catalyst grinding equipment often uses inert contact materials such as zirconia, tungsten carbide, 316L stainless steel, or Hastelloy. The choice depends on the material being processed and the acceptable level of contamination. In some cases, even a tiny amount of wear metal can make the difference between a high-performance catalyst and a rejected batch.

Thermal damage is equally important. Grinding generates heat through impact, friction, and shear. For a heat-sensitive catalyst, that heat can decompose precursors, oxidise active metals, change crystal phases, or sinter nanoparticles. Cooling is therefore not an optional feature. It is part of the core process design. A catalyst grinding mill may use internal cooling, circulating coolant, air cooling, or an external refrigeration unit. Some systems maintain temperature within plus or minus one degree Celsius. The purpose is to keep the material inside a safe thermal window throughout the entire grinding cycle. In short, catalyst grinding is a precision operation that balances fineness, purity, morphology, and temperature.

How do the main grinding mechanisms break down catalyst materials while protecting activity?

A planetary catalyst ball mill uses the combined motion of rotating jars to create high-energy collisions. The jars revolve around a central axis while also spinning in the opposite direction. This motion drives the grinding balls to impact, rub, and shear the material inside. Because the energy is concentrated and the movement is repeated quickly, the material can be reduced to nanometre scale in a relatively short time. However, the same high energy can also create local hot spots. That is why planetary catalyst mills often include intelligent temperature control. The cooling module prevents the active phase from decomposing or undergoing an unwanted phase change. Inert jars made of zirconia or tungsten carbide further reduce the risk of contamination. This type of mill is common in laboratory research and small-scale preparation of precious metal catalysts, where sample integrity matters more than throughput.

A high-shear catalyst grinding and dispersing mill works in a different way. Material passes through a three-stage rotor-stator zone where it is subjected to intense shear, extrusion, and grinding. The rotor can reach speeds as high as fourteen thousand revolutions per minute, and the gap between rotor and stator may be only zero point two to zero point three millimetres. Under these conditions, large agglomerates are broken apart quickly, and the smallest discharge fineness can reach zero point five micrometres. The process also disperses the powder evenly, which helps prevent re-agglomeration after grinding. This is especially useful for fluid catalytic cracking catalysts and metal oxide catalyst slurries, where uniform dispersion is as important as particle size reduction.

A three-way catalytic industrial ball mill is designed for larger-scale processing. It usually uses a horizontal overflow or grate-type structure and can operate in either dry or wet mode. The equipment is built to handle hard materials such as automotive three-way catalysts. A typical industrial unit may have a ball load of eleven point five tonnes and a production capacity of seven point one seven tonnes per hour, with a discharge size between zero point zero seven one and zero point four millimetres. The goal here is not nano grinding but reliable coarse and fine grinding at scale. The mill must reduce particle size without excessively damaging the carrier structure. This balance is important because the carrier provides the framework that holds the active components and influences gas flow and contact efficiency.

A catalyst colloid mill uses a conical three-stage serrated rotor-stator inside a fully enclosed chamber. The design avoids dead corners and supports clean-in-place procedures. The linear speed can reach twenty-three metres per second, which provides strong shear and dispersion. This type of mill is often used for platinum carbon fuel cell catalysts and pharmaceutical supported catalysts. It can produce a fine, uniform suspension while keeping the active material well distributed. Because the chamber is fully enclosed, the risk of powder leakage and external contamination is low. Each of these mechanisms has its own strengths, but they share the same principle: reduce particle size through controlled physical forces while protecting the catalyst from heat, contamination, and structural damage.

What equipment types and configurations are used in catalyst processing?

The planetary catalyst ball mill is a common choice for laboratory development and small-batch production. It typically uses inert grinding jars made of zirconia or tungsten carbide, along with an internal cooling system. The discharge particle size can reach the nanometre range, and the jar volume may range from zero point four litres to one hundred litres. This range allows researchers to test small samples and then scale up with similar principles. The mill is particularly suitable for precious metal catalysts, where even small changes in dispersion or surface area can affect performance. Because the equipment is enclosed and uses inert contact materials, it also helps protect expensive or sensitive catalyst formulations.

The high-shear catalyst grinding and dispersing machine is built around a three-stage progressive rotor-stator. Its maximum speed can reach fourteen thousand revolutions per minute, with a rotor-stator gap of zero point two to zero point three millimetres. The minimum fineness can be zero point five micrometres. This configuration is often used for wet grinding of fluid catalytic cracking catalysts, metal oxide catalysts, and similar slurries. The high shear not only breaks down particles but also distributes them evenly through the liquid medium. This reduces the chance that particles will settle or form hard agglomerates later. For catalyst slurries, uniform dispersion is critical because uneven distribution can lead to inconsistent coating, blocked nozzles, or uneven catalytic activity.

The three-way catalytic industrial ball mill is designed for large-scale operations. It uses a horizontal overflow or grate-type structure and supports both dry and wet grinding. A typical unit may have a ball load of eleven point five tonnes and a production capacity of seven point one seven tonnes per hour. The discharge size can range from zero point zero seven one to zero point four millimetres. This type of equipment is used for automotive exhaust three-way catalysts and for the recovery of industrial spent catalysts. In recovery operations, the goal may be to liberate valuable metals or prepare the material for downstream extraction. The mill must therefore handle hard, possibly contaminated feed while maintaining stable output and avoiding excessive damage to the carrier.

The catalyst colloid mill uses a conical three-stage serrated rotor-stator in a fully sealed, dead-corner-free chamber. Its linear speed can reach twenty-three metres per second, and it supports clean-in-place cleaning. This makes it suitable for platinum carbon fuel cell catalysts and pharmaceutical supported catalysts. The fully enclosed design helps prevent leakage of ultrafine catalyst powder and protects the product from outside contamination. When combined with appropriate contact materials and cooling, this type of mill can deliver fine grinding and uniform dispersion in one step. Across all these configurations, the choice of materials, cooling method, and discharge design is as important as the grinding mechanism itself.

What technical advantages set catalyst grinding mills apart?

One major advantage is zero-contamination protection. The parts that touch the material are often made from inert materials such as zirconia, 316L titanium steel, or Hastelloy. These materials resist wear and reduce the chance that metal impurities will enter the catalyst. For catalysts used in petrochemical, pharmaceutical, and fuel cell applications, trace metal contamination can poison active sites or change selectivity. A conventional steel mill may be acceptable for ordinary powders, but it is often unsuitable for high-purity catalysts. By using inert contact surfaces, a catalyst grinding mill helps preserve the chemical identity of the product.

A second advantage is precise retention of activity. Closed-loop temperature control keeps the grinding temperature within a narrow range, and some systems can hold it to within plus or minus one degree Celsius. This prevents active components from decomposing, changing phase, or sintering. It also helps protect the support structure. In many cases, the loss of specific surface area and reaction activity can be kept below five percent. For expensive catalysts, especially those containing platinum, palladium, or other precious metals, this level of protection has direct economic value. A mill that produces fine powder but destroys activity is not a successful catalyst grinding solution.

A third advantage is highly controllable particle size. Variable-frequency speed control and staged grinding design allow the operator to adjust the final particle size distribution. The result is a narrow distribution rather than a broad mixture of fines and coarse particles. Narrow distribution improves reaction stability because the catalyst behaves more uniformly in the reactor. It also improves batch-to-batch consistency. In industries such as petroleum refining, pharmaceuticals, and new energy materials, consistency is a strict requirement. If one batch has a different particle size profile, the downstream reaction may behave differently. A catalyst grinding mill helps reduce that variability.

A fourth advantage is safety and compliance. Many catalyst powders are fine, potentially explosive, or hazardous to inhale. A fully enclosed positive and negative pressure operating structure prevents ultrafine powder from leaking into the workplace. Explosion-proof designs and clean production features allow the equipment to meet the strict requirements of petrochemical and pharmaceutical industries. This is not only about protecting workers and the environment. It is also about protecting the product from moisture, oxygen, and outside contamination. Safety, purity, and process reliability are therefore connected. A well-designed catalyst grinding mill supports all three at the same time.

Where are catalyst grinding mills used, and how are they kept reliable?

In petrochemical production, catalyst grinding mills are used for fluid catalytic cracking catalysts and hydrotreating catalysts. These materials often need to be processed into uniform slurries before they are formed, coated, or used in a reactor. Wet grinding is common because it controls dust, improves dispersion, and helps maintain a stable particle size. The mill must handle large volumes while keeping the particle size distribution narrow. If the slurry contains agglomerates or coarse particles, the final catalyst may have uneven activity, poor mechanical strength, or inconsistent performance. A catalyst grinding mill helps ensure that the slurry is uniform and suitable for downstream processing.

In the new energy sector, catalyst grinding mills are used for hydrogen fuel cell platinum carbon catalysts and lithium battery catalytic materials. These applications often require nanoscale grinding and excellent dispersion of precious metals. If the platinum particles are not evenly distributed, the catalyst cannot use the metal efficiently, and performance per gram of platinum drops. A high-shear mill or colloid mill can break down agglomerates and distribute the active phase throughout the support. The result is better utilisation of expensive metals and more consistent electrochemical performance. Because these materials are sensitive, temperature control and contamination control are especially important.

In environmental protection, catalyst grinding mills support the preparation of automotive three-way catalysts and volatile organic compound purification catalysts. They are also used in the pre-treatment of spent catalysts for precious metal recovery. In recovery operations, the goal is to liberate valuable metals from the carrier so that they can be extracted efficiently. The mill must reduce particle size without causing excessive loss or creating difficult-to-handle fines. In catalyst manufacturing, the mill must produce a uniform powder or slurry that can be coated onto a honeycomb or other support. Both tasks require reliable particle size control and stable operation.

In pharmaceutical and fine chemical production, catalyst grinding mills are used for supported catalysts, molecular sieve catalysts, and organic synthesis catalysts. These materials may have delicate carrier structures that should not be destroyed during grinding. A gentle but effective grinding mechanism, combined with inert contact parts and temperature control, helps preserve the carrier and the active phase. To keep the equipment reliable, operators should check wear parts regularly, monitor the cooling system, clean the chamber and discharge path between batches, control the feed rate, and record temperature, speed, and particle size data. Regular maintenance prevents contamination, overheating, and particle size drift. With good operating habits, a catalyst grinding mill can deliver consistent, high-purity, high-activity catalyst powder over a long service life.

In summary, a catalyst grinding mill is far more than a machine for making particles smaller. It is a precision system that reduces catalytic materials while protecting purity, surface area, pore structure, active phase dispersion, and thermal stability. Its main mechanisms include planetary ball milling, high-shear dispersing, industrial ball milling, and colloid milling. Its configurations use inert contact materials, closed-loop cooling, narrow particle size control, and enclosed safety designs. These features give it advantages in contamination prevention, activity retention, particle size consistency, and regulatory compliance. It serves petrochemical refining, new energy, environmental protection, pharmaceuticals, and fine chemicals. The core value of the catalyst grinding mill is simple: it allows catalysts to be reduced to the right size without losing the properties that make them work.
