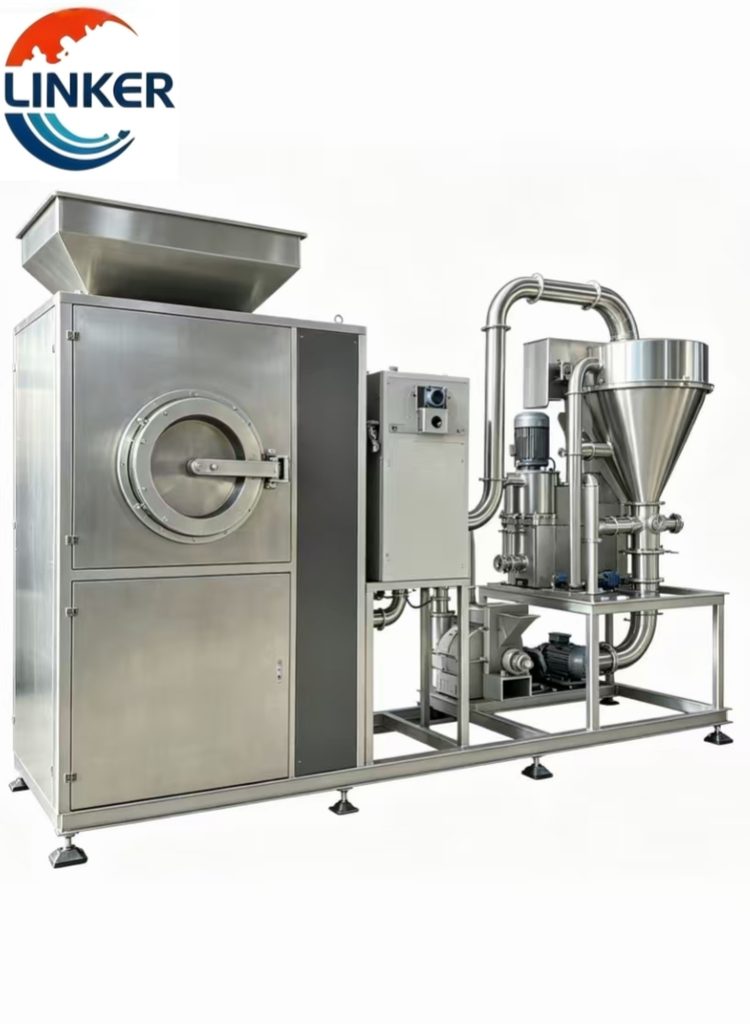

Cryogenic Pulverizer For Chemical Materials

What is a Cryogenic Pulverizer For Chemical Materials？

A cryogenic pulverizer for chemical materials is a milling system that uses liquid nitrogen or another deep-cold medium to make tough, sticky, heat-sensitive, or elastic chemical feedstocks brittle before reducing them to fine powder , so they can be ground without melting, caking, decomposing, or losing their chemical identity. The central idea is that cold changes the physical behaviour of the material, and controlled grinding then turns that brittle feed into a uniform powder while protecting its chemistry. In ordinary room-temperature milling, many chemical materials soften, stick to the chamber, form lumps, or degrade before the target fineness is reached. A cryogenic system solves this problem by lowering the material below its glass transition point, where it becomes glassy and brittle, and then applying impact, shear, and classification inside a sealed cold environment. The result is a finer, cleaner, more flowable powder that supports later synthesis, compounding, or forming. The discussion below follows five main questions: why room-temperature grinding fails, how the cold grinding process works, what equipment and controls are needed, what benefits the process provides, and where it is used.

Why do many chemical materials resist ordinary room-temperature grinding?

Many chemical materials are not simply hard and brittle. They may be tough, rubbery, sticky, waxy, elastic, or heat-sensitive. Resins, rubbers, waxes, high polymers, and certain pharmaceutical intermediates are common examples. At room temperature, these materials absorb mechanical energy rather than breaking cleanly. Instead of forming powder, they deform, soften, smear on the grinding surfaces, and stick to the chamber walls. The mill may keep running, but the product becomes a paste, a lump, or a coarse mixture with a wide particle size distribution. This is one of the most common reasons why a conventional pulverizer fails on chemical feedstocks.

Heat makes the problem worse. Grinding generates friction and impact energy, and much of that energy turns into heat. For a heat-sensitive chemical, even a moderate temperature rise can cause decomposition, oxidation, colour change, or loss of active ingredients. A pharmaceutical intermediate may lose potency. A polymer may cross-link or degrade. A wax may melt and coat the grinding parts. A sticky material may form a hard deposit that is difficult to remove and contaminates the next batch. In some cases, the material also releases solvent vapour or fine combustible dust, creating fire and explosion risks. Room-temperature grinding therefore has both quality and safety limits.

Another difficulty is that many chemical materials have a glass transition temperature. Above that temperature, the material is soft, flexible, or rubbery. Below it, the material becomes hard and glass-like. In the glassy state, it fractures instead of stretching. This is the key to cryogenic grinding. By cooling the material below its glass transition point, the mill changes its mechanical behaviour. A material that would only smear at room temperature can be shattered into fine particles when it is cold and brittle. The same grinding force that failed before can now produce a clean powder.

Particle size also suffers when the material is not brittle. If the feed smears or agglomerates, the classifier cannot separate fine powder properly. Coarse lumps may remain, while fine particles stick together into larger clusters. The final product may look fine at first but later cake during storage or fail to disperse in a solvent. For chemical applications, this inconsistency is unacceptable. The material must not only be small; it must be uniform, free-flowing, and chemically unchanged. This is why a cryogenic pulverizer is used when ordinary grinding cannot deliver both fineness and quality.

How does a cryogenic pulverizer embrittle and break down tough chemical feed?

The process starts with cooling. Liquid nitrogen is the most common cold source, although other refrigerants or mechanical cooling systems can be used. The material is fed into a pre-cooling chamber or directly into the grinding zone, where it is exposed to a controlled low temperature. The operating range can be adjusted from about minus one hundred and ninety-six degrees Celsius up to room temperature, depending on the material’s brittleness and heat sensitivity. The goal is not necessarily the coldest possible temperature. The goal is the temperature at which the material becomes brittle enough to grind without becoming so cold that it wastes energy or causes other problems.

Once the material is brittle, the grinding chamber applies mechanical impact, shear, and attrition. A high-speed rotor may drive hammers, pins, or blades that strike the frozen particles. The particles also collide with the chamber wall, with the rotor, and with one another. Because the material is now glassy, it fractures rather than deforming. The fragments are carried upward by the gas stream into a high-precision turbine classifier. Fine particles that meet the target size pass through and are collected. Oversized particles are returned to the grinding zone for another pass. This closed-loop classification allows the mill to produce a controlled particle size, often from about one hundred to three thousand mesh, depending on the material and equipment.

The cold environment must be maintained throughout the grinding and classification steps. If the material warms up before it is collected, it may soften again and stick to surfaces. That is why the grinding chamber, classifier, and discharge path are insulated and sealed. The low-temperature gas also helps carry heat away and keeps the material below its degradation temperature. In some systems, the gas is not simply released. Nitrogen or another inert gas is recirculated through the loop, which reduces consumption and lowers operating cost. This recirculation can cut liquid nitrogen use by more than forty percent compared with older once-through designs.

The use of an inert gas has another important benefit. Many chemical powders are flammable, explosive, or easily oxidised. If air is present, fine dust and solvent vapour can create a serious hazard, and oxygen can react with sensitive materials. By using nitrogen or another inert gas, the system reduces oxygen content and lowers the risk of combustion or oxidation. The material is ground, classified, and discharged without exposure to the outside atmosphere. This makes the process suitable for reactive, toxic, or high-purity chemical materials that would be difficult or dangerous to handle in an open mill.

What components and controls keep a cryogenic chemical pulverizer cold, clean, and safe?

The low-temperature refrigeration unit is the first major component. It usually includes a liquid nitrogen storage tank, insulated transfer lines, control valves, and a pre-cooling chamber. The system must deliver the right amount of cold to the right place at the right time. If cooling is too weak, the material will not become brittle. If cooling is too strong, energy is wasted and the product may become unnecessarily cold. A well-designed unit can regulate the chamber temperature across a wide range and adjust it for different chemical materials. This flexibility is important because every material has its own brittleness behaviour and safe temperature limit.

The grinding and classification unit is the second major part. The grinding chamber is often made from low-temperature-resistant alloy to withstand thermal stress and mechanical wear. The rotor and impact elements are designed for high-speed operation in a cold environment. The classifier is a high-precision turbine or similar device that can be adjusted to control the final fineness. Oversized particles return automatically to the grinding zone. The whole unit is built to handle the sharp, brittle particles produced by cryogenic grinding. Wear resistance and cleanability are both important, because chemical producers often switch between different products and cannot tolerate cross-contamination.

The sealed circulation unit is the third key element. The system operates as a closed loop filled with inert gas. Cold nitrogen is recovered and reused instead of being vented after one pass. This reduces both cost and environmental impact. The closed loop also prevents dust from escaping and keeps oxygen and moisture away from the material. For explosive or oxidation-prone chemicals, this is a safety requirement, not a luxury. The entire system runs under negative pressure, so any small leak pulls air inward rather than pushing hazardous dust outward. This protects workers and the workplace.

The intelligent control unit ties everything together. A programmable logic controller with a touch screen monitors chamber temperature, pressure, feed rate, classifier speed, and other operating parameters. It automatically matches refrigeration capacity with grinding power. If the temperature rises, more coolant is supplied. If the feed becomes harder, the rotor speed or feed rate can be adjusted. The system can run with minimal manual intervention and still keep the product within specification. This level of control is essential for repeatable production. It also helps prevent accidents caused by overheating, overfeeding, or loss of cooling.

The dust removal and discharge unit completes the system. A low-temperature pulse dust collector captures ultra-fine powder while preventing cold loss. The collected powder is discharged through a sealed rotary valve or similar device. There is no open transfer, no dust cloud, and no unnecessary exposure to air. Contact parts can be made from 304 or 316 stainless steel, ceramic, or other compatible materials to avoid contamination. The system is designed for easy dismantling and cleaning, which supports flexible production of multiple high-value chemical products. Together, these components make cryogenic grinding a controlled, enclosed, and reliable process rather than a simple cooling step before a mill.

What advantages does cryogenic grinding give difficult or sensitive chemical materials?

The most important advantage is material adaptability. A cryogenic pulverizer can process materials that ordinary mills cannot handle well, including heat-sensitive, high-toughness, high-viscosity, and elastic chemicals. Resins, rubbers, waxes, and polymers that would soften or stick at room temperature become brittle and easy to fracture when cold. The problem of material sticking to the chamber, forming lumps, or failing to reach the target fineness is largely solved. This expands the range of chemical products that can be made as fine powders. It also allows producers to use feedstocks that would otherwise require different processing routes or be rejected as unsuitable for fine grinding.

The second advantage is protection of chemical properties. Because the grinding chamber stays below the material’s degradation temperature, the product does not suffer heat decomposition, oxidation, discolouration, or loss of active ingredients. This is critical for pharmaceutical-grade intermediates, high-end fine chemicals, and specialty polymers. A room-temperature mill may produce a fine powder, but the heat generated during grinding can change the material in ways that are not visible until later testing. A cryogenic system avoids that hidden damage. The final powder retains the chemical identity and performance of the original material.

The third advantage is high purity and low cross-contamination. The parts that touch the product can be made from stainless steel, ceramic, or other non-reactive materials. Because the material is cold and brittle, it does not smear or stick as it would at room temperature, so less residue remains in the chamber. The system can also be designed for quick dismantling and cleaning. This makes it suitable for multi-product plants that produce different high-value chemicals on the same line. Contamination is a serious risk in fine chemical and pharmaceutical production, and a well-designed cryogenic pulverizer helps keep that risk under control.

The fourth advantage is safety and environmental performance. The closed negative-pressure loop prevents dust leakage. The inert gas atmosphere reduces the risk of fire and explosion when processing combustible chemical powders. Liquid nitrogen or cold gas is recirculated, which lowers consumption and operating cost. Compared with traditional once-through systems, recirculation can reduce liquid nitrogen use by more than forty percent. The result is a process that is safer for workers, cleaner for the environment, and more economical to run. It also helps the plant meet strict chemical safety and emission regulations.

The fifth advantage is product quality. Cryogenically ground powders usually have a narrow particle size distribution and fewer overheated or agglomerated particles. Because the material fractures cleanly in the brittle state, the powder flows and disperses better. This improves downstream processing, whether the powder is used in a synthesis reaction, compounded into a polymer, dispersed in a coating, or formed into a final product. Better flow and dispersion can increase reaction efficiency, reduce mixing time, and improve the uniformity of the final material. In high-value chemical production, these improvements often justify the cost of cryogenic grinding.

Where is cryogenic pulverizing used, and what value does it create for chemical production?

Cryogenic pulverizers are widely used in fine chemicals, pharmaceuticals, and polymer materials. In fine chemicals, they process resins, waxes, rubber, and other tough or sticky materials that cannot be ground at room temperature. In pharmaceuticals, they protect heat-sensitive intermediates and active ingredients from degradation. In polymer production, they reduce elastic or rubbery materials that would otherwise deform instead of breaking. The ability to handle these difficult feedstocks opens up product possibilities that ordinary mills cannot support. It allows companies to produce fine powders from materials that were previously considered impossible or impractical to grind.

The value is not only technical. It is also commercial. Many of these materials are high-value products. If a conventional mill produces off-specification powder, the entire batch may be rejected or require expensive reprocessing. A cryogenic pulverizer reduces that risk by protecting the material’s chemical and physical properties. It also improves yield because less material sticks to the equipment and less dust escapes. The powder that is produced is more uniform, more flowable, and more suitable for downstream use. This can reduce waste, lower rework, and improve customer satisfaction.

Another important value is process safety. Many chemical powders are combustible, toxic, or reactive. Handling them in an open mill creates risks for workers and the plant. A cryogenic system with inert gas circulation and negative-pressure operation keeps the material enclosed and reduces oxygen exposure. Spark and explosion risks are lowered. Dust emissions are controlled. The workplace is cleaner and safer. For companies that must comply with strict environmental, health, and safety rules, this is a major advantage. It allows them to process difficult materials without compromising regulatory compliance.

Finally, cryogenic pulverizing expands the range of products that can be manufactured. It makes it possible to produce ultra-fine powders from heat-sensitive, elastic, sticky, or oxidation-prone chemicals on a commercial scale. This supports innovation in coatings, adhesives, battery materials, pharmaceutical formulations, and specialty polymers. It also helps companies replace older processes that were inefficient, dangerous, or unable to reach the required fineness. In this sense, the cryogenic pulverizer is not just a piece of grinding equipment. It is a key enabler for advanced chemical manufacturing.

In summary, a cryogenic pulverizer for chemical materials uses deep cold to change tough, sticky, heat-sensitive, or elastic feedstocks into brittle solids that can be ground into fine, uniform powder without melting, caking, decomposing, or oxidising. It combines a low-temperature refrigeration unit, a grinding and classification section, a sealed inert-gas circulation loop, an intelligent control system, and a low-temperature dust removal and discharge unit. The process protects chemical properties, prevents contamination, reduces fire and explosion risk, and lowers liquid nitrogen consumption through recirculation. It is used in fine chemicals, pharmaceuticals, and polymer materials, where ordinary room-temperature grinding fails. Its core value is simple: cold makes difficult chemicals grindable, and controlled grinding turns them into high-quality powders while preserving what makes them valuable. By expanding the range of materials that can be finely pulverized, it supports safer, cleaner, and more profitable chemical production.
