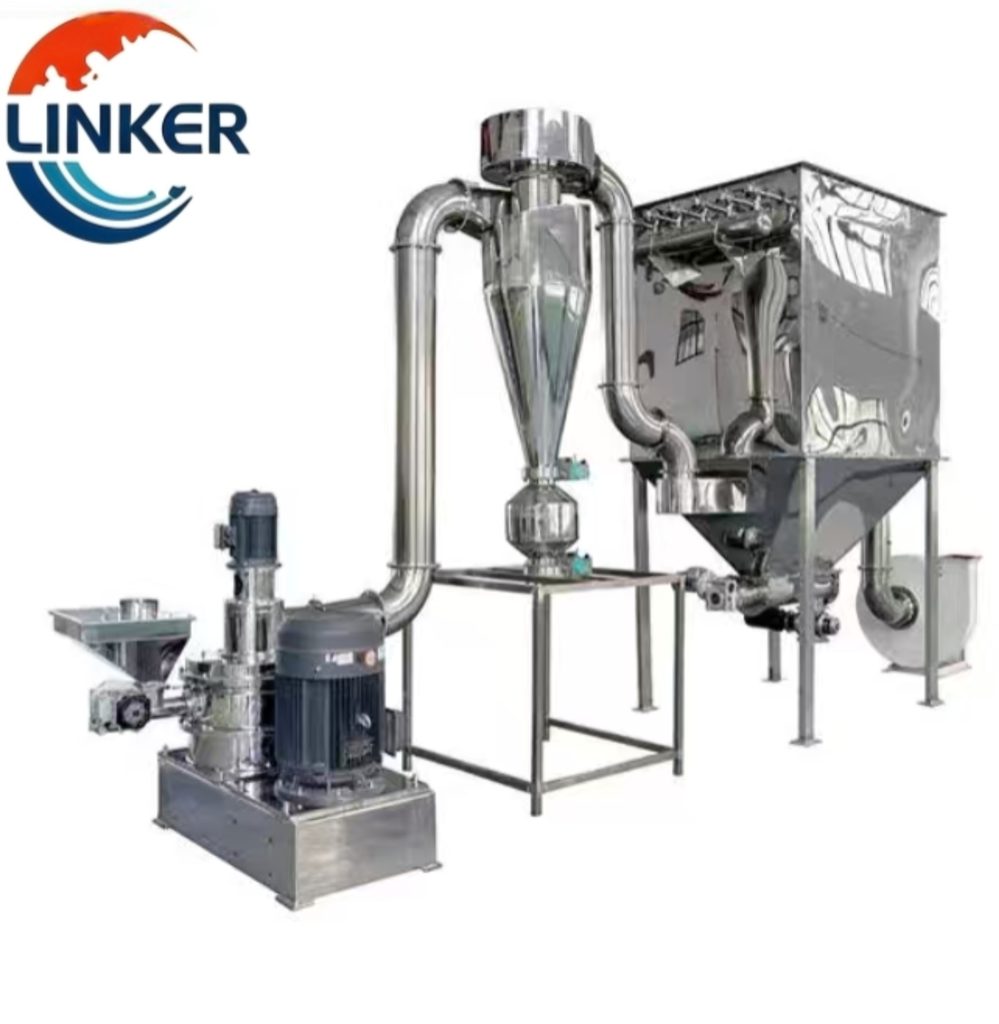

Heat Densitive Material Grinder

What is a Heat Densitive Material Grinder？

A heat-sensitive material grinder is a milling system built to break down temperature-sensitive substances without letting heat ruin their active ingredients, flavour, structure, colour, or performance. Its central idea is that cooling is not an optional add-on but the main organising principle. The machine still has to grind material to the required fineness, but it must do so inside a safe temperature range from start to finish. This is what separates it from an ordinary mill, which usually cares first about output and particle size and only second about heat. The discussion below follows five main questions: why temperature control comes first, how heat is reduced and removed, what types of equipment exist, what practical advantages they offer, and where they are used and how they should be maintained.

Why does temperature control matter more than speed or fineness for heat-sensitive materials?

Many materials begin to change when they are exposed to even moderate heat. Active pharmaceutical ingredients, proteins, essential oils, flavour compounds, certain starches and sugars, and some plastics and rubbers are all examples. In a normal grinder, the material is repeatedly hit, rubbed, and sheared. Those actions produce heat. If that heat cannot escape quickly, the temperature inside the grinding chamber rises. For a tough mineral powder, this may only be a minor issue. For a heat-sensitive material, it can mean the difference between a usable product and a rejected batch.

The damage is often not obvious at first. A drug ingredient may lose potency. A fragrance may evaporate. A polymer may soften, become sticky, or begin to cure before it is supposed to. A food powder may lose colour, taste, or nutritional value. In some cases the powder still looks fine after grinding, but later testing shows that the active content has fallen or that the material no longer behaves as expected. This is why heat-sensitive grinding cannot be judged only by particle size. The thermal history of the material matters just as much as the final fineness.

Traditional grinding equipment tends to treat cooling as a supporting function. If the machine becomes hot, operators may slow down the feed or stop for a while. That approach is not good enough for heat-sensitive materials, because once the material has been overheated, the change cannot be reversed. Cooling after the fact does not restore an active ingredient or bring back a lost aroma. The safe temperature range must be maintained during the grinding process itself, not after it.

For this reason, heat-sensitive material grinders are designed around the idea of continuous thermal protection. Some systems keep the material below about thirty degrees Celsius. Others use liquid nitrogen to create an ultra-low temperature environment as low as minus one hundred and ninety-six degrees Celsius. The exact temperature depends on the material, but the principle is the same: the material must not reach the point where it degrades, melts, cakes, discolours, or loses function. Temperature control is therefore the first design requirement, not a secondary concern.

How do these machines reduce heat at the source and remove the heat that is produced?

The first step is to generate less heat in the first place. A jet mill is a good example. Instead of using fast-spinning hammers or blades to strike the material, it uses high-speed air streams to accelerate particles so that they collide with one another. Because there is no high-speed mechanical part constantly rubbing against the material, friction heat is greatly reduced. A three-roll mill takes a different route. It uses asynchronous shear between rollers to disperse and refine the material instead of high-speed impact. This also slows down the rate at which heat builds up.

The second step is to carry away the heat that is still produced. Many machines use hollow rollers with circulating coolant. Others use internal air cooling, external refrigeration units, or a combination of methods. Some high-end models can control temperature to within plus or minus zero point five degrees Celsius. That level of precision matters because a small rise in temperature can be enough to damage a sensitive ingredient. Liquid nitrogen systems go much further and create a deeply cold environment, which is useful for materials that are extremely difficult to grind at room temperature.

A complete system often combines low-heat grinding structures with closed-loop temperature control. Sensors monitor the temperature in the grinding zone and send signals to the control system. The system then adjusts coolant flow, air intake, feed rate, or rotor speed. The goal is not only to keep the average temperature low but also to prevent local hot spots. In many failures, the overall temperature looks acceptable while a small area inside the mill has become much hotter. Material passing through that area may already be damaged. Closed-loop control helps avoid this hidden risk.

The enclosed airflow path also plays an important role. Moving air removes heat, dust, and moisture, and it reduces the time the material spends in contact with oxygen. For materials that oxidise easily or absorb moisture, this is a real advantage. The airflow can also help with classification and discharge, so cooling is not a separate operation but part of the same integrated process. In short, the machine reduces heat at the source, removes heat during operation, and keeps the whole process under control.

What types of heat-sensitive material grinders are available, and what problems do they solve?

Jet heat-sensitive mills are widely used for materials that are extremely afraid of heat. They use high-speed ambient or low-temperature air to make particles collide and break apart. Because mechanical wear is low and heat generation is limited, they are suitable for pharmaceutical active ingredients, flavours and fragrances, active proteins, and fine chemicals. For these materials, fine grinding is important, but protecting activity and aroma is even more important. A jet mill can achieve both when it is set up correctly.

Liquid nitrogen cryogenic pulverisers use deep cold to change the behaviour of the material before grinding. Plastics, rubber, and elastic materials are often difficult to grind at room temperature because they soften, stretch, or become sticky. Liquid nitrogen cools them until they become brittle, almost like glass. Once brittle, they break easily, and the grinding process produces less heat. This type of machine is therefore used for materials that are not only heat-sensitive but also tough or elastic at normal temperatures.

Low-temperature hammer cyclone mills use an internal air-cooling system. They are often chosen for Chinese medicinal herbs, ordinary food materials that are somewhat heat-sensitive, and medium-scale production. They are not as extreme as liquid nitrogen systems, but they offer a practical balance between grinding efficiency and thermal protection. For many users, this is enough to prevent degradation while still processing a reasonable batch size.

Temperature-controlled three-roll mills are designed for high-viscosity pastes and semi-solid materials. Electronic pastes, pharmaceutical ointments, heat-sensitive inks, and similar products can trap heat inside a thick mass. Roller cooling is essential because the material cannot easily release heat on its own. The rollers are kept at a controlled temperature while their shearing action disperses and refines the product. Without this temperature control, the paste might cure, discolour, or lose key properties.

Low-temperature planetary ball mills are common in laboratory research and development. They usually use external air cooling or a liquid nitrogen cooling unit. They are suitable for small batches such as pharmaceutical intermediates, lithium battery heat-sensitive powders, and biological samples. In a laboratory, sample integrity is critical. If grinding changes the sample, later analysis becomes unreliable. Low-temperature ball milling helps protect the original properties of the sample. Together, these machine types cover a wide range of heat-sensitive materials, from dry powders to sticky pastes and from industrial production to small-scale research.

What practical advantages do these machines offer compared with ordinary grinding equipment?

The most important advantage is high retention of active ingredients. Compared with ordinary room-temperature grinding, heat-sensitive material grinders can raise the retention rate of active components to more than ninety-five percent. Essential oils and aromatic substances that might lose forty percent of their content in a conventional mill can be reduced to a loss of only three to ten percent. For the pharmaceutical, food, and fragrance industries, this difference directly affects product value. A powder that keeps its active ingredients is worth far more than one that only looks fine.

The second advantage is higher production efficiency. These machines can often process two to three times more material than ordinary grinders of similar size. They also reduce the problem of clogging caused by material that becomes sticky or cakes together after overheating. In a normal mill, heat-sensitive materials may force frequent stops for cooling, or the feed rate may have to be lowered so much that output suffers. A heat-sensitive grinder controls temperature actively, so the process can run more continuously and predictably.

The third advantage is strong adaptability. Different materials have different brittle points and different heat limits. A heat-sensitive grinder can be adjusted to suit the material rather than forcing the material to suit the machine. Some systems use cool air, some use liquid nitrogen, and some use roller cooling. Additional features such as explosion-proof design or antioxidant protection can be added for risky materials. This flexibility means one general type of equipment can be configured for many different production needs.

The fourth advantage is product consistency. A closed-loop temperature control system, combined with precise control of grinding parameters, keeps batch-to-batch differences small. For pharmaceuticals, electronics, and new energy materials, consistency is a strict requirement. If one batch is fine and another batch has different performance because of temperature variation, downstream production can be affected. Heat-sensitive grinders help stabilise both particle size and material properties. This makes them valuable not only for making powder but for making reliable powder.

Where are heat-sensitive material grinders used, and what operating habits keep them effective?

The pharmaceutical industry is one of the most important users. Chinese medicinal herbs and pharmaceutical active ingredients can degrade when heated. Ferulic acid and other heat-sensitive components may lose their effectiveness if the temperature rises too high. Because medicine must meet strict content and stability standards, low-temperature grinding is often necessary. An ordinary mill might reach the required fineness but damage the active ingredient in the process. A heat-sensitive grinder protects both the powder quality and the therapeutic value.

The food industry also depends on these machines. Fruits, vegetables, herbs, starches, and sugars need to keep their nutrients, colours, and natural aromas. Heat can cause aroma loss, colour darkening, and nutritional damage. Heat-sensitive grinding allows these materials to be milled at a lower temperature, so the final product keeps more of its original character. For products such as matcha, spice powders, and fruit and vegetable powders, low-temperature grinding is often a key part of quality control.

Fine chemicals and advanced materials are another major area. Heat-sensitive inks, coatings, adhesives, and thermal silicone materials can cure, discolour, or change performance if they become too hot during grinding. High-viscosity materials are especially difficult because heat is trapped inside the mass. Temperature-controlled three-roll mills and other low-temperature systems help keep the product stable. In research and new material development, biological samples, nucleic acids, proteins, and lithium battery heat-sensitive powders also need low-temperature preparation to avoid denaturation or loss of function.

Operating habits are just as important as equipment design. The temperature, rotor speed, and feed rate should be set according to the material, not left at one fixed setting for everything. Feeding too quickly can overwhelm the cooling system and allow heat to build up. The cooling system must be checked regularly. Coolant level, pipe blockage, air filter condition, and refrigeration unit performance all affect temperature control. If cooling capacity drops, the machine may still run, but the material quality may already be suffering.

Cleaning between different samples is also essential. Residual powder in the grinding chamber, screen, cyclone separator, and collection bottle can contaminate the next batch and affect its thermal behaviour. For pharmaceutical and analytical work, cross-contamination is a serious risk. Wear parts such as blades, liners, rollers, and seals should be inspected on a regular schedule. Worn parts reduce efficiency, increase heat, and make particle size less stable. Keeping records of temperature, speed, feed rate, fineness, and maintenance helps build reliable process settings for each material.

In summary, a heat-sensitive material grinder is not simply a stronger or faster mill. It is a grinding platform built around thermal protection. It lowers heat generation through gentle or non-impact grinding structures, removes heat with active cooling and closed-loop control, and keeps the material inside a safe temperature window throughout the process. The main types include jet mills, liquid nitrogen pulverisers, low-temperature hammer cyclone mills, temperature-controlled three-roll mills, and low-temperature planetary ball mills. Their advantages include high active-ingredient retention, higher throughput, strong adaptability, and consistent product quality. They serve pharmaceuticals, food, fine chemicals, new materials, and laboratory research. With correct parameters, regular cooling-system checks, thorough cleaning, and timely replacement of wear parts, they can deliver fine, uniform powder without sacrificing the properties that make the material valuable. The core value of the heat-sensitive material grinder is therefore simple: it allows difficult materials to be ground while keeping them cool enough to remain themselves.
